WL0F0007000A8GAADSA02-FC

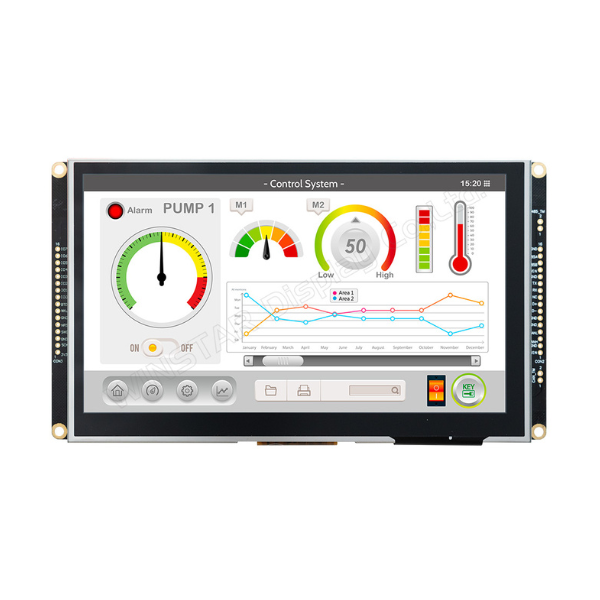

TFT 7" 1024x600, CAN Bus interface with CUSTOMIZABLE CAN ID & GPIO Support, High Brightness 850cd/m², Wide View Angle (IPS), Capacitive touch panel (GG)

DESCRIPTION

NEW 2^nd generation 7” CAN BUS Smart Display which supports CUSTOMIZABLE CAN ID messages and GPIO functions.

+12V power supply input with 8V to 35V dynamic range power input, the power consumption is around 6 Watt.
Self-testing after booting function.
CAN bus communication interface.
Supports Custom CAN ID protocol, default baud rate is 250Kbps.
Built in 16MB external flash memory to store the font and Object Dictionary Data.
Support capacitive touch panel (CTP).
Build in buzzer and can be controlled by Master Device.
Demo set HOST can be used on multiple platforms, such as Computer (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2).
GPIO PIN support with 3.3V TTL, max 5.5V tolance.
Design the UI without writing a line of code by Winstar GUI builder! (►Link to GUI Builder Introduction)

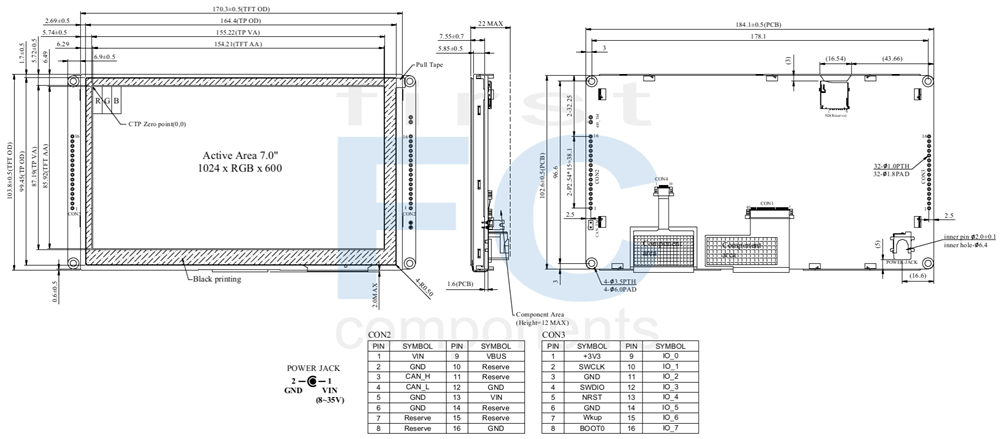

DRAWING

SPECIFICATIONS

General Specifications

General information

Item	Standard Value	Unit
Operating voltage	8~35	Vdc
Communication Interface	CAN bus	--
MCU	STM32F746	N/A
Flash Memory	16	MB
SDRAM Frequency	100	MHz
LCD display size	7.0	inch
Dot Matrix	1024 x RGB x 600(TFT)	dot
Module dimension	184.1(W) x 103.8(H) x 22(D)	mm
Active area	154.2144 x 85.92	mm
Pixel pitch	0.1506 x 0.1432	mm
Brightness	Min: 800; Typ: 850	cd/m2
LCD type	TFT, Normally Black, Transmissive
View Direction	85/85/85/85
Aspect Ratio	16:9
With/Without TP	With CTP
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VIN	-	8	12	35	V
Supply Current	I(mA)	-	-	490	-	mA

BOM

Item	Description
LCM	WF70-1024600A8L#BSP3-FC
PCBA	SV10007R00A8C00N0103

Interface Pin Function

CON2 definition:

Pin	Symbol	Function	Remark
1	VIN	Power supply V+	Input
2	GND	Power supply GND input	Input
3	CAN_H	CAN bus D+	I/O
4	CAN_L	CAN bus D-	I/O
5	GND	Power supply GND input	Input
6	GND	Power supply GND input	Input
7	Reserve	-	-
8	Reserve	-	-
9	VBUS	-	-
10	Reserve	UART RX interface (Reserve)	Reserve
11	Reserve	UART TX interface (Reserve)	Reserve
12	GND	GND	GND
13	VIN	-	-
14	Reserve	-	-
15	Reserve	-	-
16	GND	GND	GND

CON3 definition:

Pin	Symbol	Function	Remark
1	+3V3	3.3V power for JTAG interface	Output
2	SWCLK	CLK pin for JTAG interface	Input
3	GND	GND for JTAG interface	Output
4	SWDIO	Data pin fot JTAG interface	I/O
5	NRST	Reset pin for JTAG interface	Input
6	GND	Power GND	Output
7	WKUP	WKup,ADC,Timer,Event,I/O	Input
8	BOOT0	Lo: Internal flash boot (Default) Hi: External flash boot	Input
9	IO0	ADC,DAC,Timer,Event,I/O @3.3V	I/O
10	IO1	ADC,Timer,Event,I/O @3.3V	I/O
11	IO2	ADC,Timer,Event,I/O @3.3V	I/O
12	IO3	ADC,Timer,Event,I/O @3.3V	I/O
13	IO4	ADC,Timer,Event,I/O @3.3V	I/O
14	IO5	ADC,Timer,Event,I/O @3.3V	I/O
15	IO6	ADC,Timer,Event,I/O @3.3V	I/O
16	IO7	RST,ADC,Event,I/O @3.3V	I/O

Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode.

The Display is designed to be easily connected to a controller network, and to operate with minimum setup or knowledge of the SDO configuration on the controllers.

Splash Screen

The default splash image is shown below.

Schermata iniziale

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.

Default Selection

Press the preferred application and hold for 3 seconds for the first time power on.

Default Selection

Example Screen Layout

Example Layout (Industry application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a industry application situation.

Esempio di layout dello schermo (Industria) - WL0F00050000FGAAASA01-FC

Example Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.

Esempio di layout dello schermo (Settore medico) - WL0F00050000FGAAASA01

Example Screen Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

Esempio di layout dello schermo (Settore automobilistico) - WL0F00050000FGAAASA01

SKU: WL0F0007000A8GAADSA02-FC

Brand: Winstar

Available: Yes
