    WL0F0007000A8GAAFSA02-FC

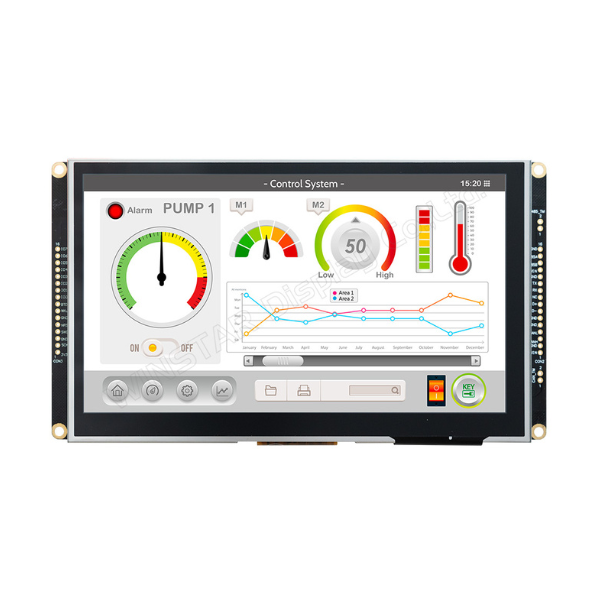

    TFT 7" 1024x600, CAN Bus interface with CUSTOMIZABLE CAN ID & GPIO Support, High Brightness 850cd/m², Wide View Angle (IPS), Capacitive touch panel (GG) (Optimized PCB Design)
    Manufacturer: Winstar
    SKU: WL0F0007000A8GAAFSA02-FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €127.60
    €114.80
    €107.90

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €127.60 excl tax
    i h

    DESCRIPTION

    NEW 2nd generation 7” CAN BUS Smart Display which supports CUSTOMIZABLE CAN ID messages and GPIO functions.

    1.        +12V power supply input with 8V to 35V dynamic range power input, the power consumption is around 6 Watt.
    2.        Self-testing after booting function.
    3.        CAN bus communication interface.
    4.        Supports Custom CAN ID protocol, default baud rate is 250Kbps.
    5.        Built in 16MB external flash memory to store the font and Object Dictionary Data.
    6.        Support capacitive touch panel (CTP).
    7.        Build in buzzer and can be controlled by Master Device.

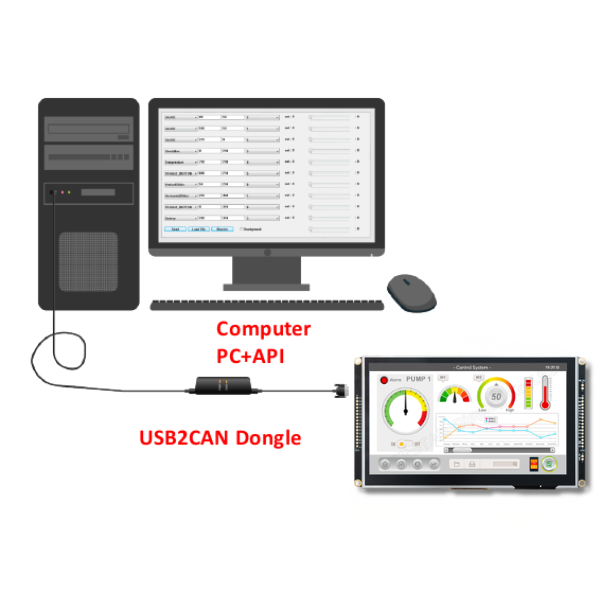

    8.        Demo set HOST can be used on multiple platforms, such as Computer (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2).
    9.        GPIO PIN support with 3.3V TTL, max 5.5V tolance.
    10.        Design the UI without writing a line of code by Winstar GUI builder! (►Link to GUI Builder Introduction)



    DRAWING

    SPECIFICATIONS

    General Specifications

    General information

    ItemStandard ValueUnit
    Operating voltage 8~35 Vdc
    Communication Interface CAN bus --
    MCU STM32F746 N/A
    Flash Memory 16 MB
    SDRAM Frequency 100 MHz
    LCD display size 7.0 inch
    Dot Matrix 1024 x RGB x 600(TFT) dot
    Module dimension 184.1(W) x 103.8(H) x 22(D) mm
    Active area 154.2144 x 85.92 mm
    Pixel pitch 0.1506 x 0.1432 mm
    Brightness Min: 800; Typ: 850 cd/m2
    LCD type TFT, Normally Black, Transmissive
    View Direction 85/85/85/85
    Aspect Ratio 16:9
    With/Without TP With CTP
    Surface Glare


    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃


    Electrical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage VIN - 8 12 35 V
    Supply Current I(mA) - - 490 - mA


    BOM

    ItemDescription
    LCM WF70-­1024600A8L#BSP3­-FC
    PCBA SV10007R00A8C00N0103



    Interface Pin Function

    CON2 definition:

    PinSymbolFunctionRemark
    1 VIN Power supply V+ Input
    2 GND Power supply GND input Input
    3 CAN_H CAN bus D+ I/O
    4 CAN_L CAN bus D- I/O
    5   GND Power supply GND input Input
    6 GND Power supply GND input Input
    7 Reserve - -
    8 Reserve - -
    9 VBUS - -
    10 Reserve UART RX interface (Reserve) Reserve
    11 Reserve UART TX interface (Reserve) Reserve
    12 GND GND GND
    13 VIN - -
    14 Reserve - -
    15 Reserve - -
    16 GND GND GND



    CON3 definition:

    PinSymbolFunctionRemark
    1 +3V3 3.3V power for JTAG interface Output
    2 SWCLK CLK pin for JTAG interface Input
    3 GND GND for JTAG interface Output
    4 SWDIO Data pin fot JTAG interface I/O
    5   NRST Reset pin for JTAG interface Input
    6 GND Power GND Output
    7 WKUP WKup,ADC,Timer,Event,I/O Input
    8 BOOT0 Lo: Internal flash boot (Default)
    Hi: External flash boot
    Input
    9 IO0 ADC,DAC,Timer,Event,I/O @3.3V I/O
    10 IO1 ADC,Timer,Event,I/O @3.3V I/O
    11 IO2 ADC,Timer,Event,I/O @3.3V I/O
    12 IO3 ADC,Timer,Event,I/O @3.3V I/O
    13 IO4 ADC,Timer,Event,I/O @3.3V I/O
    14 IO5 ADC,Timer,Event,I/O @3.3V I/O
    15 IO6 ADC,Timer,Event,I/O @3.3V I/O
    16 IO7 RST,ADC,Event,I/O @3.3V I/O



    Display Usage

    Functional description

    Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode.

    The Display is designed to be easily connected to a controller network, and to operate with minimum setup or knowledge of the SDO configuration on the controllers.

    Splash Screen

    The default splash image is shown below.

    Schermata iniziale

    This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.

    Default Selection

    Press the preferred application and hold for 3 seconds for the first time power on.

    Default Selection

    Example Screen Layout

    Example Layout (Industry application)

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a industry application situation.

    Esempio di layout dello schermo (Industria) - WL0F00050000FGAAASA01-FC



    Example Layout (Vehicle automotive)

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.

    Esempio di layout dello schermo (Settore medico) - WL0F00050000FGAAASA01



    Example Screen Layout (Medical application)

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

    Esempio di layout dello schermo (Settore automobilistico) - WL0F00050000FGAAASA01

    EVALUATION KIT

    Evaluation Kit P/N WWSSDEMO70A8-AA-33#001 available at the links:

    ITA: https://www.first-components.com/it/wwssdemo70a8-aa-33001

    ENG: https://www.first-components.com/en/wwssdemo70a8-aa-33001

    Products specifications
    Size 7"
    Resolution 1024x600
    Active Area (mm) 154.21x85.92
    Color Full Color
    Power supply 12V
    Display Interface CAN Bus + GPIO
    View Angle IPS
    Sunlight Readable High 601~1200cd/m²
    Frame Yes
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
