Today we introduce the new Winstar's Smart Display family featuring expanded 32MB Flash memory, designed for advanced graphical interfaces and high-complexity industrial environments.
These Smart Displays integrate IPS TFT Technology, capacitive touch and an embedded STM32F* MCU, delivering a complete HMI solution that significantly reduces development time thanks to no-code UI design using WINSTAR GUI Builder or STMicroelectronics graphic development environments.
The new models with extended 32MB Flash memory enable the creation of richer, more responsive and highly scalable user interfaces, making them an ideal solution for complex HMI applications.
Would you like to learn more about Winstar Smart Displays and understand whether they are the right solution for your project?
More memory, more development flexibility
The new Winstar Smart Display modules with 32MB Flash further expand development possibilities compared to previous versions.
Key platform features:
🔸 32MB external flash for fonts, images and object data
🔸 Dynamic memory allocation for efficient resource management
🔸 Up to 255 objects, 1000 total objects and 64 pages
🔸 Integrated STM32F* series MCU with embedded firmware
🔸 Support for CAN, RS485 and UART communication
🔸 IPS TFT displays with wide viewing angles and PCAP touch
🔸 Compatible with WINSTAR GUI Builder, TouchGFX, STM32CubeIDE, STM32CubeMX and STM32CubeProg
🔸 Flexible host options: PC, MCU or Raspberry Pi
Compared to 16MB versions, the 32MB platform allows for more complex graphical interfaces, smoother user interaction and greater scalability for future upgrades.
Below is the list of Winstar Smart Display models with 32MB Flash memory currently available:

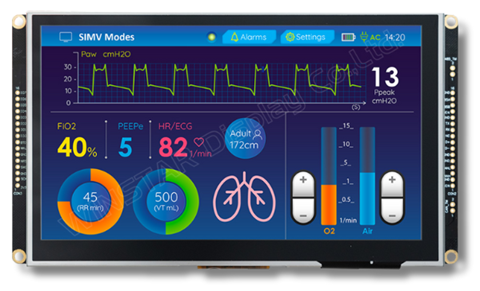

7” Smart Display 1024 × 600 – Open Frame
Compact models for direct panel or cabinet integration, available in three communication interface variants, all featuring GPIO outputs:
 |
🔹 CAN BUS interface with CUSTOM CAN ID P/N: WL0F0007000A8GAADSA05-FC 🔹 RS485 ModBus interface P/N: WL0F0007000A8GDACSA01-FC 🔹 UART interface P/N: WL0F0007000A8GFAASA01-FC |

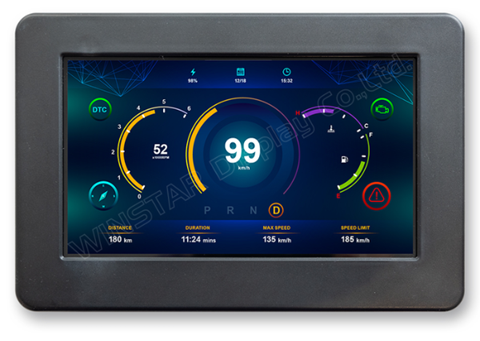

7” Smart Display 1024 × 600 – IP54 Housing
Protected version for industrial and light outdoor applications, available with CAN Bus interface and GPIO outputs:
|
|
 |

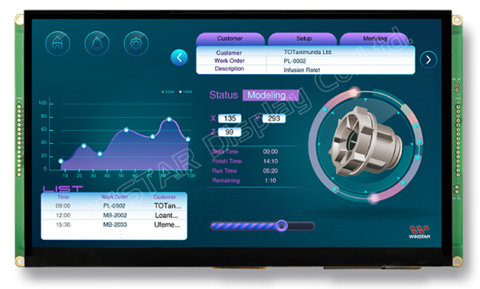

10.1” Smart Display 1024 × 600 – Large Format HMI
 |
🔹 CAN BUS interface with CUSTOM CAN ID P/N: WL0F00101000JGAACSA05-FC 🔹 RS485 ModBus interface P/N: WL0F00101000JGDAESA02-FC 🔹 UART interface P/N: WL0F00101000JGFAASA01-FC |
Ready to be tested!
FIRST Components provides Evaluation Kits to support the evaluation of Winstar Smart Displays
and real-time GUI simulation.
Upon request, the hardware can be customized to meet specific project requirements, both in terms of
interfaces and configuration.
For more technical information contact us at [email protected].
To request a dedicated quote for your project, reach out to our experienced sales team
at [email protected].
