WL0F00035000XGAACSA00-FC

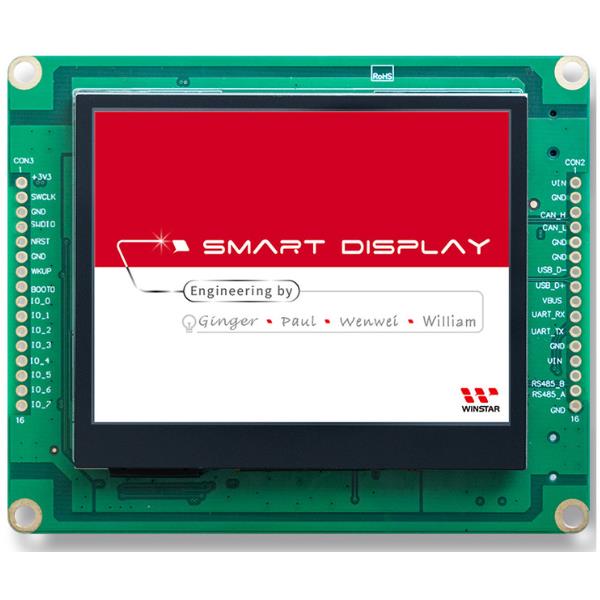

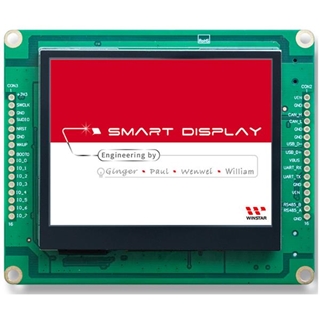

Picture of WL0F00035000XGAACSA00-FC Picture of WL0F00035000XGAACSA00-FC
TFT 3.5" 320x240, CAN Bus interface with CUSTOMIZABLE CAN ID & GPIO Support, 400cd/m², Wide View Angle (IPS), Super extended temperature, Capacitive touch panel (GG)

DESCRIPTION

NEW 2nd generation 3.5” CAN BUS Smart Display which supports CUSTOMIZABLE CAN ID messages and GPIO functions.

  1.      Self-testing after booting function.
  2.      CAN bus communication interface.
  3.      Supports CUSTOM CAN ID protocol, default baud rate at 250KB.
  4.      Built in flash memory, store the font and Object Dictionary Data.
  5.      Supports GPIO functions.
  6.      Support capacitive touch panel(CTP).
  7.      Smart Display scenario is slave device display and action from Master Device instruction.
  8.      Embedded buzzer controlled by Master Device.
  9.      Demo set HOST can be used on multiple platforms, such as Computer (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2).
  10.      Design the UI without writing a line of code by winstar GUI builder! (►Link to GUI Builder Introduction)



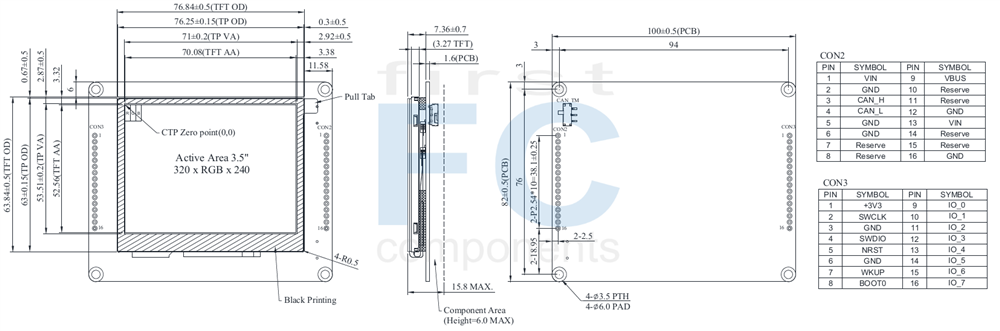

DRAWING

SPECIFICATIONS

General Specifications

ItemStandard ValueUnit
Operating voltage 5 ~ 28 Vdc
Communication Interface CAN bus differential --
MCU STM32F750 N/A
Flash Memory 16 MB
SDRAM Frequency 8 MB
LCD display size 3.5 inch
Dot Matrix 320× 3(RGB) × 240 dot
Module dimension 100(W) x 82(H) x 13.2(D) mm
Active area 70.08(W) x 52.56(H) mm
Pixel pitch 0.219 x 0.219 mm
Brightness Min: 300; Typ: 400 cd/m2
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80(IPS)
Aspect Ratio 4:3
Touch Panel With CTP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Supply Voltage VIN 5 12 28 V
Supply Current ICC - 150 - mA



BOM

ItemDescription
LCM WF35-320240XD#0PW3-FC
PCBA PB1V0003R500XA461XX0



Interface Pin Function

CON2 definition:

PinSymbolFunctionRemark
1 VIN Power +5V~28V Input
2 GND Power GND ---
3 CAN_H CAN bus D+ I/O
4 CAN_L CAN bus D- I/O
5-16 Reserved -- --


CON3 definition:

PinSymbolFunctionRemark
1 +3V3 3.3V power for JTAG interface Output
2 SWCLK CLK pin for JTAG interface Input
3 GND GND for JTAG interface Output
4 SWDIO Data pin for JTAG interface I/O
5 NRST Reset pin for JTAG interface Input
6 GND Power GND -
7 WKUP WKup, ADC, Timer, Even, I/O Inpunt
8 BOOT0

Lo: Internal flash boot (Default)

Hi: External flash book

 Inpunt
9 IO_0 ADC, DAC, Timer, Event, I/O @3.3V I/O
10

IO_1

 ADC, Timer, Event, I/O @3.3V I/O
11 IO_2 ADC, Timer, Event, I/O @3.3V I/O
12 IO_3 RST, Timer, Event, I/O @3.3V I/O
13 IO_4 RST, Timer, Event, I/O @3.3V I/O
14 IO_5 ADC, Timer, Event, I/O @3.3V I/O
15 IO_6 RST, Timer, Event, I/O @3.3V I/O
16 IO_7 RST, Timer, Event, I/O @3.3V I/O



Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode.

The Display is designed to be easily connected to a controller network, and to operate with minimum setup or knowledge of the SDO configuration on the controllers.

Splash Screen

The default splash image is shown below.

Schermata iniziale

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.

Default Selection

Press the preferred application and hold for 3 seconds for the first time power on.

Default Selection



Example Screen Layout

Example Layout (Industry application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a industry application situation.

Esempio di layout dello schermo (Industria) - WL0F00050000FGAAASA01-FC



Example Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.

Esempio di layout dello schermo (Settore medico) - WL0F00050000FGAAASA01



Example Screen Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

Esempio di layout dello schermo (Settore automobilistico) - WL0F00050000FGAAASA01





SKU: WL0F00035000XGAACSA00-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
Price
€74.30
€66.90
€62.10

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€74.30 excl tax

DESCRIPTION

NEW 2nd generation 3.5” CAN BUS Smart Display which supports CUSTOMIZABLE CAN ID messages and GPIO functions.

  1.      Self-testing after booting function.
  2.      CAN bus communication interface.
  3.      Supports CUSTOM CAN ID protocol, default baud rate at 250KB.
  4.      Built in flash memory, store the font and Object Dictionary Data.
  5.      Supports GPIO functions.
  6.      Support capacitive touch panel(CTP).
  7.      Smart Display scenario is slave device display and action from Master Device instruction.
  8.      Embedded buzzer controlled by Master Device.
  9.      Demo set HOST can be used on multiple platforms, such as Computer (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2).
  10.      Design the UI without writing a line of code by winstar GUI builder! (►Link to GUI Builder Introduction)



DRAWING

SPECIFICATIONS

General Specifications

ItemStandard ValueUnit
Operating voltage 5 ~ 28 Vdc
Communication Interface CAN bus differential --
MCU STM32F750 N/A
Flash Memory 16 MB
SDRAM Frequency 8 MB
LCD display size 3.5 inch
Dot Matrix 320× 3(RGB) × 240 dot
Module dimension 100(W) x 82(H) x 13.2(D) mm
Active area 70.08(W) x 52.56(H) mm
Pixel pitch 0.219 x 0.219 mm
Brightness Min: 300; Typ: 400 cd/m2
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80(IPS)
Aspect Ratio 4:3
Touch Panel With CTP
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +80 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Supply Voltage VIN 5 12 28 V
Supply Current ICC - 150 - mA



BOM

ItemDescription
LCM WF35-320240XD#0PW3-FC
PCBA PB1V0003R500XA461XX0



Interface Pin Function

CON2 definition:

PinSymbolFunctionRemark
1 VIN Power +5V~28V Input
2 GND Power GND ---
3 CAN_H CAN bus D+ I/O
4 CAN_L CAN bus D- I/O
5-16 Reserved -- --


CON3 definition:

PinSymbolFunctionRemark
1 +3V3 3.3V power for JTAG interface Output
2 SWCLK CLK pin for JTAG interface Input
3 GND GND for JTAG interface Output
4 SWDIO Data pin for JTAG interface I/O
5 NRST Reset pin for JTAG interface Input
6 GND Power GND -
7 WKUP WKup, ADC, Timer, Even, I/O Inpunt
8 BOOT0

Lo: Internal flash boot (Default)

Hi: External flash book

 Inpunt
9 IO_0 ADC, DAC, Timer, Event, I/O @3.3V I/O
10

IO_1

 ADC, Timer, Event, I/O @3.3V I/O
11 IO_2 ADC, Timer, Event, I/O @3.3V I/O
12 IO_3 RST, Timer, Event, I/O @3.3V I/O
13 IO_4 RST, Timer, Event, I/O @3.3V I/O
14 IO_5 ADC, Timer, Event, I/O @3.3V I/O
15 IO_6 RST, Timer, Event, I/O @3.3V I/O
16 IO_7 RST, Timer, Event, I/O @3.3V I/O



Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode.

The Display is designed to be easily connected to a controller network, and to operate with minimum setup or knowledge of the SDO configuration on the controllers.

Splash Screen

The default splash image is shown below.

Schermata iniziale

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.

Default Selection

Press the preferred application and hold for 3 seconds for the first time power on.

Default Selection



Example Screen Layout

Example Layout (Industry application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a industry application situation.

Esempio di layout dello schermo (Industria) - WL0F00050000FGAAASA01-FC



Example Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.

Esempio di layout dello schermo (Settore medico) - WL0F00050000FGAAASA01



Example Screen Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

Esempio di layout dello schermo (Settore automobilistico) - WL0F00050000FGAAASA01





Products specifications
Brand Winstar
Size 3.5"
Resolution 320x240
Active Area (mm) 70.08x52.56
Color Full Color
Power supply 12V
Display Interface CAN Bus + GPIO
View Angle IPS
Frame Yes
Touch Panel Capacitive
O. Temperature (°C) -30~80
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 3.5"
Resolution 320x240
Active Area (mm) 70.08x52.56
Color Full Color
Power supply 12V
Display Interface CAN Bus + GPIO
View Angle IPS
Frame Yes
Touch Panel Capacitive
O. Temperature (°C) -30~80
Preferred - Not Preferred Preferred
