WWSSDEMO35X-AA-31#000

Eval kit for TFT 3.5" 320x240, CAN Bus interface with CUSTOMIZABLE CAN ID & GPIO function, 400cd/m², Wide View Angle (IPS), Super extended temperature, Capacitive touch panel (GG)

DESCRIPTION

Smart Display Demo set list：

1. Leaflet

2. Smart Display

3. USB2CAN Dongle

4. USB to MicroUSB Cable

5. Short Cable between USB2CAN and Smart Display

NEW 2^nd generation 3.5” CAN BUS Smart Display which supports CUSTOMIZABLE CAN ID messages and GPIO functions.

Self-testing after booting function.
CAN bus communication interface.
Supports CUSTOM CAN ID protocol, default baud rate at 250KB.
Built in flash memory, store the font and Object Dictionary Data.
Supports GPIO functions.
Support capacitive touch panel(CTP).
Smart Display scenario is slave device display and action from Master Device instruction.
Embedded buzzer controlled by Master Device.

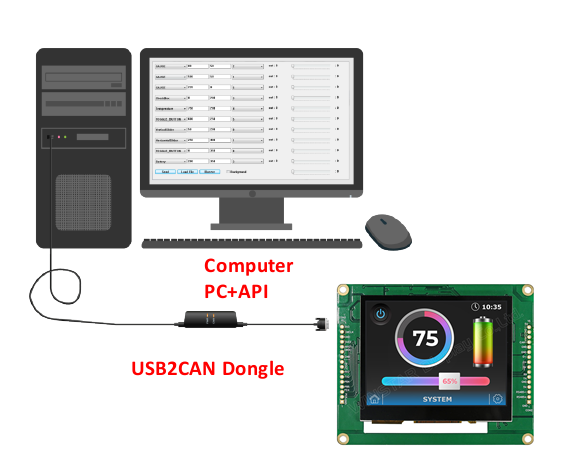

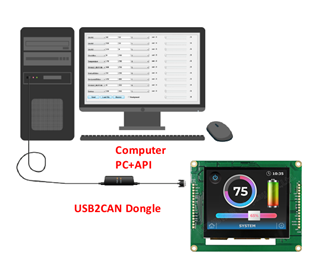

Demo set HOST can be used on multiple platforms, such as Computer (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2).
Design the UI without writing a line of code by winstar GUI builder! (►Link to GUI Builder Introduction)

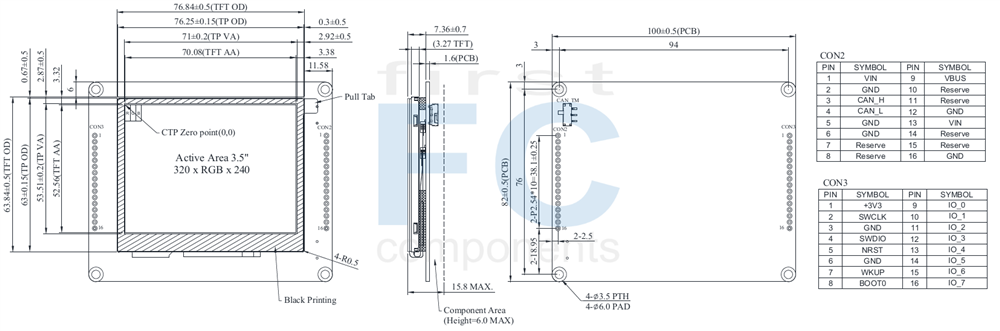

DRAWING

SPECIFICATIONS

General Specifications

Item	Standard Value	Unit
Operating voltage	5 ~ 28	Vdc
Communication Interface	CAN bus differential	--
MCU	STM32F750	N/A
Flash Memory	16	MB
SDRAM Frequency	8	MB
LCD display size	3.5	inch
Dot Matrix	320× 3(RGB) × 240	dot
Module dimension	100(W) x 82(H) x 13.2(D)	mm
Active area	70.08(W) x 52.56(H)	mm
Pixel pitch	0.219 x 0.219	mm
Brightness	Min: 300; Typ: 400	cd/m2
LCD type	TFT, Normally Black, Transmissive
View Direction	80/80/80/80(IPS)
Aspect Ratio	4:3
Touch Panel	With CTP
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-30	－	+80	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Min	Typ	Max	Unit
Supply Voltage	VIN	5	12	28	V
Supply Current	ICC	-	150	-	mA

BOM

Item	Description
LCM	WF35-320240XD#0PW3-FC
PCBA	PB1V0003R500XA461XX0

Interface Pin Function

CON2 definition:

Pin	Symbol	Function	Remark
1	VIN	Power +5V~28V	Input
2	GND	Power GND	---
3	CAN_H	CAN bus D+	I/O
4	CAN_L	CAN bus D-	I/O
5-16	Reserved	--	--

CON3 definition:

Pin	Symbol	Function	Remark
1	+3V3	3.3V power for JTAG interface	Output
2	SWCLK	CLK pin for JTAG interface	Input
3	GND	GND for JTAG interface	Output
4	SWDIO	Data pin for JTAG interface	I/O
5	NRST	Reset pin for JTAG interface	Input
6	GND	Power GND	-
7	WKUP	WKup, ADC, Timer, Even, I/O	Inpunt
8	BOOT0	Lo: Internal flash boot (Default) Hi: External flash book	Inpunt
9	IO_0	ADC, DAC, Timer, Event, I/O @3.3V	I/O
10	IO_1	ADC, Timer, Event, I/O @3.3V	I/O
11	IO_2	ADC, Timer, Event, I/O @3.3V	I/O
12	IO_3	RST, Timer, Event, I/O @3.3V	I/O
13	IO_4	RST, Timer, Event, I/O @3.3V	I/O
14	IO_5	ADC, Timer, Event, I/O @3.3V	I/O
15	IO_6	RST, Timer, Event, I/O @3.3V	I/O
16	IO_7	RST, Timer, Event, I/O @3.3V	I/O

Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode.

The Display is designed to be easily connected to a controller network, and to operate with minimum setup or knowledge of the SDO configuration on the controllers.

Splash Screen

The default splash image is shown below.

Schermata iniziale

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.

Default Selection

Press the preferred application and hold for 3 seconds for the first time power on.

Default Selection

Example Screen Layout

Example Layout (Industry application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a industry application situation.

Esempio di layout dello schermo (Industria) - WL0F00050000FGAAASA01-FC

Example Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.

Esempio di layout dello schermo (Settore medico) - WL0F00050000FGAAASA01

Example Screen Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

Esempio di layout dello schermo (Settore automobilistico) - WL0F00050000FGAAASA01

SKU: WWSSDEMO35X-AA-31#000

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Added Accessory 1

€193.20 excl tax
