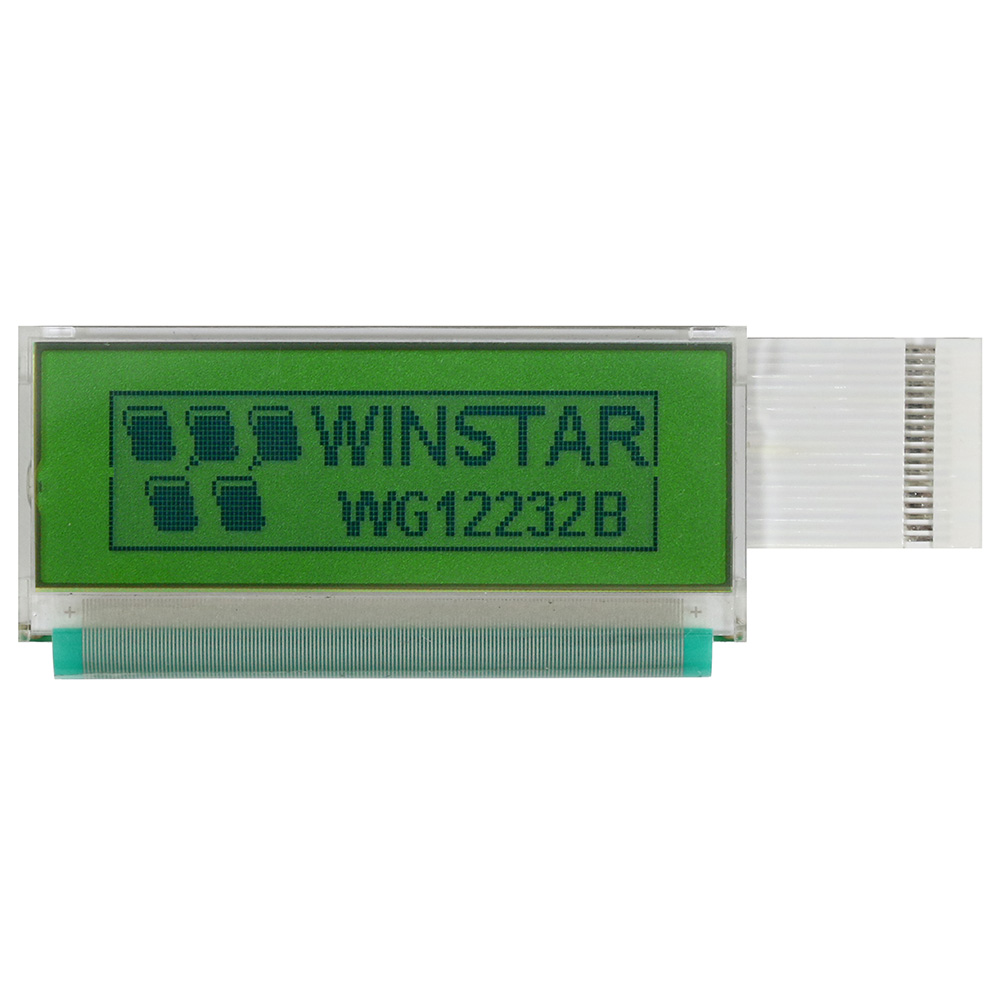

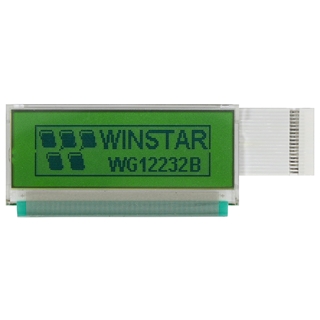

WG12232B-YYH-N#A

Graphic LCD 2" 122x32, B/L yellow/green, STN yellow/green pos, Transflective, COB, 5V, Interface 6800, 6 O'clock, No VNEG (FPC x Soldering), IC SBN1661G

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



MOQ

After sample PO, MP MOQ 1K



DESCRIPTION

WG12232B is a monochrome 122x32 LCD graphic display module which is having the outline size 65.4 x 28.32 mm and VA size of 54.8 x 19 mm. This 122x32 LCD graphic display is built in with SBN1661G controller IC or compatible controller.  It supports 6800 8-bit parallel interface and supports 5V power supply only.  The LCD layout of WG12232B and WG12232G are different, if customers require no space between upper LCD portion and bottom LCD portion, please choose WG12232G type.


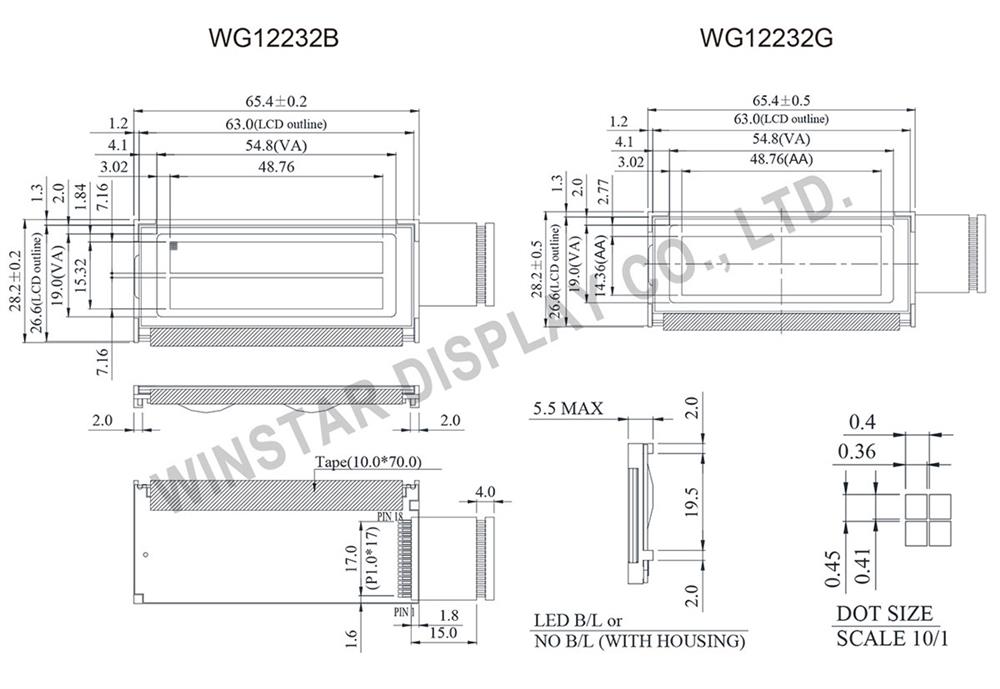

DRAWING

122 x 32 LCD Graphic Display Module, Winstar 122x32 LCD

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VDD Power supply for logic
2 VSS Ground
3 VO Contrast Adjustment
4 RES Controller reset signal, Active Low
5 E1 Enable signal
6 E2 Enable signal
7 R/W Read/Write select signal
8 A0 Data/ Instruction  select signal
9~16 DB0~DB7 Data bus line
17 A Power supply for B/L +
18 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 65.4 × 28.2 mm
Viewing Area 54.8 × 19.0 mm
Dot Pitch 0.4 × 0.45 mm
Dot Size 0.36 × 0.41 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recmmended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.70 V
SKU: WG12232B-YYH-N#A
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€15.20
€11.20
€10.70
€10.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€15.20 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



MOQ

After sample PO, MP MOQ 1K



DESCRIPTION

WG12232B is a monochrome 122x32 LCD graphic display module which is having the outline size 65.4 x 28.32 mm and VA size of 54.8 x 19 mm. This 122x32 LCD graphic display is built in with SBN1661G controller IC or compatible controller.  It supports 6800 8-bit parallel interface and supports 5V power supply only.  The LCD layout of WG12232B and WG12232G are different, if customers require no space between upper LCD portion and bottom LCD portion, please choose WG12232G type.


DRAWING

122 x 32 LCD Graphic Display Module, Winstar 122x32 LCD

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VDD Power supply for logic
2 VSS Ground
3 VO Contrast Adjustment
4 RES Controller reset signal, Active Low
5 E1 Enable signal
6 E2 Enable signal
7 R/W Read/Write select signal
8 A0 Data/ Instruction  select signal
9~16 DB0~DB7 Data bus line
17 A Power supply for B/L +
18 K Power supply for B/L -



Mechanical Data

ItemStandard ValueUnit
Module Dimension 65.4 × 28.2 mm
Viewing Area 54.8 × 19.0 mm
Dot Pitch 0.4 × 0.45 mm
Dot Size 0.36 × 0.41 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.
Unit
Input Voltage VDD 5.0 V
Recmmended LCD Driving
Voltage for Normal Temp.
Version module @25°C
VDD-VO 4.70 V
Products specifications
Brand Winstar
Size 2"
Resolution 122x32
Active Area (mm) 48.76x15.32
Dot Size 0.36x0.41
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Display Interface 6800
Display IC SBN1661G
Constructive Structure COB
View Angle 6H
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for Soldering
Pin Nr. 18
Pin Pitch 1mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 2"
Resolution 122x32
Active Area (mm) 48.76x15.32
Dot Size 0.36x0.41
B/L color, LCD type B/L yellow/green, STN yellow/green pos
Power supply 5V
Display Interface 6800
Display IC SBN1661G
Constructive Structure COB
View Angle 6H
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for Soldering
Pin Nr. 18
Pin Pitch 1mm
Preferred - Not Preferred Not Preferred
