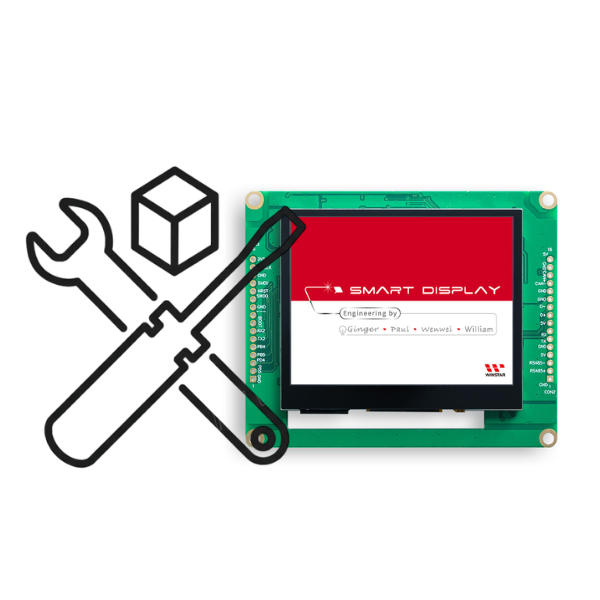

    Eval Kit for TFT 3.5" 320x240, RS485 ModBus interface & GPIO Support, 400cd/m², Wide View Angle (IPS), Super extended temperature, Capacitive touch panel (GG)
    Manufacturer: Winstar
    SKU: WWSSDEMO35X-DA-11#000

    Accessory kit

    Availability: In stock
    €123.70 excl tax
    i h

    DESCRIPTION

        Link to 'SMART GUI BUILDER' INTRODUCTION & VIDEO

    WL0F00035000XGDACSA00-FC is a 3.5-inch RS485 Smart Display with a projected capacitive touch panel (PCAP). It adopts WINSTAR’s WF35-320240XD#0PW3-FC wide-temperature IPS TFT LCD module and integrates a controller board with firmware for GUI development and RS485 communication.

    WINSTAR GUI Builder is the main development tool for this Smart Display, allowing users to create UI pages and object settings through a drag-and-drop interface without coding. The module is suitable for single-host architectures using an MCU, Raspberry Pi, industrial controller, or PC-based RS485 communication with a USB-to-RS485 dongle.



    3.5-inch RS485 Smart Display Features

    • Input voltage range from 5V to 28V, 12V typical
    • RS485 communication interface
    • Projected capacitive touch panel (PCAP)
    • Built-in 16MB external flash memory for font and Object Dictionary data storage
    • Built-in buzzer, controllable by the host device
    • GPIO pin support
    • Self-test function after boot-up
    • Design the UI without writing a line of code by WINSTARGUI builder! (►Link to GUI Builder Introduction)
    • Power input polarity diode protection

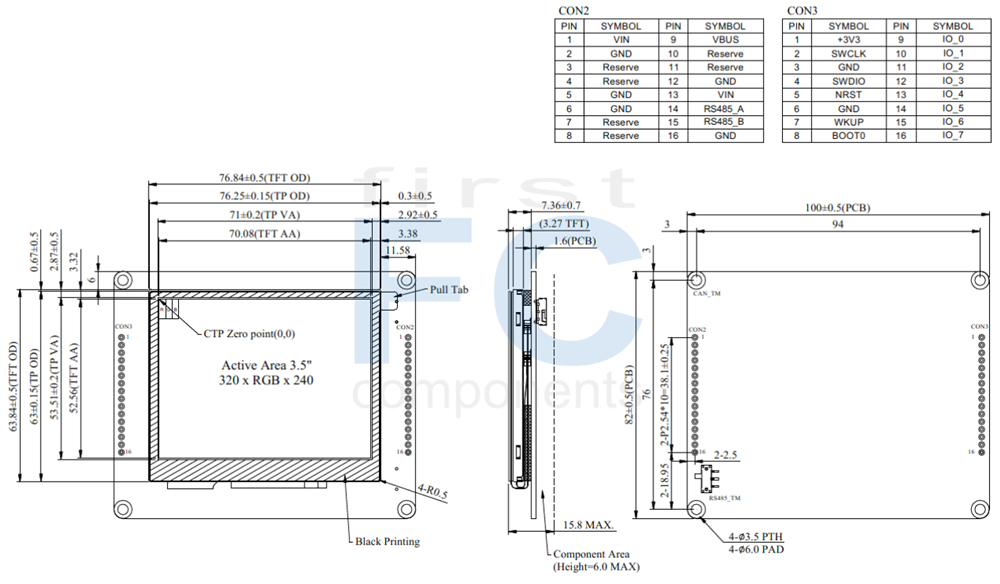

    DRAWING



    SPECIFICATIONS

    General Specifications

    ItemStandard ValueUnit
    Operating voltage 5 ~ 28 Vdc
    Communication Interface RS485 N/A
    MCU STM32F750 N/A
    Flash Memory 16 MB
    SDRAM Memory 8 MB
    LCD display size 3.5 inch
    Dot Matrix 320 × 3(RGB) × 240 dot
    Module dimension 100(W) × 82(H) × 13.2(D) mm
    Active area 70.08(W) × 52.56(H) mm
    Pixel pitch 0.219 x 0.219 mm
    Brightness Min: 300; Typ: 400 cd/m2
    LCD type TFT, Normally Black, Transmissive
    View Direction 80/80/80/80(IPS)
    Aspect Ratio 4:3
    Touch Panel Projected Capacitive Touch Screen (PCAP)
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -30 - +80 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    ItemSymbolMinTypMaxUnit
    Supply Voltage VIN 5 12 28 V
    Supply Current ICC - 150 - mA
    I/O pin Voltage - - - 3.3 mA



    BOM

    ItemDescription
    LCM WF35-320240XD#0PW3-FC
    PCBA SV10003R500XA00N0103



    Interface Pin Function

    CON2 definition:

    PinSymbolFunctionRemark
    1 VIN Power +5V~28V Input
    2 GND Power GND --
    3-13 Reserved -- --
    14 RS485_B RS485 B I/O
    15 RS485_A RS485 A I/O
    16 GND Power GND --


    CON3 definition:

    PinSymbolFunctionRemark
    1 +3V3 3.3V power for JTAG interface Output
    2 SWCLK CLK pin for JTAG interface Input
    3 GND GND for JTAG interface --
    4 SWDIO Data pin for JTAG interface I/O
    5 NRST Reset pin for JTAG interface Input
    6 GND Power GND --
    7 WKUP WKup,ADC,Timer,Event,I/O Input
    8 BOOT0 Lo: Internal flash boot (Default)
    Hi: External flash boot

    Input
    9 IO_0 ADC,DAC,Timer,Event,I/O @3.3V I/O
    10 IO_1 ADC,Timer,Event,I/O @3.3V I/O
    11 IO_2 ADC,Timer,Event,I/O @3.3V I/O
    12 IO_3 RST,Timer,Event,I/O @3.3V I/O
    13 IO_4 RST,Timer,Event,I/O @3.3V I/O
    14 IO_5 ADC,Timer,Event,I/O @3.3V I/O
    15 IO_6 RST,Timer,Event,I/O @3.3V I/O
    16 IO_7 RST,ADC,Event,I/O @3.3V I/O


    Display Usage

    Functional description

    Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode

    The Display is designed to be easily connected to a controller network, and to use the register type of Holding Register.


    Splash Screen

    The default splash image is shown below.

    This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss


    Default Selection

    Press the preferred application and hold for 3 seconds for the first time power on.

    Winstar's Smart Display Default Selection


    Acquisition of Displayed Data

    Smart Display uses the Modbus protocol to get and send the data.

    On Config mode, customers can set the coordinates or type of objects; On Display mode, customers can send and get data of objects.


    Configuring the Display

    Winstar Smart Display RS-485 series offers an out-of-the-box Modbus development experience that will lower customers' development costs and speed time-to-market expectations.

    The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas.

    The Smart Display comes with standard UI objects to get customers project off the ground quickly. If customers need custom UI objects support, our engineers are here to help. Send over your contents in PNG/JPG format, we will send over a new set of UI objects within 3~5 working days.

    The Smart Display is defined as a slave device, which is controlled by master device via RS-485 command to render display content on the display screen and return touch event data with protocol objects.



    Example Screen Layout (Industry application)

    Example Layout

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in an industry application situation.


    Example Layout (Vehicle automotive)

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.


    Example Layout (Medical application)

    The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

    Products specifications
    Size 3.5"
    Resolution 320x240
    Active Area (mm) 70.08x52.56
    Color Full Color
    Power supply 12V
    Display Interface RS485 + GPIO
    View Angle IPS
    Frame Yes
    Touch Panel Capacitive
    O. Temperature (°C) -30~80
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
