WF52-480128AD#0F0-FC

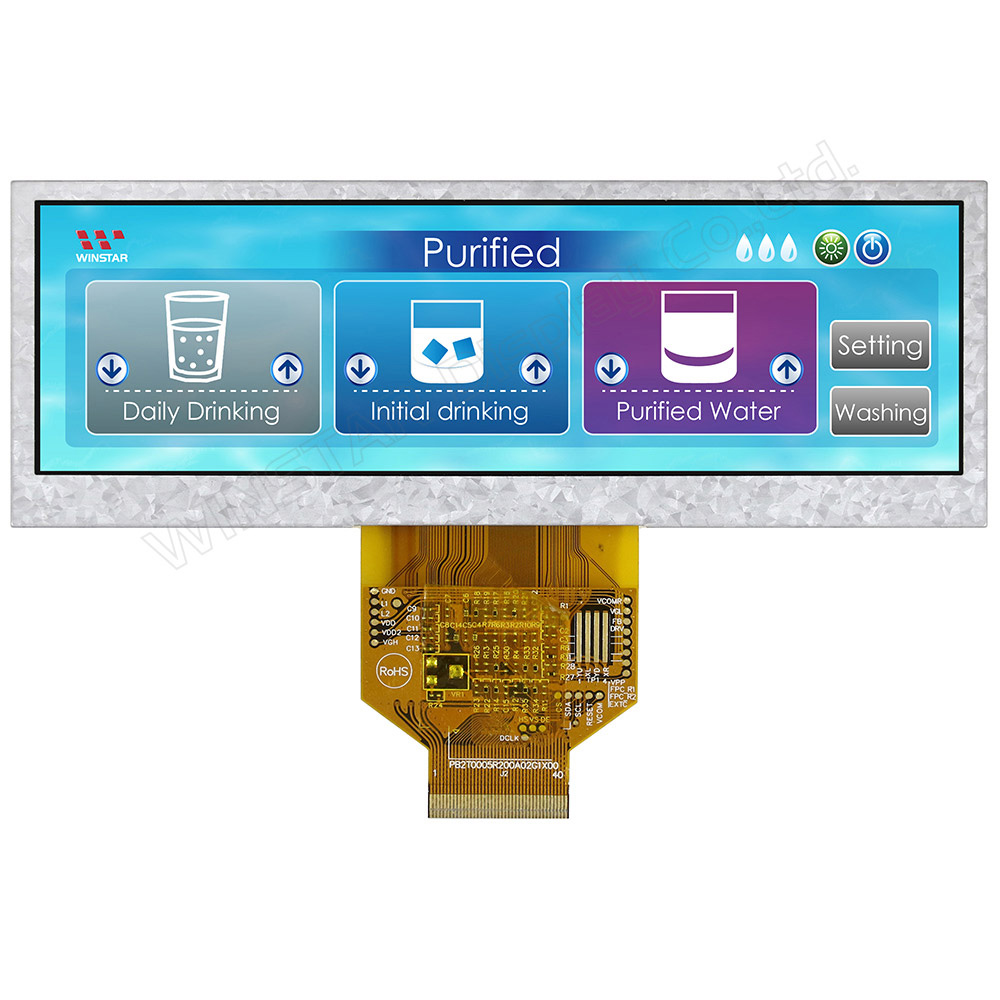

TFT 5.2" 480x128, Bar Type, Interface RGB, 400cd/m², Wide view angle (O-Film), No touch

DESCRIPTION

Winstar Display released a series of bar type 5.2" Widescreen TFT LCD display; it's a new size and resolution of TFT displays resolution which exclusively offered by Winstar. This 5.2 inch bar type Wide TFT LCD Display offers high quality and colorful image made of resolution 480x128 pixels; it is especially suitable for industrial equipment & automotive applications, server system, POS system, dynamic information displays, audio system and advertising display.

It has module dimension of 140.4 x 49.87 mm and Active Area of 127.152 x 33.9072 plus wider viewing angle. This TFT display is featured with O-Film on panel having the advantages of wider viewing angle of Left: 75 / Right: 75 / Up: 75 / Down: 75 degree (typical). It is built in with ST7252 or equivalent driver IC; it supports RGB 24 bits parallel interface SYNC mode. Operating temperatures from -20℃ to +70℃; storage temperature range from -30℃ to +80℃.

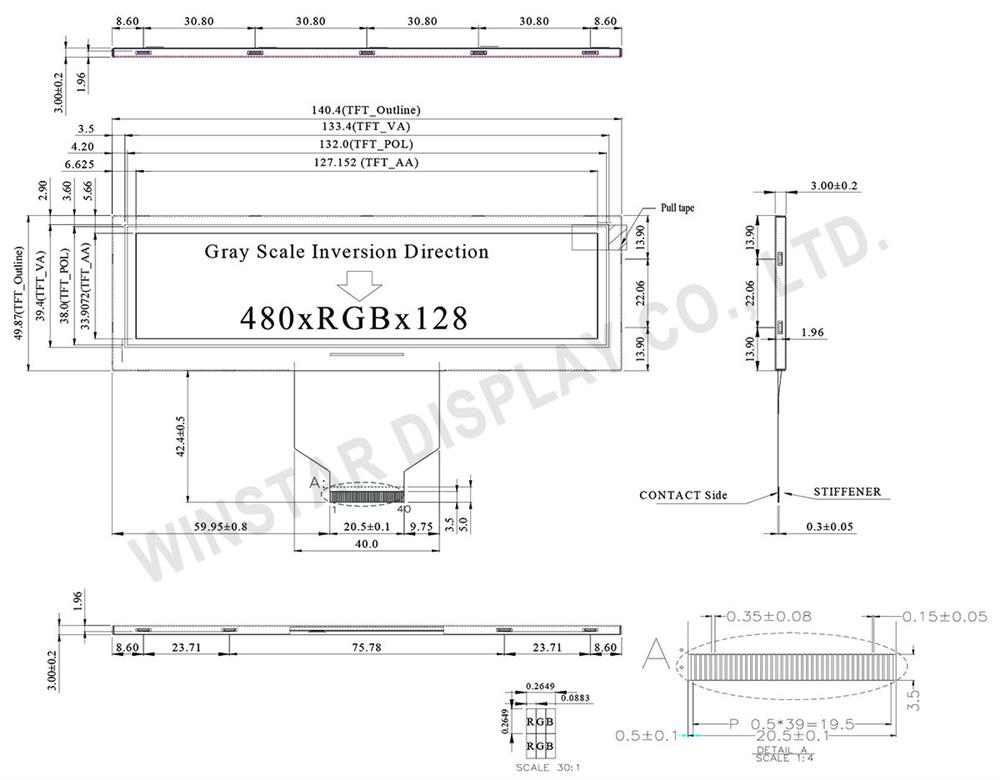

DRAWING

SPECIFICATIONS

Interface

Pin	Symbol	Function
1	VLED-	Power for LED backlight cathode
2	VLED+	Power for LED backlight anode
3	GND	Power ground
4	VCC	Power voltage
5	R0	Red data (LSB)
6~11	R1~R6	Red data
12	R7	Red data (MSB)
13	G0	Green data (LSB)
14~19	G1~G6	Green data
20	G7	Green data (MSB)
21	B0	Blue data (LSB)
22~27	B1~B6	Blue data
28	B7	Blue data (MSB)
29	GND	Power ground
30	CLK	Pixel clock (DCLK)
31	LR	Right /Left selection; Default R/L is Pull High
32	HSYNC	Horizontal sync signal; negative polarity
33	VSYNC	Vertical sync signal; negative polarity
34	NC	No connection
35	UD	Up/down selection; Default U/D is Pull High
36	RESET	Reset signal
37~40	NC	No connection

General Specifications

Item	Dimension	Unit
Size	5.2	inch
Dot Matrix	480 × RGB × 128	dots
Module dimension	140.4 × 49.87 × 3.0	mm
Active area	127.152 × 33.9072	mm
Dot pitch	0.0883 × 0.2649	mm
LCD type	TFT, Normally White, Transmissive
View Direction	6 o'clock
Gray Scale Inversion Direction	12 o'clock
Aspect Ratio	Bar Type
Backlight Type	LED, Normally White
Driver IC	ST7252 Or Equal
Interface	RGB 24bit
Touch Panel	Without touch panel
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	+70	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage For LCM	VCC	－	3.0	3.3	3.6	V
Supply Current For LCM	ICC	-	－	20	－	mA

SKU: WF52-480128AD#0F0-FC

Brand: Winstar

Available: No

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

Price

€52.00

€43.30

€36.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€52.00 excl tax
