WF50-800480FL#BSPW3-FC

TFT 5" 800x480 LCD Panel, Interface LVDS, High Brightness 750cd/m², Wide view angle (IPS), Super extended Temperature, Capacitive touch panel I2C interface (GG, GT911 IC)

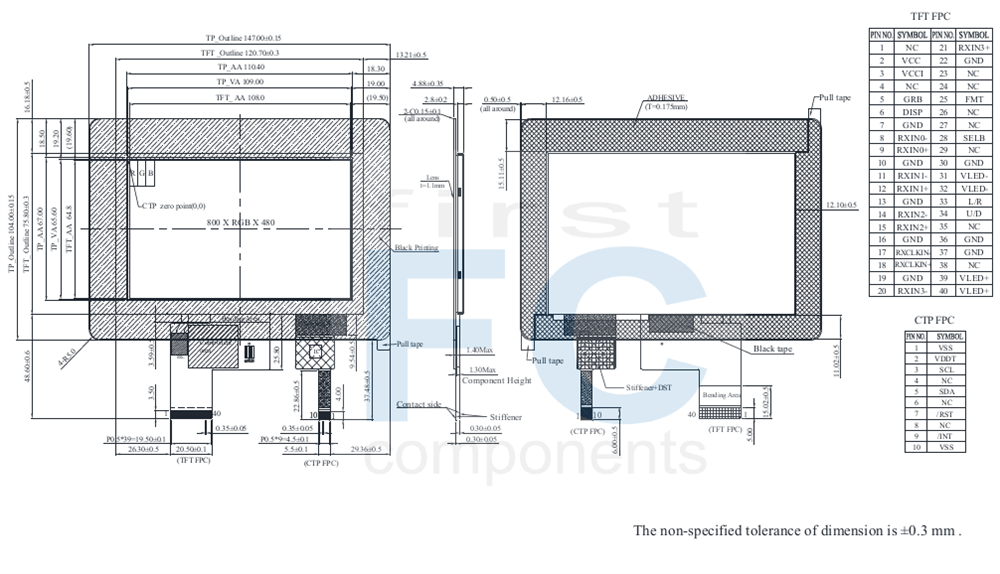

DRAWING

SPECIFICATIONS

General Specifications

Item	Dimension	Unit
Size	5.0	inch
Dot Matrix	800× 3(RGB) ×480	dots
Module dimension	147.0 (W) × 104.0 (H) ×4.88	mm
Active area	108 (W) × 64.8 (H)	mm
Pixel pitch	0.135(W) ×0.135(H)	mm
LCD type	TFT, Normally Black, Transmissive
Viewing angle	80/80/80/80
Aspect Ratio	5:3
TFT Drive IC	ST7262 or Equivalent
TFT Interface	LVDS
Backlight Type	LED, Normally White
Touch Panel	Capacitive Touch Panel
CTP IC	GT911 or Equivalent
CTP Interface	I2C
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-30	－	+80	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

1. Typical Operation Conditions

Item	Symbol	Values			Unit
Item	Symbol	Min.	Typ.	Max.	Unit
Power Voltage	VCC	3.1	3.3	3.6	V
Current for Driver	IDD	-	67.6	102	mA

2. Backlight Driving Conditions

Parameter	Symbol	Min.	Typ.	Max.	Unit
LED voltage	VL	27.5	30	33	V
LED current	IL	-	40	-	mA
LED Life Time	-	50,000	-	-	Hr
