WF43-480272GD#0S0-FC

Picture of WF43-480272GD#0S0-FC Picture of WF43-480272GD#0S0-FC

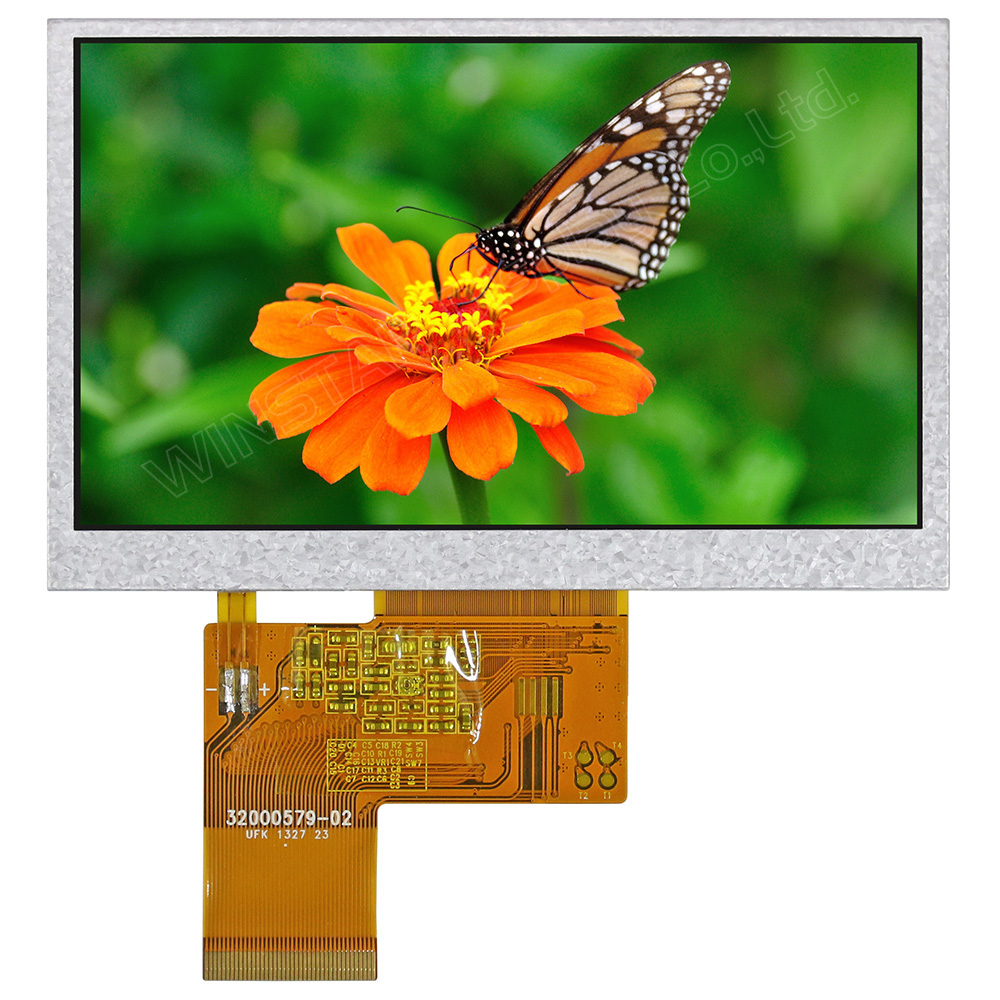

TFT 4.3" 480x272 LCD Panel, Interface RGB, High Brightness 1000cd/m², No touch

DESCRIPTION

This display TFT LCD module is a 4.3 inch diagonal, 480xRGBx272, full color TFT Module, outline dimension 105.5 x 67.2 mm, VA size 97.1x55.9 mm and AA size 95.04x53.856 mm.

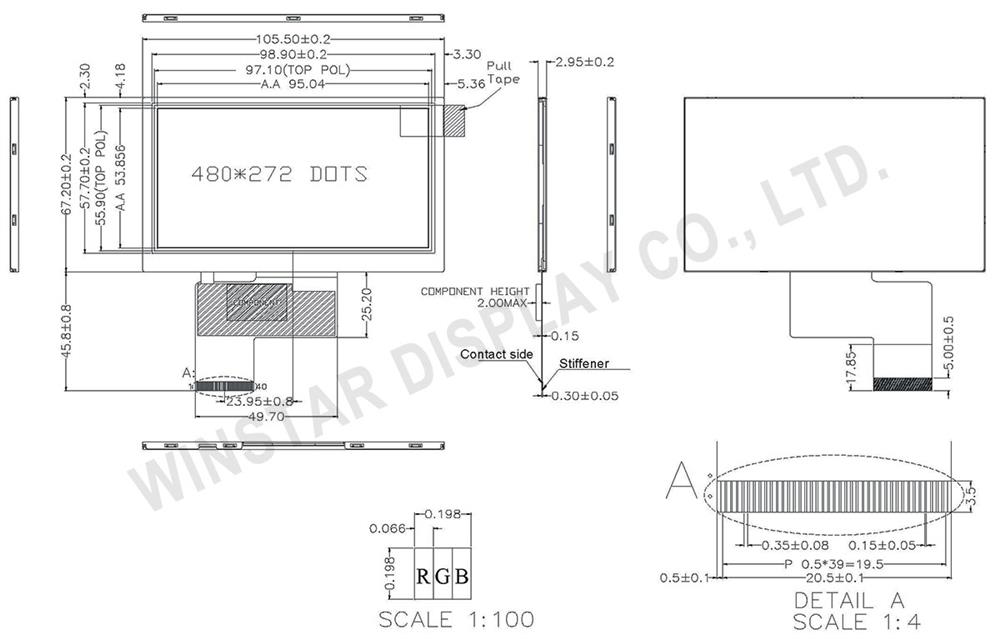

DRAWING

4.3 inch 480x272 Color TFT Display Module - WF43GTIAEDNN0 - Winstar

SPECIFICATIONS



Interface

PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data (LSB)
6~11 R1~R6 Red data
12 R7 Red data (MSB)
13 G0 Green data (LSB)
14~19 G1~G6 Green data
20 G7 Green data (MSB)
21 B0 Blue data (LSB)
22~27 B1~B6 Blue data
28 B7 Blue data (MSB)
29 GND Power ground
30 CLK Pixel clock
31 DISP Display on/off
32~33 NC No connection
34 DE Data Enable
35 NC No connection
36 GND Power ground
37~40 NC No connection



General Specifications

ItemDimensionUnit
Size 4.3 inch
Dot Matrix 480 × RGB × 272 (TFT) dots
Module dimension 105.5(W) × 67.2(H) × 2.95(D) mm
Active area 95.04 × 53.86 mm
Dot pitch 0.066 × 0.198 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Backlight Type LED, Normally White
Touch Screen Without touch screen
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VCC － 3.0 3.3 3.5 V
Digital operation current Icc － - 17 25 mA


SKU: WF43-480272GD#0S0-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€28.00
€22.40
€18.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€28.00 excl tax

DESCRIPTION

This display TFT LCD module is a 4.3 inch diagonal, 480xRGBx272, full color TFT Module, outline dimension 105.5 x 67.2 mm, VA size 97.1x55.9 mm and AA size 95.04x53.856 mm.


DRAWING

4.3 inch 480x272 Color TFT Display Module - WF43GTIAEDNN0 - Winstar

SPECIFICATIONS



Interface

PinSymbolFunction
1 VLED- Power for LED backlight cathode
2 VLED+ Power for LED backlight anode
3 GND Power ground
4 VCC Power voltage
5 R0 Red data (LSB)
6~11 R1~R6 Red data
12 R7 Red data (MSB)
13 G0 Green data (LSB)
14~19 G1~G6 Green data
20 G7 Green data (MSB)
21 B0 Blue data (LSB)
22~27 B1~B6 Blue data
28 B7 Blue data (MSB)
29 GND Power ground
30 CLK Pixel clock
31 DISP Display on/off
32~33 NC No connection
34 DE Data Enable
35 NC No connection
36 GND Power ground
37~40 NC No connection



General Specifications

ItemDimensionUnit
Size 4.3 inch
Dot Matrix 480 × RGB × 272 (TFT) dots
Module dimension 105.5(W) × 67.2(H) × 2.95(D) mm
Active area 95.04 × 53.86 mm
Dot pitch 0.066 × 0.198 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Aspect Ratio 16:9
Backlight Type LED, Normally White
Touch Screen Without touch screen
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VCC － 3.0 3.3 3.5 V
Digital operation current Icc － - 17 25 mA


Products specifications
Brand Winstar
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.85
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.85
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
