TST0004R3H4111XXXX04

Picture of TST0004R3H4111XXXX04

Picture of TST0004R3H4111XXXX04

Picture of TST0004R3H4111XXXX04

Picture of TST0004R3H4111XXXX04

Capacitive (GG) Touch panel 4.3", O.D. 132.00x96.00mm, USB-I2C interface (ILI2511 IC), Glass-Glass structure, Black free board (suitable for G/H/V/W/U/Y/Q families)

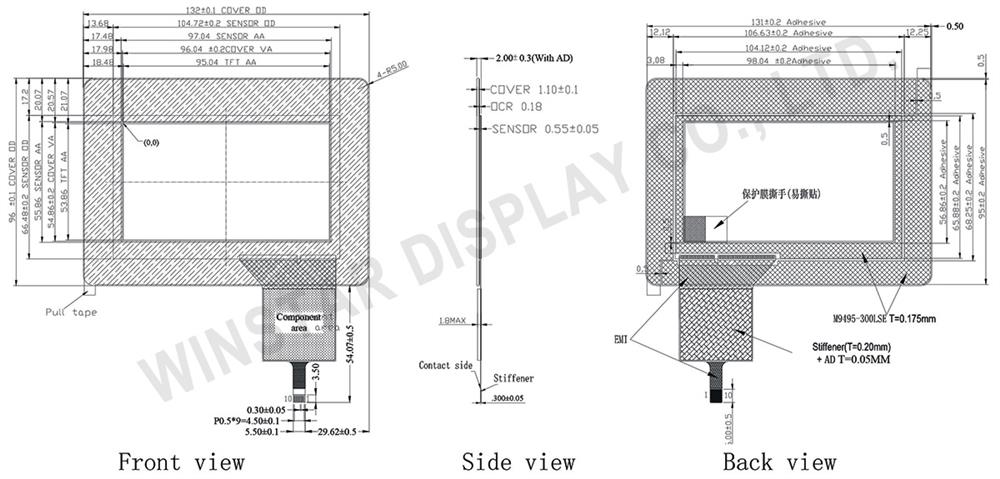

DRAWING

TST0004R3H4111XXXX04 - Winstar

SPECIFICATIONS

General Specification

Feature

NO.	Item	Specifications
1	Type	Projected Capacitive
2	Input Mode	Finger
3	Connector	COF

Mechanical Description

NO.	Item	Specifications	Unit
1	Touch Panel Size	4.3(Diagonal)	inch
2	Structure	G+G
3	View Area	96.04(H)x54.86(V)	mm
4	Outline Dimension	132.00(H)x96.00(V)x1.830(D)	mm

Interface Pin Function

Pin No.	Symbol	I/O	Description
1	USB/GND	---	System ground
2	USB/VDD5V	---	Power supply
3	D+	I/O	Data +
4	D-	I/O	Data -
5	GND	---	System ground
6	SDA	I/O	I2C clock signal
7	SCL	I/O	I2C clock signal
8	RST	---	External reset signal, active low
9	INT	---	Interrupt signal, active low, asserted to request Host start a new transcation
10	VDD	---	Power supply

IC Specification

NO.	Item	Specifications
1	Driver IC	ILI2511
2	Detect Points	10 touch
3	Interface	I2C+USB
4	Power Supply	5.0V

SKU: TST0004R3H4111XXXX04

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Touch-Panel Connector
Added Board

Price Breaks

Quantity

1+

5+

10+

Price

€40.60

€33.80

€29.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€40.60 excl tax

Overview
Specifications
Download
Contact Us

DRAWING

TST0004R3H4111XXXX04 - Winstar

SPECIFICATIONS

General Specification

Feature

NO.	Item	Specifications
1	Type	Projected Capacitive
2	Input Mode	Finger
3	Connector	COF

Mechanical Description

NO.	Item	Specifications	Unit
1	Touch Panel Size	4.3(Diagonal)	inch
2	Structure	G+G
3	View Area	96.04(H)x54.86(V)	mm
4	Outline Dimension	132.00(H)x96.00(V)x1.830(D)	mm

Interface Pin Function

Pin No.	Symbol	I/O	Description
1	USB/GND	---	System ground
2	USB/VDD5V	---	Power supply
3	D+	I/O	Data +
4	D-	I/O	Data -
5	GND	---	System ground
6	SDA	I/O	I2C clock signal
7	SCL	I/O	I2C clock signal
8	RST	---	External reset signal, active low
9	INT	---	Interrupt signal, active low, asserted to request Host start a new transcation
10	VDD	---	Power supply

IC Specification

NO.	Item	Specifications
1	Driver IC	ILI2511
2	Detect Points	10 touch
3	Interface	I2C+USB
4	Power Supply	5.0V

Products specifications

Brand	Winstar
Size	4.3"
Active Area (mm)	97.04x55.86
Display Interface	USB/I2C
Constructive Structure	GG + Frame
Display Connection	FPC for ZIF Connector
Pin Nr.	10
Pin Pitch	0.5mm
Touch Panel IC Controller	ILI2511
Preferred - Not Preferred	Preferred

Download

Log in or Register to downloads PDF.

Your name

Your email

Enquiry

Products specifications

Brand	Winstar
Size	4.3"
Active Area (mm)	97.04x55.86
Display Interface	USB/I2C
Constructive Structure	GG + Frame
Display Connection	FPC for ZIF Connector
Pin Nr.	10
Pin Pitch	0.5mm
Touch Panel IC Controller	ILI2511
Preferred - Not Preferred	Preferred
