WF35-320240PD#004-FC

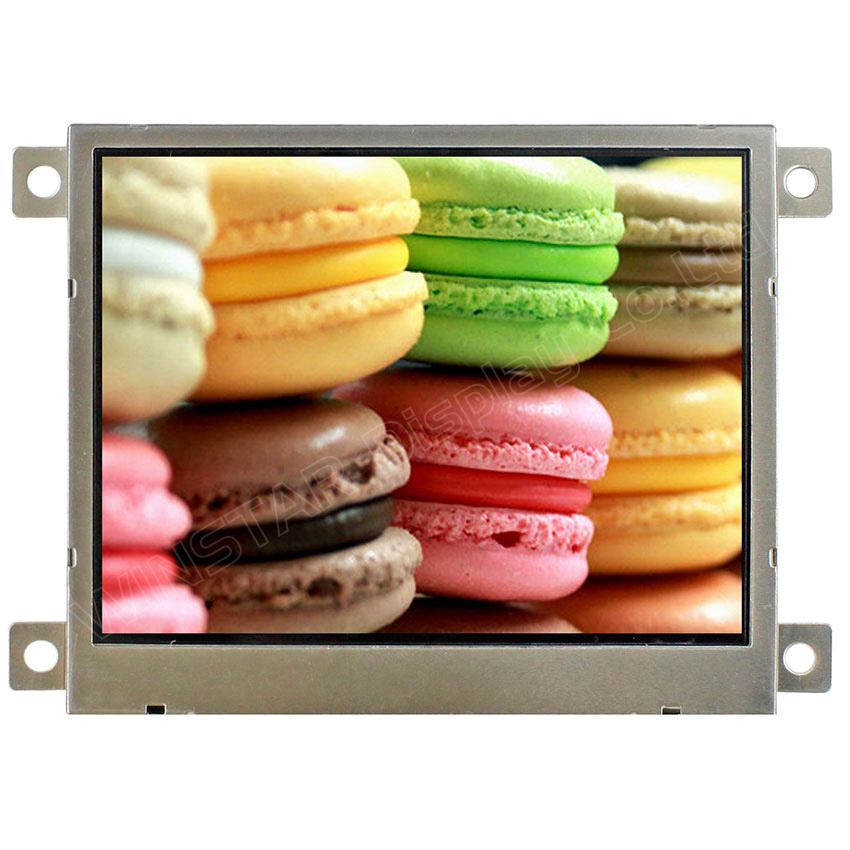

Picture of WF35-320240PD#004-FC Picture of WF35-320240PD#004-FC
TFT 3.5" 320x240, LCD + IC Controller, Interface MCU (Parallel) IC RA8875, 420cd/m², Frame, No touch

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION



3.5 inch Winstar TFT P Series family built in with RA8875 controller board plus a 36 pin-out connector on board. All Winstar TFT P Series are built in with 8 bit or 16 bit parallel interface options and already pre-defined pin no. 33 ~ 36 as backlight supply; so there is no need to design extra backlight circuit.  All of Winstar TFT P Series modules are built in backlight driver IC and support Chinese character, backlight brightness adjustment and Flash Memory.

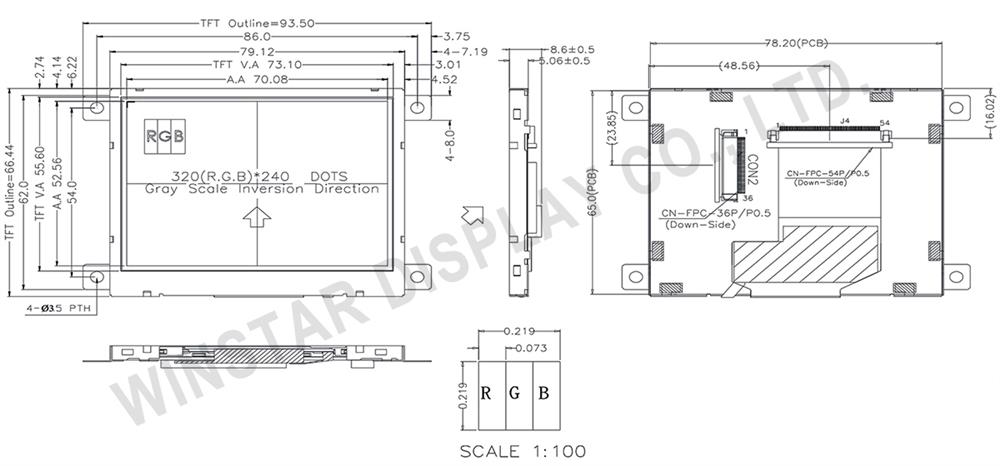

DRAWING







INTERFACE

PinSymbolFunction
1 GND System ground
2 VDD Power Supply : +3.3V
3 NC No connect
4 RS Data / Command select
5 WR Write strobe signal
6 RD Read strobe signal
7~22 DB0~DB15 Data bus
23 WAIT Wait Signal Output(H:active)
24 NC No connect
25 CS Chip select
26 RST Hardware reset
27~32 NC No connect
33~34 VLED- Power for LED backlight cathode
35~36 VLED+ Power for LED backlight anode
SKU: WF35-320240PD#004-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€54.00
€48.60
€41.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€54.00 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION



3.5 inch Winstar TFT P Series family built in with RA8875 controller board plus a 36 pin-out connector on board. All Winstar TFT P Series are built in with 8 bit or 16 bit parallel interface options and already pre-defined pin no. 33 ~ 36 as backlight supply; so there is no need to design extra backlight circuit.  All of Winstar TFT P Series modules are built in backlight driver IC and support Chinese character, backlight brightness adjustment and Flash Memory.



DRAWING







INTERFACE

PinSymbolFunction
1 GND System ground
2 VDD Power Supply : +3.3V
3 NC No connect
4 RS Data / Command select
5 WR Write strobe signal
6 RD Read strobe signal
7~22 DB0~DB15 Data bus
23 WAIT Wait Signal Output(H:active)
24 NC No connect
25 CS Chip select
26 RST Hardware reset
27~32 NC No connect
33~34 VLED- Power for LED backlight cathode
35~36 VLED+ Power for LED backlight anode
