WEP12864W#AJP5N00E00-FC

Picture of WEP12864W#AJP5N00E00-FC Picture of WEP12864W#AJP5N00E00-FC
PMOLED 2.42" Graphic 128x64, White color, COG + PCB, 5V, Interface RS232, Frame, Glare

RECOMMENDED ONLY AS SPARE PARTS

For new projects please check the related products below or contact us for alternative parts at sales@first-components.com.



Description

WEP12864W#AJP5N00E00-FC is a 2.42-inch graphic OLED display with a resolution of 128x64 pixels. This module is built-in with CH1116 IC and can be connected via an RS232 interface. The supply voltage for logic is 5V (typical value) with 1/64 driving duty.

This module can operate at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.

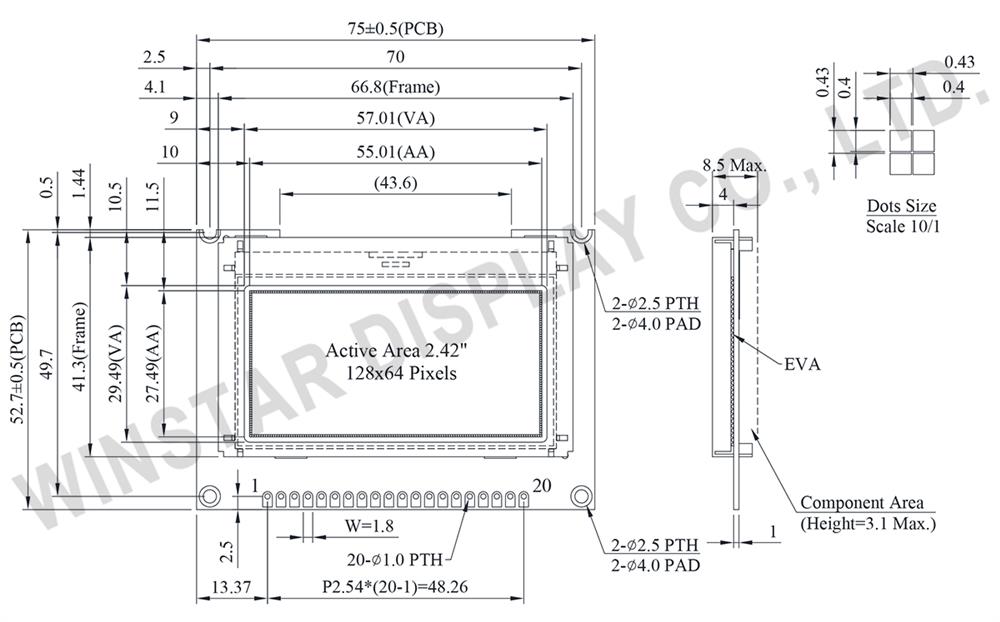

DRAWING

2.42-inch 128x64 Graphic OLED Display with PCB, supporting RS232 interface - WEP012864AJ(RS232)





SPECIFICATIONS

Interface Pin Function

No.SymbolDescription
1 VDD Power supply input
2 VSS Ground.
3 MCU_RESET MCU hardware reset input.3.3V~5V
This pin is not used and should be open.
4 RX RS-232 Receive
5 TX RS-232 Transmit
6~20 NC No connection.



General Specification

ItemDimensionUnit
Dot Matrix 128 x 64 -
Module dimension 75.0 × 52.7 × 8.5(Max). mm
Active Area(AA) 55.01 × 27.49 mm
Pixel Size 0.40 × 0.40 mm
Pixel Pitch 0.43 × 0.43 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
IC CH1116
Interface RS232 (Baud rate:115200)
Size 2.42 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD -0.3 3.6 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD - 2.8 3.0 3.3 V
Display 50% Pixel on IDD VDD =5V - 60 120 mA

SKU: WEP12864W#AJP5N00E00-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€30.10
€24.10
€23.20

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€30.10 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please check the related products below or contact us for alternative parts at sales@first-components.com.



Description

WEP12864W#AJP5N00E00-FC is a 2.42-inch graphic OLED display with a resolution of 128x64 pixels. This module is built-in with CH1116 IC and can be connected via an RS232 interface. The supply voltage for logic is 5V (typical value) with 1/64 driving duty.

This module can operate at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.



DRAWING

2.42-inch 128x64 Graphic OLED Display with PCB, supporting RS232 interface - WEP012864AJ(RS232)





SPECIFICATIONS

Interface Pin Function

No.SymbolDescription
1 VDD Power supply input
2 VSS Ground.
3 MCU_RESET MCU hardware reset input.3.3V~5V
This pin is not used and should be open.
4 RX RS-232 Receive
5 TX RS-232 Transmit
6~20 NC No connection.



General Specification

ItemDimensionUnit
Dot Matrix 128 x 64 -
Module dimension 75.0 × 52.7 × 8.5(Max). mm
Active Area(AA) 55.01 × 27.49 mm
Pixel Size 0.40 × 0.40 mm
Pixel Pitch 0.43 × 0.43 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
IC CH1116
Interface RS232 (Baud rate:115200)
Size 2.42 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD -0.3 3.6 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD - 2.8 3.0 3.3 V
Display 50% Pixel on IDD VDD =5V - 60 120 mA

Products specifications
Brand Winstar
Size 2.42"
Resolution 128x64
Active Area (mm) 55.01x27.49
Dot Size 0.40x0.40
Polarizer Glare
Color White
Power supply 5V
Display Interface RS232
Display IC CH1116
Constructive Structure COG + PCB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.42"
Resolution 128x64
Active Area (mm) 55.01x27.49
Dot Size 0.40x0.40
Polarizer Glare
Color White
Power supply 5V
Display Interface RS232
Display IC CH1116
Constructive Structure COG + PCB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
