NE021-N003GD

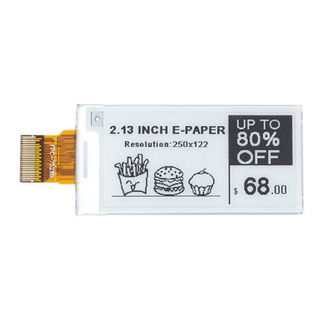

E-Paper 2.13" 250x122, Color Black on White, Interface SPI (SSD1680Z8 IC)

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

NE021­N003GD is an Active Matrix Electrophoretic Display (AM EPD), with interface and a reference system design. The display is capable to display images at 1-bit white, black full display capabilities. The2.13 inch active area contains 250×122 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, sourcedriver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) System.

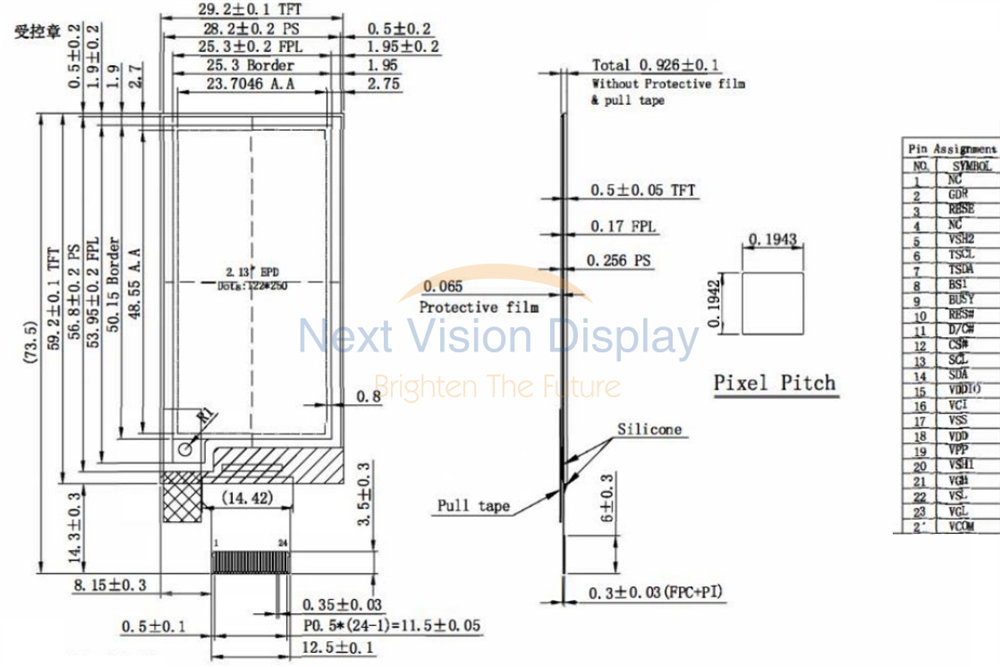

DRAWING

SPECIFICATIONS

Interface Pin Function

No.NameI/ODescriptionRemark
1 NC   Do not connect with other NC pins Keep Open
2 GDR O N-Channel MOSFET Gate Drive Control
3 RESE I Current Sense Input for the Control Loop
4 NC NC Do not connect with other NC pins Keep Open
5 VSH2 C Positive Source driving voltage (Red)
6 TSCL O I2C Intrface to digital temperature sensor Clock in
7 TSDA I/O I2C Intrface to digital temperature sensor Data pin
8 BS1 I Bus Interface selection pin Note 5-5
9 BUSY O Busy state output pin Npte 5-4
10 RES# I Reset signal input Active Low Note 5-3
11 D/C# I Data/Command control pin Note 5-2
12 CS# I Chip select input pin Note 5-1
13 SCL I Serial Clock pin (SPI)
14 SDA I/O Serial Data pin (SPI)
15 VDDIO P Power Supply for interface logic pins. It should be connected with VCI
16 VCI P Power Supply for the chip
17 VSS P Ground
18 VDD C Core logic power pin VDD can be regulated internally from VCI. A capacitor should be connected between VDD and VSS
19 VPP P FOR TEST Keep Open
20 VSH1 C Positive Source driving voltage
21 VGH C Power Supply pin for Positive Gate driving voltage and VSH1
22 VSL C Negative Source driving voltage
23 VGL C Power Supply pin for Negative Gate driving voltage VCOM and VSL
24 VCOM C VCOM driving voltage



I= InputPin, O =OutputPin, I/O=Bi-directionalPin (Input/output), P=PowerPin, C=CapacitorPin

Note 5-1: This pin (CS#) is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW.

Note5-2: This pin is (D/C#) Data/Commandcontrolpin connecting to the MCU in 4- wire SPI mode. When the pin is pulled HIGH, the data at SDA will be interpreted as data. When the pin is pulled LOW, the data at SDA will be interpreted ascommand.

Note5-3: This pin (RES#) is reset signal input. The Reset is active low.

Note 5-4: This pin is Busy state output pin. When Busy is High, the operation of chip should not be interrupted, command should not be sent. The chip would put Busy pin High when:

-Outputting display waveform;

-Communicating with digital temperature sensor.

Note 5-5: Bus interface selection pin.



Mechanical Data

ParameterSpecificationsUnitRemark
Screen size 2.13 Inch
Display Resolution 250(H)x122(V) Pixel DPI:130
Active Area 23.7046x48.55 mm
Pixel Pitch 0.1943x0.1942 mm
Pixel Configuration Square
Outline Dimension 29.2(H)x59.2(V)x0.926(D) mm
Weight 3.2±0.5 g



Electrical Characteristics

Absolute Maximum Ratings

ParameterSymbolRatingUnit
Logic supply voltage VCI -0.5 to + 4.0 V
Logic Input voltage VIN -0.5 to VCI +0.5 V
Logic Output voltage VOUT -0.5 to VCI +0.5 V
Operating Temp. range TOPR 0 to +50
Storage Temp range TSTG -25 to +70
Optimal Storage Temp. TSTGo 23±3
Optimal Storage Humidity HSTGo 55±10 %RH



Optical Specification

SymbolParameterConditionsMinTypMaxUnitNotes
R White Reflectivity White 30 35 - % 8-1
CR Contrast Ratio Indoor 8:1   -   8-2
GN 2Grey Level -
T update Image update time At 25°C - 3 - sec
Life

23±3°C

55±10%RH

- 5 years     8-3



Notes:

8-1. Luminancemeter:Eye-One Pro Spectrophotometer.

8-2. CR=Surface Reflectance with all white pixel/Surface Reflectance with all black pixels.

8-3. When the product is stored. The display screen should be kept white and face up.

SKU: NE021-N003GD
Available: No

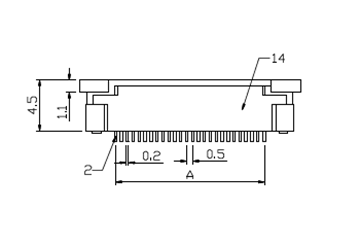

Accessory Kit
Price Breaks
Quantity
1+
5+
Price
€16.90
€14.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€16.90 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

NE021­N003GD is an Active Matrix Electrophoretic Display (AM EPD), with interface and a reference system design. The display is capable to display images at 1-bit white, black full display capabilities. The2.13 inch active area contains 250×122 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, sourcedriver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Module can be used in portable electronic devices, such as Electronic Shelf Label (ESL) System.



DRAWING

SPECIFICATIONS

Interface Pin Function

No.NameI/ODescriptionRemark
1 NC   Do not connect with other NC pins Keep Open
2 GDR O N-Channel MOSFET Gate Drive Control
3 RESE I Current Sense Input for the Control Loop
4 NC NC Do not connect with other NC pins Keep Open
5 VSH2 C Positive Source driving voltage (Red)
6 TSCL O I2C Intrface to digital temperature sensor Clock in
7 TSDA I/O I2C Intrface to digital temperature sensor Data pin
8 BS1 I Bus Interface selection pin Note 5-5
9 BUSY O Busy state output pin Npte 5-4
10 RES# I Reset signal input Active Low Note 5-3
11 D/C# I Data/Command control pin Note 5-2
12 CS# I Chip select input pin Note 5-1
13 SCL I Serial Clock pin (SPI)
14 SDA I/O Serial Data pin (SPI)
15 VDDIO P Power Supply for interface logic pins. It should be connected with VCI
16 VCI P Power Supply for the chip
17 VSS P Ground
18 VDD C Core logic power pin VDD can be regulated internally from VCI. A capacitor should be connected between VDD and VSS
19 VPP P FOR TEST Keep Open
20 VSH1 C Positive Source driving voltage
21 VGH C Power Supply pin for Positive Gate driving voltage and VSH1
22 VSL C Negative Source driving voltage
23 VGL C Power Supply pin for Negative Gate driving voltage VCOM and VSL
24 VCOM C VCOM driving voltage



I= InputPin, O =OutputPin, I/O=Bi-directionalPin (Input/output), P=PowerPin, C=CapacitorPin

Note 5-1: This pin (CS#) is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW.

Note5-2: This pin is (D/C#) Data/Commandcontrolpin connecting to the MCU in 4- wire SPI mode. When the pin is pulled HIGH, the data at SDA will be interpreted as data. When the pin is pulled LOW, the data at SDA will be interpreted ascommand.

Note5-3: This pin (RES#) is reset signal input. The Reset is active low.

Note 5-4: This pin is Busy state output pin. When Busy is High, the operation of chip should not be interrupted, command should not be sent. The chip would put Busy pin High when:

-Outputting display waveform;

-Communicating with digital temperature sensor.

Note 5-5: Bus interface selection pin.



Mechanical Data

ParameterSpecificationsUnitRemark
Screen size 2.13 Inch
Display Resolution 250(H)x122(V) Pixel DPI:130
Active Area 23.7046x48.55 mm
Pixel Pitch 0.1943x0.1942 mm
Pixel Configuration Square
Outline Dimension 29.2(H)x59.2(V)x0.926(D) mm
Weight 3.2±0.5 g



Electrical Characteristics

Absolute Maximum Ratings

ParameterSymbolRatingUnit
Logic supply voltage VCI -0.5 to + 4.0 V
Logic Input voltage VIN -0.5 to VCI +0.5 V
Logic Output voltage VOUT -0.5 to VCI +0.5 V
Operating Temp. range TOPR 0 to +50
Storage Temp range TSTG -25 to +70
Optimal Storage Temp. TSTGo 23±3
Optimal Storage Humidity HSTGo 55±10 %RH



Optical Specification

SymbolParameterConditionsMinTypMaxUnitNotes
R White Reflectivity White 30 35 - % 8-1
CR Contrast Ratio Indoor 8:1   -   8-2
GN 2Grey Level -
T update Image update time At 25°C - 3 - sec
Life

23±3°C

55±10%RH

- 5 years     8-3



Notes:

8-1. Luminancemeter:Eye-One Pro Spectrophotometer.

8-2. CR=Surface Reflectance with all white pixel/Surface Reflectance with all black pixels.

8-3. When the product is stored. The display screen should be kept white and face up.

Products specifications
Brand Next Vision Display
Size 2.13"
Resolution 250x122
Active Area (mm) 23.71x48.55
Dot Size 0.19x0.19
Color Black on White
Display Interface SPI
Display IC SSD1680Z8
O. Temperature (°C) 0~60
Display Connection FPC for ZIF Connector
Pin Nr. 24
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
