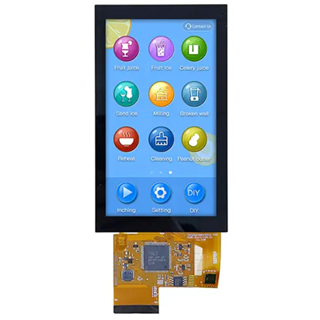

DMG85480F050_01WTCZ02
DMG85480F050_01WTCZ02
TFT 5" 480x854, Intelligent T5L UART COF, 100cd/m², Wide View Angle (IPS), Capacitive Touch Panel (GG with bonding OCA), Integrated Black Glass
Media
ASIC Information
T5L0 ASIC
T5L0 ASIC is a low-power, cost-effective, GUI and application highly integrated single-chip dual-core ASIC designed by DWIN Technology for small-size LCD and mass produced in 2020.
Display
Color
262K colors
LCD Type
IPS-TFT-LCD,
Viewing Angle
Wide viewing angel, typical value of 85°/85°/85°/85°(L/R/U/D)
Resolution
480×854
Backlight
LED
Brightness
100nit
Voltage & Current
Power Voltage
3.6~5.5V, typical value of 5V
Operation Current
VCC=5V, max backlight, 300mA
VCC=5V, backlight off,95mA
Interface
User interface
50Pin_0.5mm FPC
Baudrate
3150~3225600bps
Output Voltage
Output 1;3.0~3.3 V
Output 0;0~0.3 V
Input Voltage
(RXD)
Input 1;3.3V
Input 0;0~0.5V
Interface
UART2: TTL;
UART4: TTL;( Only available after OS configuration)
UART5: TTL;(Only available after OS configuration
Data Format
UART2: N81;
UART4: N81/E81/O81/N82;4 modes (OS configuration)
UART5: N81/E81/O81/N82;4 modes (OS configuration)

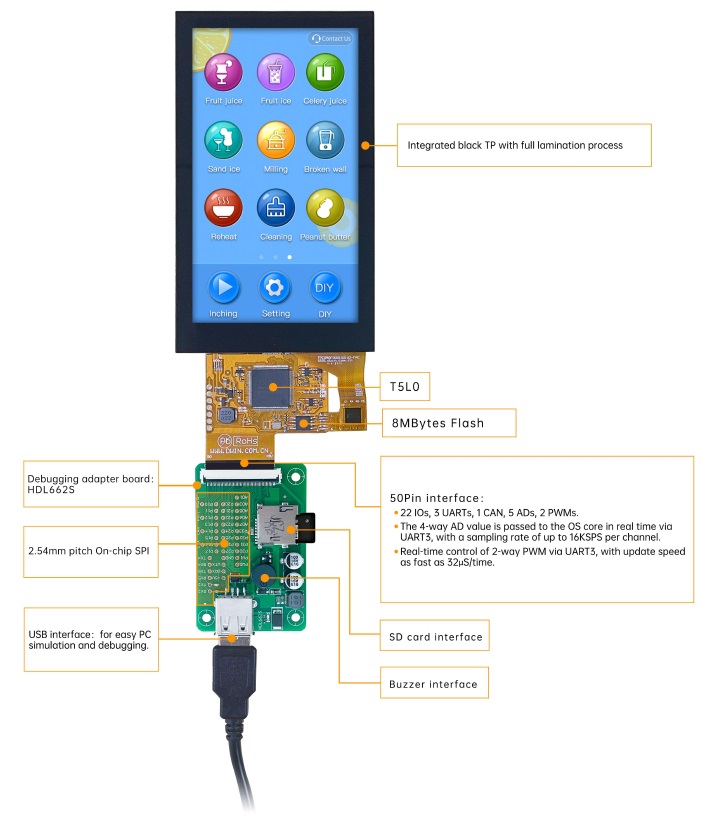

Display Connection
Accessories (Selectable in Above Menu)

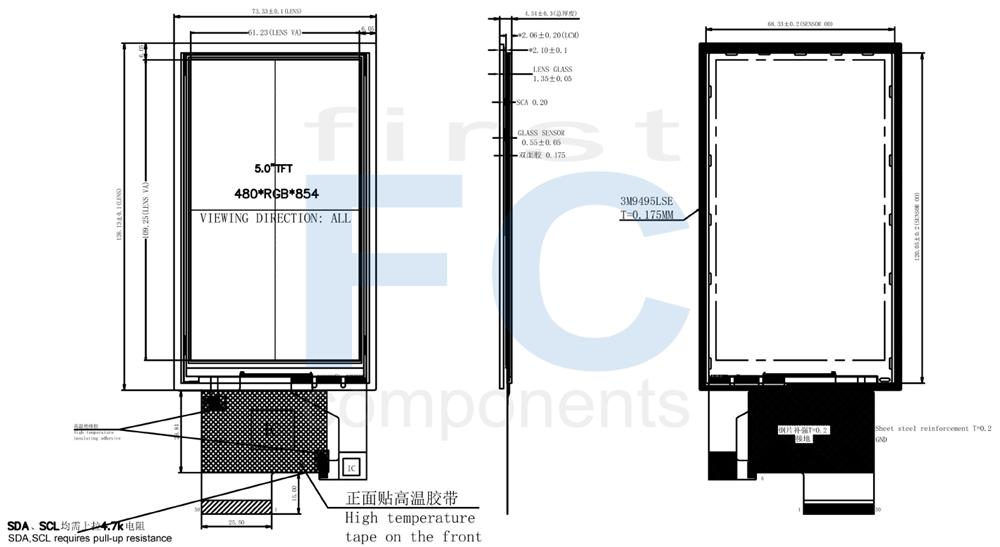

DRAWING
External Interface
Pin
Definition
I/O
Functional Description
1
5V
I
Power supply, DC3.6-5.5V
2
5V
I
3
GND
GND
GND
4
GND
GND
5
GND
GND
6
AD7
I
5 input ADCs. 12-bit resolution in case of 3.3V power supply. 0-3.3V input voltage. Except for AD6, the rest data is sent to OS core via UART3 in real time with 16KHz sampling rate. AD1 and AD5 can be used in parallel, and AD3 and AD7 can be used in parallel, which equals to two 32KHz sampling AD. AD1, AD3, AD5, AD7 can be used in parallel, which equals to a 64KHz sampling AD; the data is summed 1024 times and then divided by 64 to obtain a 64Hz 16bit AD value by oversampling.
7
AD6
I
8
AD5
I
9
AD3
I
10
AD1
I
11
+3.3
O
3.3V output, maximum load of 150mA.
12
SPK
O
External MOSFET to drive buzzer or speaker. The external 10K resistor should be pulled down to the ground to ensure that power-on is low level.
13
SD_CD
I/O
SD/SDHC interface,The SD_CK connects a 22pF capacitor to GND near the SD card interface.
14
SD_CK
O
15
SD_D3
I/O
16
SD_D2
I/O
17
SD_D1
I/O
18
SD_D0
I/O
19
PWM0
O
2 16-bit PWM output. The external 10K resistor should be pulled down to the ground to ensure that power-on is low level. The OS core can be controlled in real time via UART3
20
PWM1
O
21
P3.3
I/O
If using RX8130 or SD2058 I2C RTC to connect to both IOs, SCL should be connected to P3.2,and SDA connected to P3.3 in parallel with 10K resistor pull-up to 3.3V.
22
P3.2
I/O
23
P3.1/EX1
I/O
It can be used as an external interrupt 1 input at the same time, and supports both low voltage level or trailing edge interrupt modes.
24
P3.0/EX0
I/O
It can be used as an external interrupt 0 input at the same time, and supports both low voltage level or trailing edge interrupt modes.
25
P2.7
I/O
IO interface
26
P2.6
I/O
IO interface
27
P2.5
I/O
IO interface
28
P2.4
I/O
IO interface
29
P2.3
I/O
IO interface
30
P2.2
I/O
IO interface
31
P2.1
I/O
IO interface
32
P2.0
I/O
IO interface
33
P1.7
I/O
IO interface
34
P1.6
I/O
IO interface
35
P1.5
I/O
IO interface
36
P1.4
I/O
IO interface
37
P1.3
I/O
IO interface
38
P1.2
I/O
IO interface
39
P1.1
I/O
IO interface
40
P1.0
I/O
IO interface
41
UART4_TXD
O
UART4
42
UART4_RXD
I
43
UART5_TXD
O
UART5
44
UART5_RXD
I
45
P0.0
I/O
IO interface
46
P0.1
I/O
IO interface
47
CAN_TX
O
CAN interface
48
CAN_RX
I
49
UART2_TXD
O
UART2(UART2 serial port of OS core)
50
UART2_RXD
I
SKU:
DMG85480F050_01WTCZ02
Brand:
DWIN
Available:
Yes
Be the first to review this product
Accessory Kit
Added Board
-- Details Below in 'Related Products' --
HDL662S
Added Accessory 1
-- Details Below in 'Related Products' --
HDLUSB1
Added Accessory 2
-- Details Below in 'Related Products' --
SD_CARD [+€8.20]
Price Breaks
Quantity
1+
5+
10+
Price
€36.60
€31.60
€28.40
For quantities above
25
pcs pls send your enquiry to
[email protected]
or call +39 0332 1888005
€36.60 excl tax
Overview
Specifications
Download
Contact Us
Media
ASIC Information
T5L0 ASIC
T5L0 ASIC is a low-power, cost-effective, GUI and application highly integrated single-chip dual-core ASIC designed by DWIN Technology for small-size LCD and mass produced in 2020.
Display
Color
262K colors
LCD Type
IPS-TFT-LCD,
Viewing Angle
Wide viewing angel, typical value of 85°/85°/85°/85°(L/R/U/D)
Resolution
480×854
Backlight
LED
Brightness
100nit
Voltage & Current
Power Voltage
3.6~5.5V, typical value of 5V
Operation Current
VCC=5V, max backlight, 300mA
VCC=5V, backlight off,95mA
Interface
User interface
50Pin_0.5mm FPC
Baudrate
3150~3225600bps
Output Voltage
Output 1;3.0~3.3 V
Output 0;0~0.3 V
Input Voltage
(RXD)
Input 1;3.3V
Input 0;0~0.5V
Interface
UART2: TTL;
UART4: TTL;( Only available after OS configuration)
UART5: TTL;(Only available after OS configuration
Data Format
UART2: N81;
UART4: N81/E81/O81/N82;4 modes (OS configuration)
UART5: N81/E81/O81/N82;4 modes (OS configuration)
Display Connection
Accessories (Selectable in Above Menu)
DRAWING
External Interface
Pin
Definition
I/O
Functional Description
1
5V
I
Power supply, DC3.6-5.5V
2
5V
I
3
GND
GND
GND
4
GND
GND
5
GND
GND
6
AD7
I
5 input ADCs. 12-bit resolution in case of 3.3V power supply. 0-3.3V input voltage. Except for AD6, the rest data is sent to OS core via UART3 in real time with 16KHz sampling rate. AD1 and AD5 can be used in parallel, and AD3 and AD7 can be used in parallel, which equals to two 32KHz sampling AD. AD1, AD3, AD5, AD7 can be used in parallel, which equals to a 64KHz sampling AD; the data is summed 1024 times and then divided by 64 to obtain a 64Hz 16bit AD value by oversampling.
7
AD6
I
8
AD5
I
9
AD3
I
10
AD1
I
11
+3.3
O
3.3V output, maximum load of 150mA.
12
SPK
O
External MOSFET to drive buzzer or speaker. The external 10K resistor should be pulled down to the ground to ensure that power-on is low level.
13
SD_CD
I/O
SD/SDHC interface,The SD_CK connects a 22pF capacitor to GND near the SD card interface.
14
SD_CK
O
15
SD_D3
I/O
16
SD_D2
I/O
17
SD_D1
I/O
18
SD_D0
I/O
19
PWM0
O
2 16-bit PWM output. The external 10K resistor should be pulled down to the ground to ensure that power-on is low level. The OS core can be controlled in real time via UART3
20
PWM1
O
21
P3.3
I/O
If using RX8130 or SD2058 I2C RTC to connect to both IOs, SCL should be connected to P3.2,and SDA connected to P3.3 in parallel with 10K resistor pull-up to 3.3V.
22
P3.2
I/O
23
P3.1/EX1
I/O
It can be used as an external interrupt 1 input at the same time, and supports both low voltage level or trailing edge interrupt modes.
24
P3.0/EX0
I/O
It can be used as an external interrupt 0 input at the same time, and supports both low voltage level or trailing edge interrupt modes.
25
P2.7
I/O
IO interface
26
P2.6
I/O
IO interface
27
P2.5
I/O
IO interface
28
P2.4
I/O
IO interface
29
P2.3
I/O
IO interface
30
P2.2
I/O
IO interface
31
P2.1
I/O
IO interface
32
P2.0
I/O
IO interface
33
P1.7
I/O
IO interface
34
P1.6
I/O
IO interface
35
P1.5
I/O
IO interface
36
P1.4
I/O
IO interface
37
P1.3
I/O
IO interface
38
P1.2
I/O
IO interface
39
P1.1
I/O
IO interface
40
P1.0
I/O
IO interface
41
UART4_TXD
O
UART4
42
UART4_RXD
I
43
UART5_TXD
O
UART5
44
UART5_RXD
I
45
P0.0
I/O
IO interface
46
P0.1
I/O
IO interface
47
CAN_TX
O
CAN interface
48
CAN_RX
I
49
UART2_TXD
O
UART2(UART2 serial port of OS core)
50
UART2_RXD
I
Products specifications
Brand
DWIN
Size
5"
Resolution
480x854
Viewing Area (mm)
61.23x109.25
Active Area (mm)
61.23x109.25
Color
Full Color
Nr. Of Color
262K
Operating System
DGUSII OS
Power supply
5V
Display Interface
UART // CAN // PWM // AD // IO
Display IC
DWIN ASIC T5L0
View Angle
IPS
Touch Panel
Capacitive (Optical Bonding)
O. Temperature (°C)
-10~60
Preferred - Not Preferred
Preferred
Download
Log in
or
Register
to downloads PDF.
Your name
Your email
Enquiry
Products specifications
Brand
DWIN
Size
5"
Resolution
480x854
Viewing Area (mm)
61.23x109.25
Active Area (mm)
61.23x109.25
Color
Full Color
Nr. Of Color
262K
Operating System
DGUSII OS
Power supply
5V
Display Interface
UART // CAN // PWM // AD // IO
Display IC
DWIN ASIC T5L0
View Angle
IPS
Touch Panel
Capacitive (Optical Bonding)
O. Temperature (°C)
-10~60
Preferred - Not Preferred
Preferred
Related products
DMG85480F050_01WTC
TFT 5" 480x854, Intelligent T5L UART COF, 350cd/m², Wide View Angle (IPS), Capacitive Touch Panel (GG with bonding OCA)
From €28.40 excl tax
HDL662S
USB-50pin Adapter Board for DWIN COF T5L UART Series
Quote request
HDLUSB1
USB Male - USB Male Cable, Length 50cm
Quote request
SD_CARD
16Gb Micro SD Card with Adapter
From €7.70 excl tax
ED4 USB
DWIN Intelligent T5L USB Downloader
Quote request
Categories
Display Solutions
Intelligent Displays
Winstar - GUI Builder
Powertip - Graphic Editor
STM32 - TouchGFX
DWIN - T5L DGUSII
T5L DGUSII - COB
T5L DGUSII - COF
T5L DGUSII - Round
IOT - ADE Builder
Proculus - Unic View
4D Systems - Workshop
Embedded Systems
Wireless & IOT
Recently viewed
WEH000802ABPP5N00000
WLEP02566400DGAAASA00-FC
UC-1602ASGEG01
WEH001602HRPP3N00000
Cookies help us deliver our services. By using our services, you agree to our use of cookies.
OK
Learn more
Log in or Register to proceed
