Eval Kit for TFT 3.9" 480x128, CAN Bus interface with CUSTOMIZABLE CAN ID, 400cd/m², Capacitive touch panel (GG)

DESCRIPTION

    Link to 'SMART GUI BLIDER' INTRODUCTION & VIDEO

WL0F00039000QGAABSA00-FC is a 3.9" Smart Display CAN series TFT which is defined as a slave device, that is controlled by master device via CAN bus command to render display content on the display screen and return touch event data with protocol objects. WL0F00039000QGAABSA00-FC is integrated with a standard 3.9 inch Bar TFT module WF39-480128QD#007-FC and 4-layers PCBA with built-in firmware code which is developed by WINSTAR. This 3.9" Smart Display CAN series TFT is an easy-to-use product which allows customers to develop projects rapidly in cost-effective way. This 3.9” Smart Display can use computer with USB2CAN dongle or Raspberry Pi interface (PiCAN2) as HOST platform. WINSTAR already developed a Windows IDE for Smart Display GUI design. WINSTAR GUI builder software is designed for customers to simulate their GUI design in advance by using the drag-and-drop Widget preview function; furthermore, customers can create their ideal GUI by themselves by using this software. WINSTAR GUI builder software is supporting Windows system only; it can fulfill What You See Is What You Get (WYSIWYG).

WINSTAR Smart Display CAN Series is really a "smart" choice for customers. There are many important features and functions for the new released 3.9" smart display CAN TFT as below:

  • DC 5V working voltage, low power consumption for USB to drive.
  • Self testing after booting function.
  • CAN bus communication interface.
  • Support Custom CAN ID negotiation. Default baud rate is 250Kbps.
  • Built in 16MB flash memory, store the font and Object Dictionary Data.
  • Support capacitive touch panel (CTP).
  • Embedded buzzer controlled by Master Device.

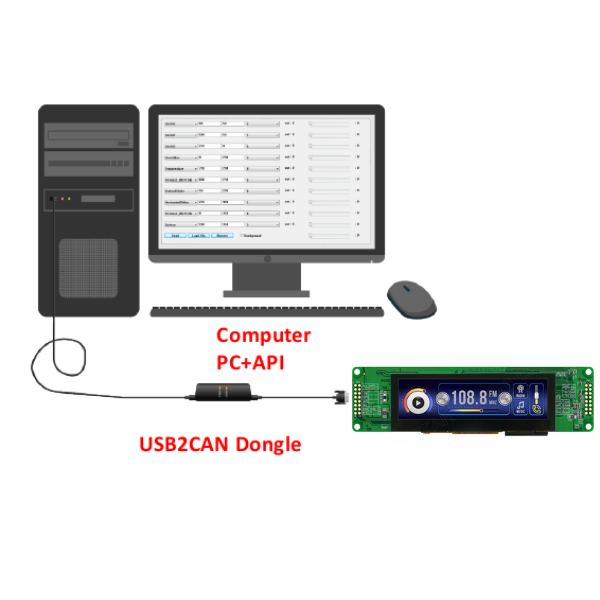

  • HOST can be used on multiple platforms, such as Computer (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2).
  • Design the UI without writing a line of code by WINSTARGUI builder! (►Link to GUI Builder Introduction)
  • Designed with STM32F series MCU and Support STMicroelectronics' (ST) software development tools.

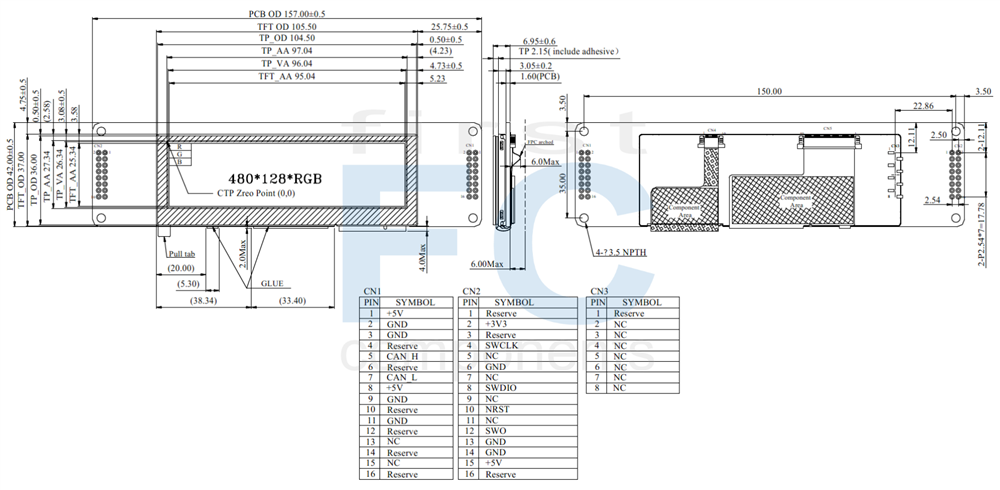

DRAWING

SPECIFICATIONS

General Specifications

ItemStandard ValueUnit
Operating voltage 5 Vdc
Communication Interface CAN bus Vpp
MCU STM32F750 N/A
Flash Memory 16 MB
Size 3.9 inch
Dot Matrix 480 x 128 x RGB (TFT) dots
Module dimension 105.5(W) x 37.0(H) x 5.13 mm
Active area 95.04 x 25.34 mm
Dot pitch 0.066(W)x 0.198(H) mm
Backlight Type TFT, Normally White, Transmissive
Viewing Angle 6 o'clock
Aspect Ratio Bar Type
Touch Panel Capacitive Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -10 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Supply Voltage For Analog VCC 4.75 5 5.25 V
Interface Operation Voltage ICC   350   mA



Bom

ItemDescription
LCM WF39-480128QD#007-FC
PCBA SV100039000QA00N0105



Interface Pin Function

CN1 definition

PinSymbolFunctionRemark
1 +5V Power supply 5V input Input
2 GND GND for USART interface Output
3 GND Power supply GND input Input
4 Reserve - -
5 CAN_H CAN bus D+ I/O
6 Reserve - -
7 CAN_L CAN bus D- I/O
8 +5V 5V output for USART interface Output
9 GND GND for USART interface Output
10 Reserve -
11 GND GND for USART interface Output
12 Reserve - -
13 NC - -
14 Reserve - -
15 NC - -
16 Reserve - -


CN2 definition

PinSymbolFunctionRemark
1 Reserve - -
2 +3V3 3.3V power for JTAG interface Output
3 Reserve - -
4 SWCLK CLK pin for JTAG interface Input
5 NC - -
6 GND GND for USART interface I/O
7 NC - -
8 SWDIO JTAG Serial Wire debug Data Input/Output interface I/O
9 NC - -
10 NRST Reset pin for JTAG interface Input
11 NC
12 SWO Data pin for JTAG interface I/O
13 GND GND for USART interface I/O
14 GND GND for USART interface I/O
15 +5V Power supply 5V input Input
16 Reserve - -


CN3 definition

PinSymbolFunctionRemark
1 Reserve - -
2-8 NC



Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode. The Display is designed to be easily connected to a controller network, and to operate with minimum setup or knowledge of the SDO configuration on the controllers.


Splash Screen

The default splash image is shown below.



Splash Screen - Winstar Can Display, Smart Display
This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.


Acquisition of Displayed Data

The Smart Display can acquire the data that it displays either using the CANopen SDO protocol, or using the CANopen PDO protocol. On Pre-operational mode, customers can set the coordinates of objects through SDO; On operational mode, customers can send data of objects through PDO.


Configuring the Display

Winstar Smart Display CAN series offers an out-of-the-box CANopen development experience that will lower customers' development costs and speed time-to-market expectations. The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas. The Smart Display comes with standard UI objects to get customers project off the ground quickly. If customers need custom UI objects support, our engineers are here to help. Send over your contents in PNG/JPG format, we will send over a new set of UI objects within 3~5 working days. The Smart Display is defined as a slave device, which is controlled by master device via CAN bus command to render display content on the display screen and return touch event data with protocol objects.
SKU: WWSSDEMO39Q-AA-31#
Brand: Winstar
Available: Yes
Accessory Kit
€142.10 excl tax

DESCRIPTION

    Link to 'SMART GUI BLIDER' INTRODUCTION & VIDEO

WL0F00039000QGAABSA00-FC is a 3.9" Smart Display CAN series TFT which is defined as a slave device, that is controlled by master device via CAN bus command to render display content on the display screen and return touch event data with protocol objects. WL0F00039000QGAABSA00-FC is integrated with a standard 3.9 inch Bar TFT module WF39-480128QD#007-FC and 4-layers PCBA with built-in firmware code which is developed by WINSTAR. This 3.9" Smart Display CAN series TFT is an easy-to-use product which allows customers to develop projects rapidly in cost-effective way. This 3.9” Smart Display can use computer with USB2CAN dongle or Raspberry Pi interface (PiCAN2) as HOST platform. WINSTAR already developed a Windows IDE for Smart Display GUI design. WINSTAR GUI builder software is designed for customers to simulate their GUI design in advance by using the drag-and-drop Widget preview function; furthermore, customers can create their ideal GUI by themselves by using this software. WINSTAR GUI builder software is supporting Windows system only; it can fulfill What You See Is What You Get (WYSIWYG).

WINSTAR Smart Display CAN Series is really a "smart" choice for customers. There are many important features and functions for the new released 3.9" smart display CAN TFT as below:

  • DC 5V working voltage, low power consumption for USB to drive.
  • Self testing after booting function.
  • CAN bus communication interface.
  • Support Custom CAN ID negotiation. Default baud rate is 250Kbps.
  • Built in 16MB flash memory, store the font and Object Dictionary Data.
  • Support capacitive touch panel (CTP).
  • Embedded buzzer controlled by Master Device.
  • HOST can be used on multiple platforms, such as Computer (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2).
  • Design the UI without writing a line of code by WINSTARGUI builder! (►Link to GUI Builder Introduction)
  • Designed with STM32F series MCU and Support STMicroelectronics' (ST) software development tools.



DRAWING

SPECIFICATIONS

General Specifications

ItemStandard ValueUnit
Operating voltage 5 Vdc
Communication Interface CAN bus Vpp
MCU STM32F750 N/A
Flash Memory 16 MB
Size 3.9 inch
Dot Matrix 480 x 128 x RGB (TFT) dots
Module dimension 105.5(W) x 37.0(H) x 5.13 mm
Active area 95.04 x 25.34 mm
Dot pitch 0.066(W)x 0.198(H) mm
Backlight Type TFT, Normally White, Transmissive
Viewing Angle 6 o'clock
Aspect Ratio Bar Type
Touch Panel Capacitive Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -10 +70
Storage Temperature TST -30 +80



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Supply Voltage For Analog VCC 4.75 5 5.25 V
Interface Operation Voltage ICC   350   mA



Bom

ItemDescription
LCM WF39-480128QD#007-FC
PCBA SV100039000QA00N0105



Interface Pin Function

CN1 definition

PinSymbolFunctionRemark
1 +5V Power supply 5V input Input
2 GND GND for USART interface Output
3 GND Power supply GND input Input
4 Reserve - -
5 CAN_H CAN bus D+ I/O
6 Reserve - -
7 CAN_L CAN bus D- I/O
8 +5V 5V output for USART interface Output
9 GND GND for USART interface Output
10 Reserve -
11 GND GND for USART interface Output
12 Reserve - -
13 NC - -
14 Reserve - -
15 NC - -
16 Reserve - -


CN2 definition

PinSymbolFunctionRemark
1 Reserve - -
2 +3V3 3.3V power for JTAG interface Output
3 Reserve - -
4 SWCLK CLK pin for JTAG interface Input
5 NC - -
6 GND GND for USART interface I/O
7 NC - -
8 SWDIO JTAG Serial Wire debug Data Input/Output interface I/O
9 NC - -
10 NRST Reset pin for JTAG interface Input
11 NC
12 SWO Data pin for JTAG interface I/O
13 GND GND for USART interface I/O
14 GND GND for USART interface I/O
15 +5V Power supply 5V input Input
16 Reserve - -


CN3 definition

PinSymbolFunctionRemark
1 Reserve - -
2-8 NC



Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode. The Display is designed to be easily connected to a controller network, and to operate with minimum setup or knowledge of the SDO configuration on the controllers.


Splash Screen

The default splash image is shown below.



Splash Screen - Winstar Can Display, Smart Display
This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.


Acquisition of Displayed Data

The Smart Display can acquire the data that it displays either using the CANopen SDO protocol, or using the CANopen PDO protocol. On Pre-operational mode, customers can set the coordinates of objects through SDO; On operational mode, customers can send data of objects through PDO.


Configuring the Display

Winstar Smart Display CAN series offers an out-of-the-box CANopen development experience that will lower customers' development costs and speed time-to-market expectations. The Smart Display can use wide-temperature are designed to support control applications in harsh operating conditions, which designed to be connected to a variety of different situation combinations, such as automotive, marine, power generation and oil-and-gas. The Smart Display comes with standard UI objects to get customers project off the ground quickly. If customers need custom UI objects support, our engineers are here to help. Send over your contents in PNG/JPG format, we will send over a new set of UI objects within 3~5 working days. The Smart Display is defined as a slave device, which is controlled by master device via CAN bus command to render display content on the display screen and return touch event data with protocol objects.
Products specifications
Brand Winstar
Size 3.9"
Resolution 480x128
Active Area (mm) 95.04x25.34
Color Full Color
Power supply 5V
Display Interface CAN Bus
View Angle 6H
Frame Yes
Touch Panel Capacitive
O. Temperature (°C) -10~70
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 3.9"
Resolution 480x128
Active Area (mm) 95.04x25.34
Color Full Color
Power supply 5V
Display Interface CAN Bus
View Angle 6H
Frame Yes
Touch Panel Capacitive
O. Temperature (°C) -10~70
Preferred - Not Preferred Preferred
