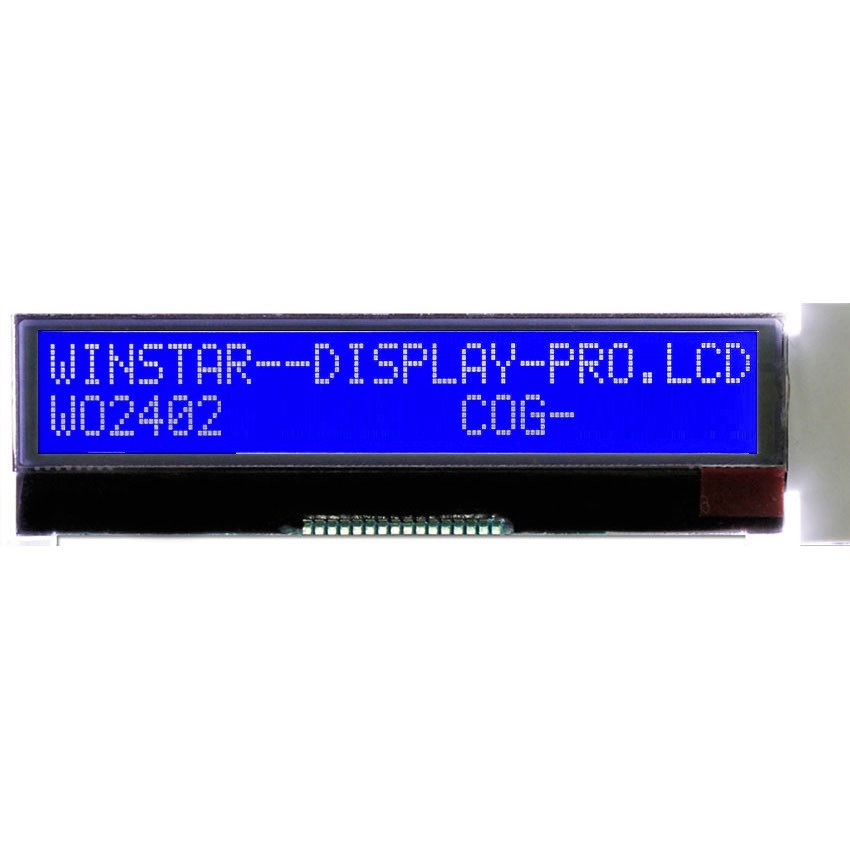

WO2402-84IA#FC

Character LCD 2.8" 24x2, B/L white, STN blue neg, Transmissive, COG, 3V/5V, Interface I2C, 6 O'clock

MOQ

After sample PO, MP MOQ 1Kpcs

DESCRIPTION

Winstar COG 24 characters x 2 lines standard LCD display is having the outline dimension 86.2 x 24.7 mm and VA size 72.3 x 11.84. This display is built in with RW1062 driver IC and its interface is I2C. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.

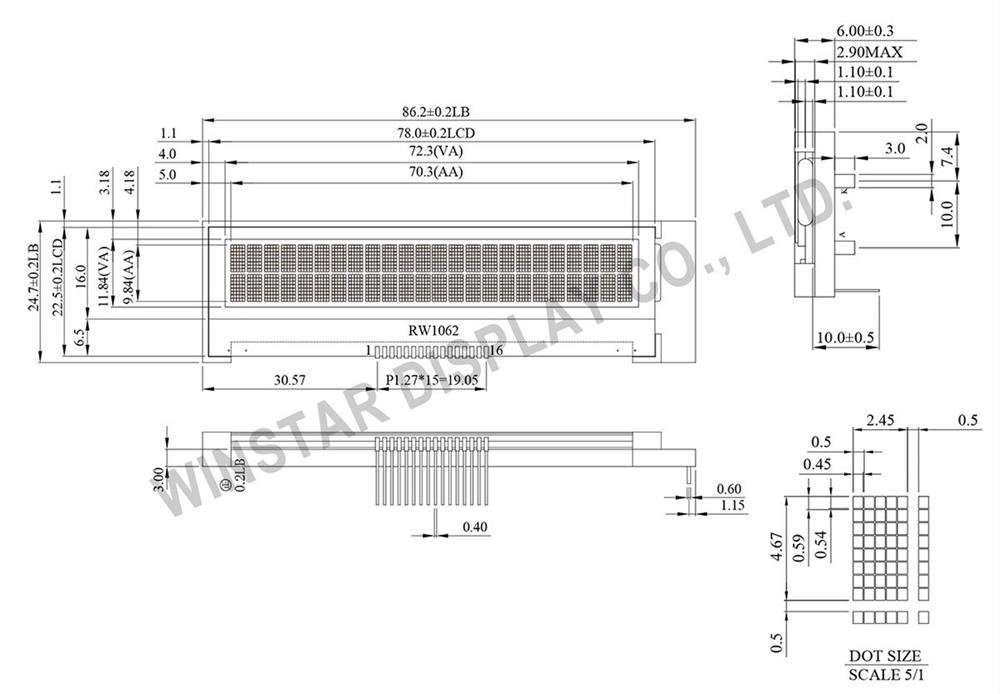

DRAWING

Winstar 24x2 COG LCD Display, I2C Interface LCD Display - WO2402A

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	/XRESET	Controller reset signal, Active Low
2~6	V0~V4	Bias voltage levels for LCD driving
7	D6(SID)	Serial input data
8	D7(SCLK)	Serial clock input
9	V_SS	Ground
10	V_DD	Power supply for logic
11	Vout	Positive Voltage output
12	CAP2N	DC/DC voltage converter.
13	CAP2P	DC/DC voltage converter.
14	CAP1P	DC/DC voltage converter.
15	CAP1N	DC/DC voltage converter.
16	VR	LCD Contrast Adjustment when IRS = “L”

Mechanical Data

Item	Standard Value	Unit
Module Dimension	86.2 × 24.7	mm
Viewing Area	72.3 × 11.84	mm
Dot Pitch	0.50 × 0.59	mm
Dot Size	0.45 × 0.54	mm

Electrical Characteristics

Item	Symbol	Standard value typ.	Unit
Input Voltage	VDD	3/5	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	Vo-Vss	4.50	V

SKU: WO2402-84IA#FC

Brand: Winstar

Available: No

Be the first to review this product

Price Breaks

Quantity

10+

25+

Price

€9.40

€6.90

€6.60

€6.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€9.40 excl tax

Overview
Specifications
Download
Contact Us

MOQ

After sample PO, MP MOQ 1Kpcs

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	/XRESET	Controller reset signal, Active Low
2~6	V0~V4	Bias voltage levels for LCD driving
7	D6(SID)	Serial input data
8	D7(SCLK)	Serial clock input
9	V_SS	Ground
10	V_DD	Power supply for logic
11	Vout	Positive Voltage output
12	CAP2N	DC/DC voltage converter.
13	CAP2P	DC/DC voltage converter.
14	CAP1P	DC/DC voltage converter.
15	CAP1N	DC/DC voltage converter.
16	VR	LCD Contrast Adjustment when IRS = “L”

Mechanical Data

Item	Standard Value	Unit
Module Dimension	86.2 × 24.7	mm
Viewing Area	72.3 × 11.84	mm
Dot Pitch	0.50 × 0.59	mm
Dot Size	0.45 × 0.54	mm

Electrical Characteristics

Item	Symbol	Standard value typ.	Unit
Input Voltage	VDD	3/5	V
Recommended LCD Driving Voltage for Normal Temp. Version module @25°C	Vo-Vss	4.50	V

Products specifications

Brand	Winstar
Size	2.8"
Resolution	24x2
Active Area (mm)	70.30x9.84
Dot Size	0.45x0.54
B/L color, LCD type	B/L white, STN blue neg
Power supply	3V/5V
Display Interface	I2C
Display IC	RW1062
Constructive Structure	COG
View Angle	6H
Frame	No
O. Temperature (°C)	-20~70
Display Connection	Pin Strip
Pin Nr.	16
Pin Pitch	1.27mm
Preferred - Not Preferred	Preferred
