WL0F00050000FNAAESA01-FC

TFT 5" 800x480, CAN Bus interface with CUSTOMIZABLE CAN ID & GPIO Support, High Brightness 1000cd/m², Wide View Angle (IPS), Super extended temperature, No touch

DESCRIPTION

NEW 2^nd generation 5” CAN BUS Smart Display which supports CUSTOMIZABLE CAN ID messages and GPIO functions.

Input voltage dynamic range 5V to 28V, typical voltage 12V.
Self-testing after booting function.
CAN bus communication interface.
Supports Custom CAN ID protocol, default baud rate is 250Kbps.
Built in 16MB external flash memory to store the font and Object Dictionary Data.
Without touch.
Build in buzzer and can be controlled by Master Device.

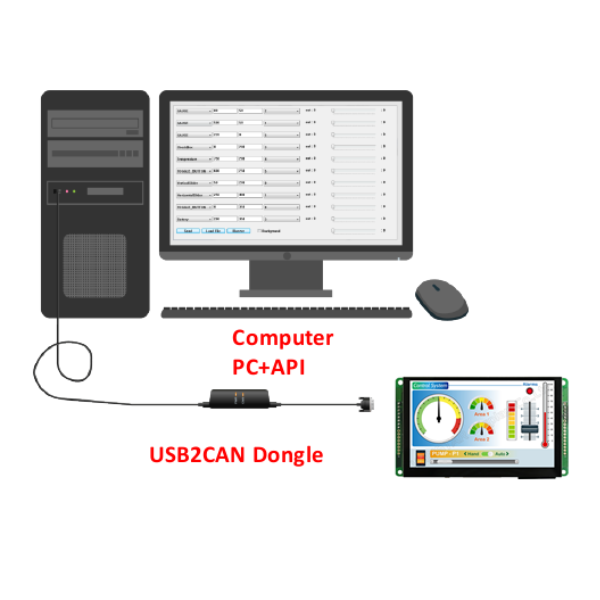

Demo set HOST can be used on multiple platforms, such as Computer (with USB to CAN Dongle), MCU, Raspberry Pi (with PiCAN2).
GPIO PIN support.
Design the UI without writing a line of code by Winstar GUI builder! (►Link to GUI Builder Introduction)

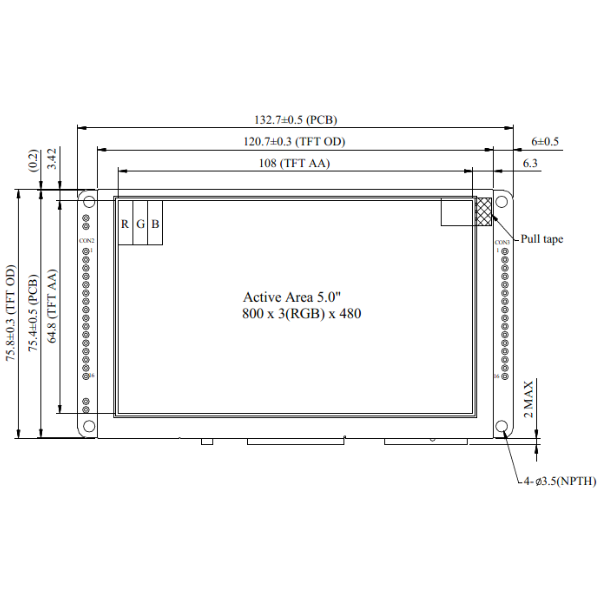

DRAWING

SPECIFICATIONS

General Specifications

General information

Item	Standard Value	Unit
Operating voltage	12	Vdc
Communication Interface	CAN bus	--
MCU	STM32F750	N/A
Flash Memory	16	MB
LCD display size	5.0	inch
Dot Matrix	800 x 3(RGB) x 480	dot
Module dimension	132.7(W) x 75.8(H) x 10.8(D)	mm
Active area	108(W) x 64.8(H)	mm
Pixel pitch	0.135(W) x 0.135(H)	mm
Brightness	Min: 850; Typ: 1000	cd/m2
LCD type	TFT, Normally Black, Transmissive
View Direction	80/80/80/80
Aspect Ratio	15:9
With/Without TP	Without TP
Surface	Anti-Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-30	－	+80	℃
Storage Temperature	TST	-30	－	+80	℃

Electrical Characteristics

Item	Symbol	Min	Typ	Max	Unit
Supply Voltage	VCC	5	12	28	V
Supply Current	ICC	710	270	120	mA
I/O pin Voltage	-	-	-	3.3	V

BOM

Item	Description
LCM	WF50-800480FD#0SPW0-FC
PCBA	SV10005R000FG00N0105

Interface Pin Function

CON2 definition:

Pin	Symbol	Function	Remark
1	VIN	Power supply 5V to 28V input	Input
2	GND	Power supply GND input	Input
3	CAN_H	CAN bus D+	I/O
4	CAN_L	CAN bus D-	I/O
5	GND	Power supply GND input	GND
6	GND	Power supply GND input	GND
7	Reserve	-	-
8	Reserve	-	-
9	VBUS	Power supply 5V input	Input
10	Reserve	-	-
11	Reserve	-	-
12	GND	Power supply GND input	Input
13	VIN	Power supply 5V to 28V input	Input
14	Reserve	-	-
15	Reserve	-	-
16	GND	Power supply GND input	Input

CON3 definition:

Pin	Symbol	Function	Remark
1	+3V3	3.3V power for JTAG interface	Output
2	SWCLK	CLK pin for JTAG interface	Input
3	GND	GND for JTAG interface	Output
4	SWDIO	Data pin fot JTAG interface	I/O
5	NRST	Reset pin for JTAG interface	Input
6	GND	GND	Input
7	WKUP	WKup,ADC,Timer,Event,I/O	Output
8	BOOT0	Lo: Internal flash boot (Default) Hi: External flash boot	TTL signal voltage is 3.3V
9	IO0	ADC,DAC,Timer,Event,I/O	TTL signal voltage is 3.3V
10	IO1	ADC,Timer,Event,I/O	TTL signal voltage is 3.3V
11	IO2	ADC,Timer,Event,I/O	TTL signal voltage is 3.3V
12	IO3	RST,Timer,Event,I/O	TTL signal voltage is 3.3V
13	IO4	RST,Timer,Event,I/O	TTL signal voltage is 3.3V
14	IO5	ADC,Timer,Event,I/O	TTL signal voltage is 3.3V
15	IO6	RST,Timer,Event,I/O	TTL signal voltage is 3.3V
16	IO7	RST,ADC,Event,I/O	TTL signal voltage is 3.3V

Display Usage

Functional description

Smart Display can be used to display the coordinate, status and data information provided by the connected HOST device. Customers can configure the position coordinates they want to display in normal operation mode.

The Display is designed to be easily connected to a controller network, and to operate with minimum setup or knowledge of the SDO configuration on the controllers.

Splash Screen

The default splash image is shown below.

Schermata iniziale

This product is produced as a generic product. If you require a custom splash image for your application, contact us to discuss.

Default Selection

Press the preferred application and hold for 3 seconds for the first time power on.

Default Selection

Example Screen Layout

Example Layout (Industry application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a industry application situation.

Esempio di layout dello schermo (Industria) - WL0F00050000FGAAASA01-FC

Example Layout (Vehicle automotive)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a vehicle automotive situation.

Esempio di layout dello schermo (Settore medico) - WL0F00050000FGAAASA01

Example Screen Layout (Medical application)

The screen layout described in this section is intended to demonstrate the settings of screen items that can be used in a Medical application situation.

Esempio di layout dello schermo (Settore automobilistico) - WL0F00050000FGAAASA01
