WH1601B-TFH-ET#

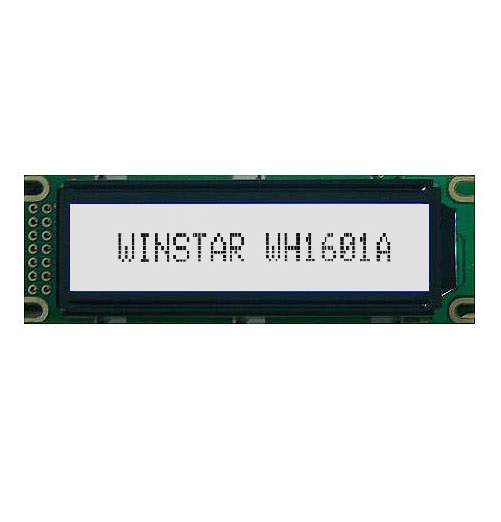

Character LCD 2.4" 16x1, B/L white, FSTN white pos, Transflective, COB, 5V, Interface 6800, Font Eng/Eu, 6 O'clock

DESCRIPTION

WH1601B is a 16x1 character monochrome LCD module which is built-in with ST7066 controller IC or equivalent; its default interface is 6800 4/8-bit parallel. This display 16x1 module is also available in SPI and I2C interface by using RW1063 controller IC.  The LCD panels are available in TN, STN, FSTN, FFSTN types and also with polarizer positive mode and negative mode options. There are different LED backlights are available in various colors including yellow/green, white, red, blue, green, amber, and RGB LEDs as well as no backlight option.

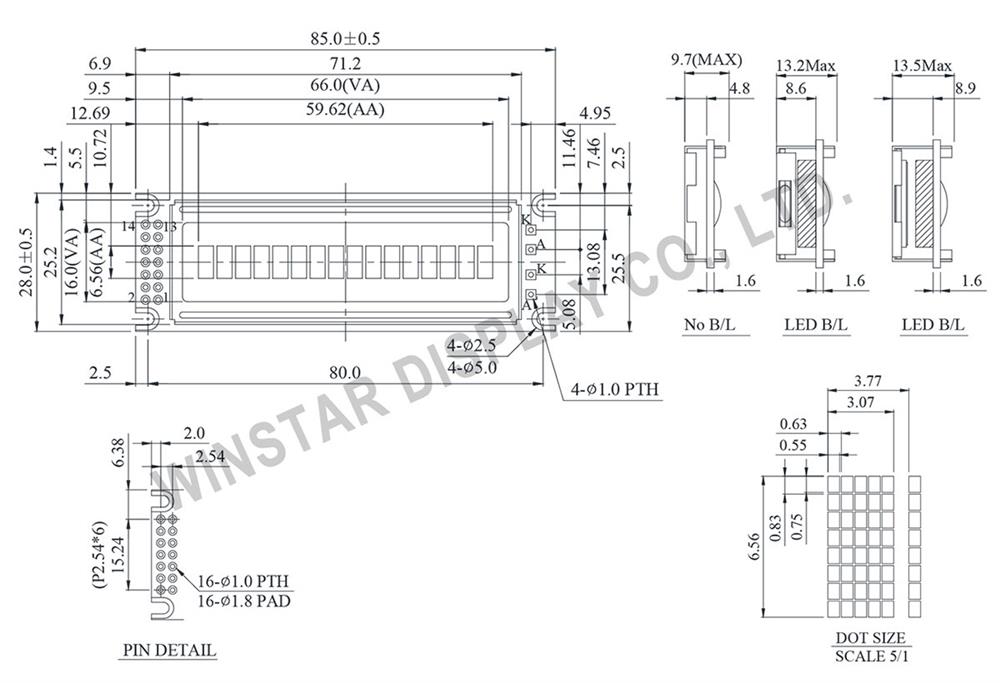

DRAWING



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line



Mechanical Data

ItemStandard ValueUnit
Module Dimension 85.0 × 28.0 mm
Viewing Area 66.0 × 16.0 mm
Mounting Hole 80.0 × 23.0 mm
Character Size 3.07 × 6.56 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.		Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp. Version module @25°C		 VDD-VO 4.35 V



Display Character Address Code

Display Position12345678910111213141516
DD RAM Address 00 01 　 　 　 　 　 07 40 41 　 　 　 　 　 47

SKU: WH1601B-TFH-ET#
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€5.90
€4.30
€4.10
€4.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€5.90 excl tax

DESCRIPTION

WH1601B is a 16x1 character monochrome LCD module which is built-in with ST7066 controller IC or equivalent; its default interface is 6800 4/8-bit parallel. This display 16x1 module is also available in SPI and I2C interface by using RW1063 controller IC.  The LCD panels are available in TN, STN, FSTN, FFSTN types and also with polarizer positive mode and negative mode options. There are different LED backlights are available in various colors including yellow/green, white, red, blue, green, amber, and RGB LEDs as well as no backlight option.



DRAWING



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground
2 VDD Power supply for logic
3 VO Contrast Adjustment
4 RS Data/ Instruction select signal
5 R/W Read/Write select signal
6 E Enable signal
7~14 DB0~DB7 Data bus line



Mechanical Data

ItemStandard ValueUnit
Module Dimension 85.0 × 28.0 mm
Viewing Area 66.0 × 16.0 mm
Mounting Hole 80.0 × 23.0 mm
Character Size 3.07 × 6.56 mm



Electrical Characteristics

ItemSymbolStandard Value
typ.		Unit
Input Voltage VDD 5.0 V
Recommended LCD Driving
Voltage for Normal Temp. Version module @25°C		 VDD-VO 4.35 V



Display Character Address Code

Display Position12345678910111213141516
DD RAM Address 00 01 　 　 　 　 　 07 40 41 　 　 　 　 　 47

Products specifications
Brand Winstar
Size 2.4"
Resolution 16x1
Active Area (mm) 59.62x6.56
Dot Size 0.55x0.75
B/L color, LCD type B/L white, FSTN white pos
Power supply 5V
Display Interface 6800
Display IC ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 14
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.4"
Resolution 16x1
Active Area (mm) 59.62x6.56
Dot Size 0.55x0.75
B/L color, LCD type B/L white, FSTN white pos
Power supply 5V
Display Interface 6800
Display IC ST7066
Constructive Structure COB
View Angle 6H
O. Temperature (°C) -20~70
Display Connection Soldering PAD
Pin Nr. 14
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
