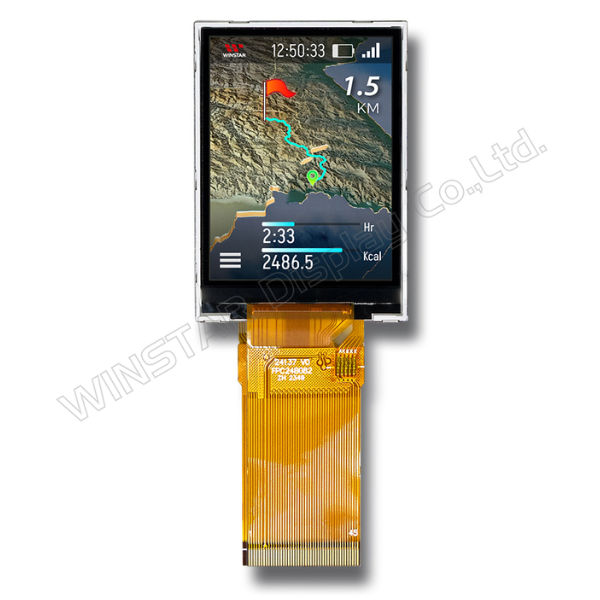

WFN0240DA2#0X0-FC

Picture of WFN0240DA2#0X0-FC Picture of WFN0240DA2#0X0-FC
TFT 2.4" 240x320 Portrait LCD Panel, Transflective, Interface MCU (RGB/Parallel/SPI) IC ST7789, 250cd/m², No touch

DESCRIPTION

The WINSTAR WFN0240DA2#0X0-FC is a 2.4-inch transflective TFT-LCD module designed to deliver excellent visibility in both indoor and outdoor environments. With a resolution of 240×320 dots and ST7789 driver IC, this display ensures stable performance and easy integration into various systems. It supports multiple interfaces including MCU, SPI, and RGB, offering design flexibility for engineers. Featuring anti-glare surface treatment and an operating temperature range of -20℃ to +70℃, this module is an ideal choice for handheld devices, industrial controllers, and medical equipment where reliable readability and durability are required.

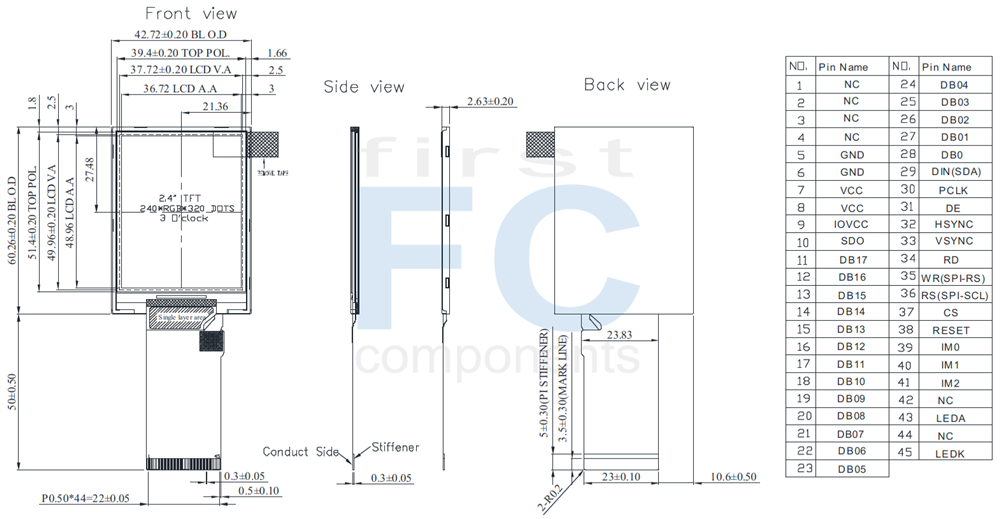

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 2.4 inch
Dot Matrix 240 × RGB × 320(TFT) dots
Module dimension 42.72 × 60.26 × 2.63 mm
Active area 36.72 × 48.96 mm
Pixel Pitch 0.153 × 0.153 mm
LCD type TFT, Normally White, Transflective
Viewing Direction 3 O'clock
TFT Interface 8/9/16/18Bit MCU
3/4SPI+16/18Bit RGB
3-line/4-line Serial
Backlight Type LED, Normally White
TFT Driver IC ST7789 or Equivalent
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

CharacteristicsSymbolMin.Typ.Max.Unit
Digital Supply Voltage VCI 2.4 3.3 3.6 V
Supply Voltage (Logic) IOVCC 1.65 1.8 3.3 V
Normal mode Current consumption IDD -- 5 10 mA
Level input voltage VIH 0.7 IOVCC   IOVCC V
VIL GND   0.3 IOVCC V
Level output voltage VOH 0.8 IOVCC   IOVCC V
VOL GND   0.2 IOVCC V


LED driving conditions

ItemSymbolMin.Typ.Max.Unit
LED current - - 80 - mA
LED voltage VLEDA 2.7 3.1 3.3 V
LED Life Time - 50,000 - - Hr



Interface Pin Function

LCM PIN Definition

Pin NoSymbolDescriptionI/O
1 NC No connection --
2 NC No connection --
3 NC No connection --
4 NC No connection --
5 GND Ground. P
6 GND Ground. P
7 VCC Supply voltage(3.3V). I
8 VCC Supply voltage(3.3V). I
9 IOVCC Power Supply for I/O System. I
10 SDO SPI interface output pin.
-The data is output on the falling edge of the SCL signal.
-If not used, let this pin open.		 O
11-28 DB17-DB0 18-bit parallel bi-directional data bus for MCU system and RGB i
nterface mode. Fix to GND level when not in use		 I/O
29 DIN(SDA) Serial input signal.
The data is latched on the rising edge of the SCL signal. fix this pin at IOVCC or GND when not in use.		 I/O
30 PCLK Dot clock signal for RGB interface operation.
Fix this pin at IOVCC or GND when not in use.		 I
31 DE Data enable signal for RGB interface operation.
fix this pin at IOVCC or GND when not in use.		 I
32 HSYNC Line synchronizing signal for RGB interface operation.
fix this pin at IOVCC or GND when not in use.		 I
33 VSYNC Frame synchronizing signal for RGB interface operation.
fix this pin at IOVCC or GND when not in use.		 I
34 RD Read enable in 8080 MCU parallel interface.
-If not used, please fix this pin at IOVCC or DGND.		 I
35 WR(SPI-RS) -Write enable in MCU parallel interface.
Display data/command selection pin in 4-line serial interface.
Second Data lane in 2 data lane serial interface.
-If not used, please fix this pin at IOVCC or DGND.		 I
36 RS(SPI-SCL) -Display data/command selection pin in parallel interface.
-This pin is used to be serial interface clock. RS=’1’: display data or parameter.
RS=’0’: command data.
-If not used, please fix this pin at IOVCC or DGND.		 I
37 CS Chip select input pin (“Low” enable).
fix this pin at IOVCC or GND when not in use.		 I
38 RESET This signal will reset the device and must be applied to properly
initialize the chip.		 I
39 IM0 18-bit parallel bi-directional data bus for MCU system and RGB
interface mode. Fix to GND level when not in use		 I
40 IM1
41 IM2
42 NC No connection -
43 LEDA Anode pin of backlight P
44 NC No connection -
45 LEDK Cathode pin OF backlight
SKU: WFN0240DA2#0X0-FC
Brand: Winstar
Available: No
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
25+
Price
€30.10
€24.10
€11.00
€10.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€30.10 excl tax

DESCRIPTION

The WINSTAR WFN0240DA2#0X0-FC is a 2.4-inch transflective TFT-LCD module designed to deliver excellent visibility in both indoor and outdoor environments. With a resolution of 240×320 dots and ST7789 driver IC, this display ensures stable performance and easy integration into various systems. It supports multiple interfaces including MCU, SPI, and RGB, offering design flexibility for engineers. Featuring anti-glare surface treatment and an operating temperature range of -20℃ to +70℃, this module is an ideal choice for handheld devices, industrial controllers, and medical equipment where reliable readability and durability are required.



DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 2.4 inch
Dot Matrix 240 × RGB × 320(TFT) dots
Module dimension 42.72 × 60.26 × 2.63 mm
Active area 36.72 × 48.96 mm
Pixel Pitch 0.153 × 0.153 mm
LCD type TFT, Normally White, Transflective
Viewing Direction 3 O'clock
TFT Interface 8/9/16/18Bit MCU
3/4SPI+16/18Bit RGB
3-line/4-line Serial
Backlight Type LED, Normally White
TFT Driver IC ST7789 or Equivalent
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

CharacteristicsSymbolMin.Typ.Max.Unit
Digital Supply Voltage VCI 2.4 3.3 3.6 V
Supply Voltage (Logic) IOVCC 1.65 1.8 3.3 V
Normal mode Current consumption IDD -- 5 10 mA
Level input voltage VIH 0.7 IOVCC   IOVCC V
VIL GND   0.3 IOVCC V
Level output voltage VOH 0.8 IOVCC   IOVCC V
VOL GND   0.2 IOVCC V


LED driving conditions

ItemSymbolMin.Typ.Max.Unit
LED current - - 80 - mA
LED voltage VLEDA 2.7 3.1 3.3 V
LED Life Time - 50,000 - - Hr



Interface Pin Function

LCM PIN Definition

Pin NoSymbolDescriptionI/O
1 NC No connection --
2 NC No connection --
3 NC No connection --
4 NC No connection --
5 GND Ground. P
6 GND Ground. P
7 VCC Supply voltage(3.3V). I
8 VCC Supply voltage(3.3V). I
9 IOVCC Power Supply for I/O System. I
10 SDO SPI interface output pin.
-The data is output on the falling edge of the SCL signal.
-If not used, let this pin open.		 O
11-28 DB17-DB0 18-bit parallel bi-directional data bus for MCU system and RGB i
nterface mode. Fix to GND level when not in use		 I/O
29 DIN(SDA) Serial input signal.
The data is latched on the rising edge of the SCL signal. fix this pin at IOVCC or GND when not in use.		 I/O
30 PCLK Dot clock signal for RGB interface operation.
Fix this pin at IOVCC or GND when not in use.		 I
31 DE Data enable signal for RGB interface operation.
fix this pin at IOVCC or GND when not in use.		 I
32 HSYNC Line synchronizing signal for RGB interface operation.
fix this pin at IOVCC or GND when not in use.		 I
33 VSYNC Frame synchronizing signal for RGB interface operation.
fix this pin at IOVCC or GND when not in use.		 I
34 RD Read enable in 8080 MCU parallel interface.
-If not used, please fix this pin at IOVCC or DGND.		 I
35 WR(SPI-RS) -Write enable in MCU parallel interface.
Display data/command selection pin in 4-line serial interface.
Second Data lane in 2 data lane serial interface.
-If not used, please fix this pin at IOVCC or DGND.		 I
36 RS(SPI-SCL) -Display data/command selection pin in parallel interface.
-This pin is used to be serial interface clock. RS=’1’: display data or parameter.
RS=’0’: command data.
-If not used, please fix this pin at IOVCC or DGND.		 I
37 CS Chip select input pin (“Low” enable).
fix this pin at IOVCC or GND when not in use.		 I
38 RESET This signal will reset the device and must be applied to properly
initialize the chip.		 I
39 IM0 18-bit parallel bi-directional data bus for MCU system and RGB
interface mode. Fix to GND level when not in use		 I
40 IM1
41 IM2
42 NC No connection -
43 LEDA Anode pin of backlight P
44 NC No connection -
45 LEDK Cathode pin OF backlight
Products specifications
Brand Winstar
Size 2.4"
Resolution 240x320
Active Area (mm) 36.72x48.96
Color Full Color
Display Interface MCU (RGB/Parallel/SPI)
Display IC ST7789
View Angle TN
Sunlight Readable Transflective
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 45
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.4"
Resolution 240x320
Active Area (mm) 36.72x48.96
Color Full Color
Display Interface MCU (RGB/Parallel/SPI)
Display IC ST7789
View Angle TN
Sunlight Readable Transflective
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 45
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
