WF52-480128CP#004-FC

Picture of WF52-480128CP#004-FC Picture of WF52-480128CP#004-FC
TFT 5.2" 480x128, Bar Type, Interface 8080 (MPU), 500cd/m², View direction 6H, No touch, IC MR6566

Description

WF52-480128CP#004-FC is a 5.2 inch Bar type TFT LCD featuring a controller board with screw holes on the PCB. The module has a resolution of 480×128 pixels and a brightness of 500 nits (typical value). WF52-480128CP#004-FC uses MR6566 driver IC supporting MCU 8080 8-bit interfaces. Its supply voltage for logic is 4.5V-5.5V with a typical value of 5V.

Customers using 240X64 (dots) STN with RA6963 controller IC can replace it with this new WF52-480128CP#004-FC module without changing the interfaces and firmware, easily upgrading your single-colored display to color TFT.

WF52-480128CP#004-FC can operate at temperatures from -20 to +70℃, and its storage temperatures cover from -30℃ to +80℃.

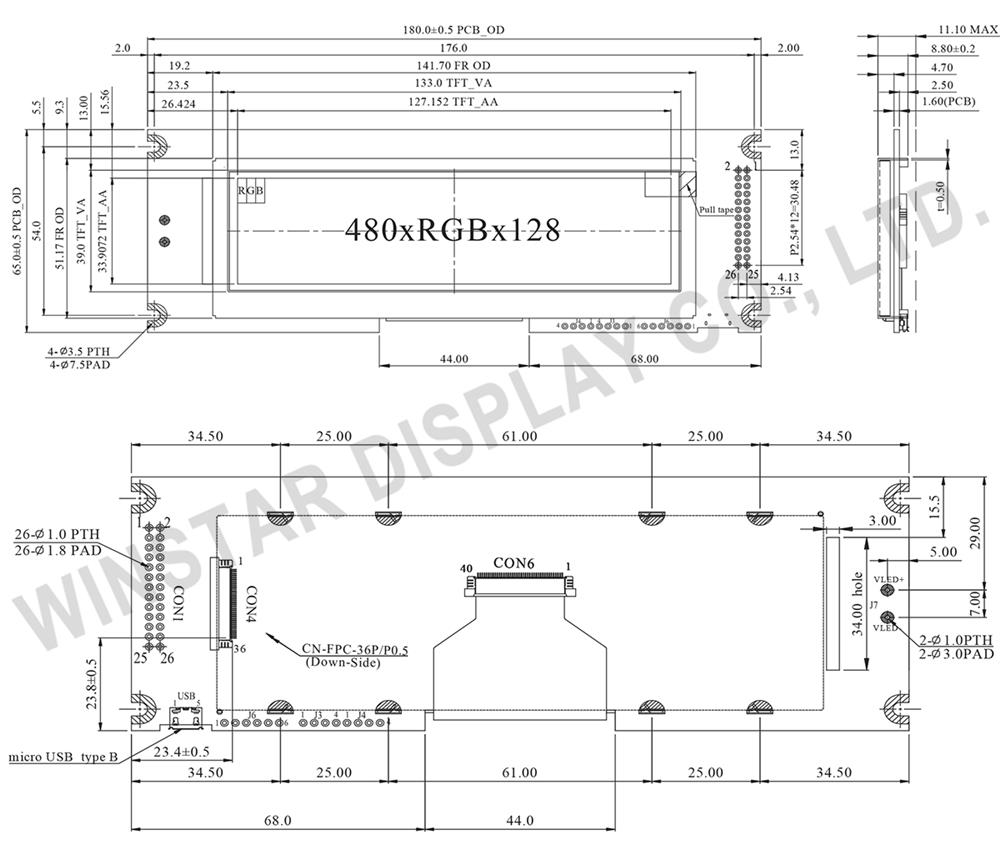

DRAWING

5.2 inch 480x128 Bar Type TFT LCD - WF52CTLBSDBN0

SPECIFICATIONS

Interface

LCM PIN Definition (CON4)
PinSymbolFunction
1 GND Ground
2 NC No connect
3 NC No connect
4 D/C Data/Command select
5 WR Write control
6 RD Read control
7 DB0 Data bus
8 DB1 Data bus
9 DB2 Data bus
10 DB3 Data bus
11 DB4 Data bus
12 DB5 Data bus
13 DB6 Data bus
14 DB7 Data bus
15~24 NC No Connect
25 CS Chip Select
26 RESET Reset
27 LR Right /Left selection; Default R/L is Pull High
28 UD Up/down selection; Default U/D is Pull High
29~32 NC No connection
33~34 GND Ground
35~36 VDD5V Power Supply (+5V)

LCM PIN Definition (CON1)
(MCU8080 the same with the WG24064A for RA6963 serial)
PinSymbolFunction
1 FG System round pin of the IC. Connect to system ground
2 GND Ground
3 VDD5V Power Supply (+5V)
4 NC No connect
5 WR Write control
6 RD Read control
7 CS Chip select
8 D/C Data/Command select
9 NC No connection
10 RESET Reset
11 DB0 Data bus
12 DB1 Data bus
13 DB2 Data bus
14 DB3 Data bus
15 DB4 Data bus
16 DB5 Data bus
17 DB6 Data bus
18 DB7 Data bus
19~20 NC No connection
21 VDD5V Power Supply (+5V)
22 GND Ground.
23~25 NC No connection
26 GND Ground

USB
PinSymbolFunction
1 5V Power 5V
2 D- Data line -
3 D+ Data line +
4 NC No connection
5 GND Power Ground



General Specifications

ItemDimensionUnit
Size 5.2 inch
Dot Matrix 480 × RGB × 128 dots
Module dimension 180.0 x 65.0 x 11.1 mm
Active area(AA) 127.152 × 33.9072 mm
Dot pitch 0.0883 × 0.2649 mm
LCD type TFT, Normally White, Transmissive
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio Bar Type
Backlight Type LED, Normally White
Controller IC MR6566
Interface Digital 8080 family MPU 8bit/16bit
Touch Panel Without touch panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Supply Voltage For LCM VDD 4.5 5.0 5.5 V
Supply Current For LCM IDD － 500 750 mA
LED Life Time   － 50,000 － Hr

SKU: WF52-480128CP#004-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€80.90
€72.90
€60.60

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€80.90 excl tax

Description

WF52-480128CP#004-FC is a 5.2 inch Bar type TFT LCD featuring a controller board with screw holes on the PCB. The module has a resolution of 480×128 pixels and a brightness of 500 nits (typical value). WF52-480128CP#004-FC uses MR6566 driver IC supporting MCU 8080 8-bit interfaces. Its supply voltage for logic is 4.5V-5.5V with a typical value of 5V.

Customers using 240X64 (dots) STN with RA6963 controller IC can replace it with this new WF52-480128CP#004-FC module without changing the interfaces and firmware, easily upgrading your single-colored display to color TFT.

WF52-480128CP#004-FC can operate at temperatures from -20 to +70℃, and its storage temperatures cover from -30℃ to +80℃.



DRAWING

5.2 inch 480x128 Bar Type TFT LCD - WF52CTLBSDBN0

SPECIFICATIONS

Interface

LCM PIN Definition (CON4)
PinSymbolFunction
1 GND Ground
2 NC No connect
3 NC No connect
4 D/C Data/Command select
5 WR Write control
6 RD Read control
7 DB0 Data bus
8 DB1 Data bus
9 DB2 Data bus
10 DB3 Data bus
11 DB4 Data bus
12 DB5 Data bus
13 DB6 Data bus
14 DB7 Data bus
15~24 NC No Connect
25 CS Chip Select
26 RESET Reset
27 LR Right /Left selection; Default R/L is Pull High
28 UD Up/down selection; Default U/D is Pull High
29~32 NC No connection
33~34 GND Ground
35~36 VDD5V Power Supply (+5V)

LCM PIN Definition (CON1)
(MCU8080 the same with the WG24064A for RA6963 serial)
PinSymbolFunction
1 FG System round pin of the IC. Connect to system ground
2 GND Ground
3 VDD5V Power Supply (+5V)
4 NC No connect
5 WR Write control
6 RD Read control
7 CS Chip select
8 D/C Data/Command select
9 NC No connection
10 RESET Reset
11 DB0 Data bus
12 DB1 Data bus
13 DB2 Data bus
14 DB3 Data bus
15 DB4 Data bus
16 DB5 Data bus
17 DB6 Data bus
18 DB7 Data bus
19~20 NC No connection
21 VDD5V Power Supply (+5V)
22 GND Ground.
23~25 NC No connection
26 GND Ground

USB
PinSymbolFunction
1 5V Power 5V
2 D- Data line -
3 D+ Data line +
4 NC No connection
5 GND Power Ground



General Specifications

ItemDimensionUnit
Size 5.2 inch
Dot Matrix 480 × RGB × 128 dots
Module dimension 180.0 x 65.0 x 11.1 mm
Active area(AA) 127.152 × 33.9072 mm
Dot pitch 0.0883 × 0.2649 mm
LCD type TFT, Normally White, Transmissive
View Direction 6 o'clock
Gray Scale Inversion Direction 12 o'clock
Aspect Ratio Bar Type
Backlight Type LED, Normally White
Controller IC MR6566
Interface Digital 8080 family MPU 8bit/16bit
Touch Panel Without touch panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

ItemSymbolMinTypMaxUnit
Supply Voltage For LCM VDD 4.5 5.0 5.5 V
Supply Current For LCM IDD － 500 750 mA
LED Life Time   － 50,000 － Hr

Products specifications
Brand Winstar
Size 5.2"
Resolution 480x128
Active Area (mm) 127.15x33.90
Color Full Color
Display Interface 8080
Display IC MR6566
View Angle TN
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 5.2"
Resolution 480x128
Active Area (mm) 127.15x33.90
Color Full Color
Display Interface 8080
Display IC MR6566
View Angle TN
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
