WF35-320240PD#005-FC

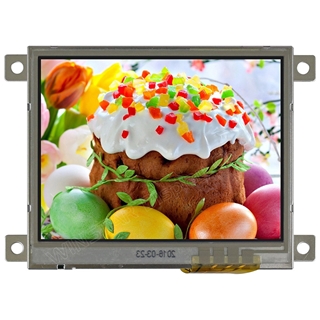

Picture of WF35-320240PD#005-FC Picture of WF35-320240PD#005-FC
TFT 3.5" 320x240, LCD + IC Controller, Interface MCU (Parallel) IC RA8875, 300cd/m², Frame, Resistive touch panel

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION



3.5 inch Winstar TFT P Series family with Resistive Touch Screen on module. This model is built in with RA8875 controller board plus an integrated 36 pin-out connector on board.  All Winstar TFT P Series are built in with 8 bit or 16 bit parallel interface options and already pre-defined pin no. 33 ~ 36 as backlight supply; so there is no need to design extra backlight circuit.  All of Winstar TFT P Series modules are built in backlight driver IC and support Chinese character, backlight brightness adjustment and Flash Memory.

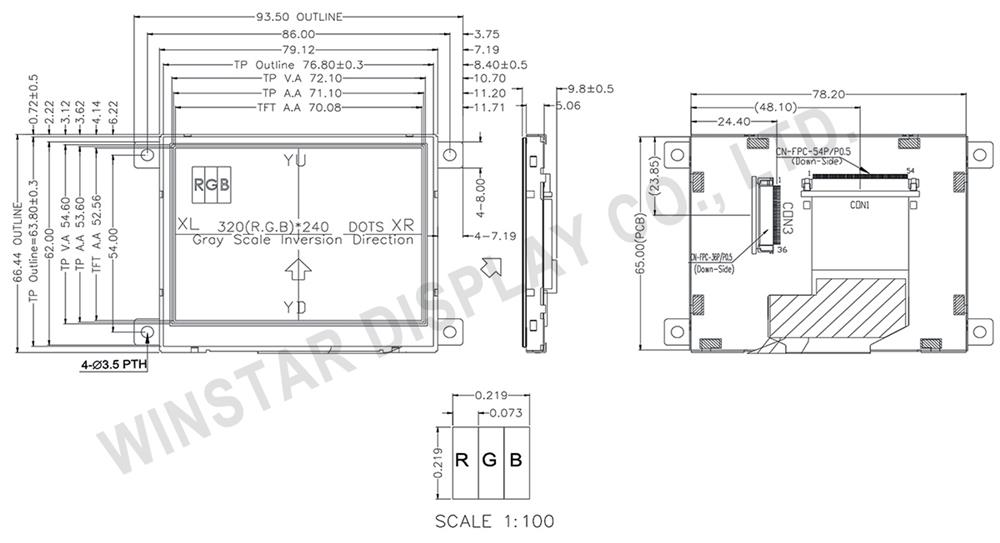

DRAWING







INTERFACE

PinSymbolFunction
1 GND System ground
2 VDD Power Supply : +3.3V
3 NC No connect
4 RS Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7~22 DB0~DB15 Data bus
23 WAIT Wait Signal Output(H:active)
24 RTP_INT RTP Interrupt
25 CS Chip select
26 RST Hardware reset
27~32 NC No connect
33~34 VLED- Power for LED backlight cathode
35~36 VLED+ Power for LED backlight anode
SKU: WF35-320240PD#005-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€62.30
€56.10
€47.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€62.30 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION



3.5 inch Winstar TFT P Series family with Resistive Touch Screen on module. This model is built in with RA8875 controller board plus an integrated 36 pin-out connector on board.  All Winstar TFT P Series are built in with 8 bit or 16 bit parallel interface options and already pre-defined pin no. 33 ~ 36 as backlight supply; so there is no need to design extra backlight circuit.  All of Winstar TFT P Series modules are built in backlight driver IC and support Chinese character, backlight brightness adjustment and Flash Memory.


DRAWING







INTERFACE

PinSymbolFunction
1 GND System ground
2 VDD Power Supply : +3.3V
3 NC No connect
4 RS Data/Command select
5 WR Write strobe signal
6 RD Read strobe signal
7~22 DB0~DB15 Data bus
23 WAIT Wait Signal Output(H:active)
24 RTP_INT RTP Interrupt
25 CS Chip select
26 RST Hardware reset
27~32 NC No connect
33~34 VLED- Power for LED backlight cathode
35~36 VLED+ Power for LED backlight anode
Date Notice Link/Description
2024/08/26 EOL End production of Innolux TN Panel for WF35-320240L/M/P/Q/Y Families



For more details, please contact us @ [email protected]

Products specifications
Brand Winstar
Size 3.5"
Resolution 320x240
Active Area (mm) 70.08x52.56
Color Full Color
Display Interface MCU (Parallel)
Display IC RA8875
View Angle TN
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 36
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 3.5"
Resolution 320x240
Active Area (mm) 70.08x52.56
Color Full Color
Display Interface MCU (Parallel)
Display IC RA8875
View Angle TN
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 36
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
