WEG010016AWPP5N00000

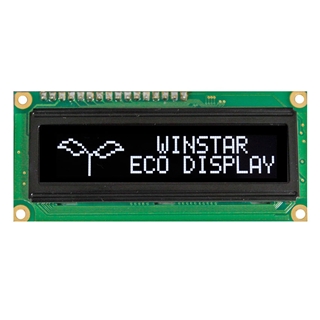

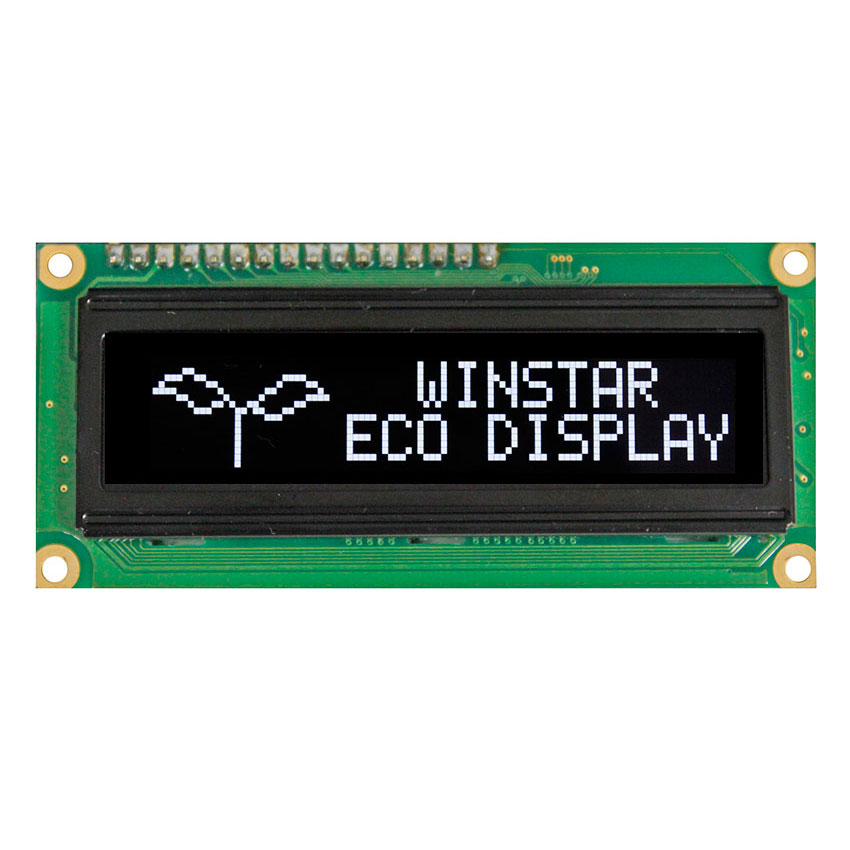

PMOLED 2.4" Graphic 100x16, White color, COB, 5V, Interface 6800, WS0010 IC, Frame, Glare

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

DESCRIPTION

The Organic Light-Emitting Diode (OLED) is a new generation technology, brighter and clearer images with more agile responding speed. This OLED 2.4" OLED display is made of 100 x 16 dots individual mono color. This OLED module is lightweight, low power and small, there are different interfaces optional; it is default 6800, available options 8080 and SPI. The module is made of COB OLEDs have the advantages of easily fixed modules on customers’ applications because of having PCB board on it.

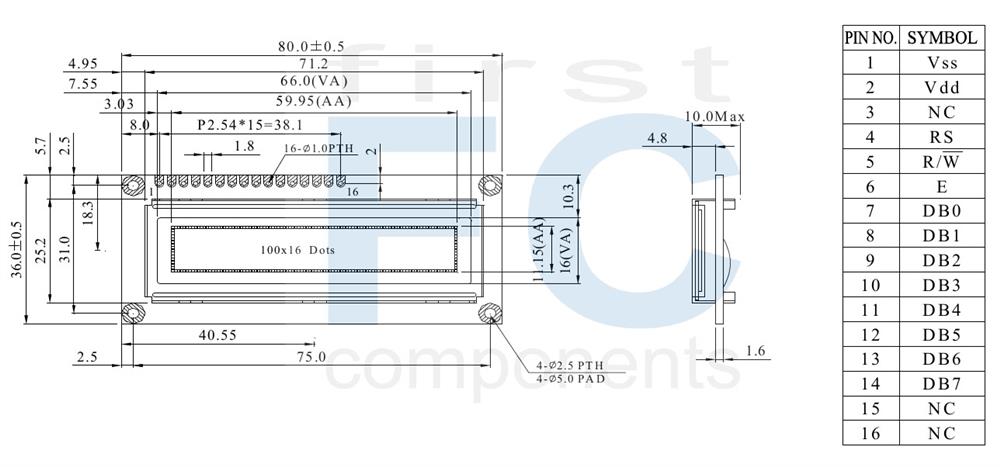

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	VSS	Ground Pin
2	VDD	Voltage for logic
3	NC	No Connection
4	RS	Register Select
5	R/W	Read/Write Control
6	E	Chip Enable Signal
7~14	DB0~DB7	Data Bus
15~16	NC	No Connection

Mechanical Data

Item	Dimension	Unit
Module dimension	80.0 × 36.0	mm
Viewing area	66.0 × 16.0	mm
Active area	59.95 × 11.15	mm
Dot pitch	0.60 × 0.70	mm
Dot size	0.55 × 0.65	mm

Electronical Characteristics

Item	Symbol	Condition	Standard Value			Unit
Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VDD	---	4.8	5.0	5.3	V

SKU: WEG10016W#A00-FC

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

25+

Price

€17.20

€12.60

€12.20

€11.80

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€17.20 excl tax

Overview
Specifications
Download
Contact Us

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	VSS	Ground Pin
2	VDD	Voltage for logic
3	NC	No Connection
4	RS	Register Select
5	R/W	Read/Write Control
6	E	Chip Enable Signal
7~14	DB0~DB7	Data Bus
15~16	NC	No Connection

Mechanical Data

Item	Dimension	Unit
Module dimension	80.0 × 36.0	mm
Viewing area	66.0 × 16.0	mm
Active area	59.95 × 11.15	mm
Dot pitch	0.60 × 0.70	mm
Dot size	0.55 × 0.65	mm

Electronical Characteristics

Item	Symbol	Condition	Standard Value			Unit
Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VDD	---	4.8	5.0	5.3	V

Products specifications

Brand	Winstar
Size	2.4"
Resolution	100x16
Active Area (mm)	59.95x11.15
Dot Size	0.55x0.65
Polarizer	Glare
Color	White
Power supply	5V
Display Interface	6800 (option 8080/SPI)
Display IC	WS0010
Constructive Structure	COB
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-40~80
Display Connection	Soldering PAD
Pin Nr.	16
Pin Pitch	2.54mm
Preferred - Not Preferred	Not Preferred
