WF24-240320LD#0SP3-FC

Picture of WF24-240320LD#0SP3-FC Picture of WF24-240320LD#0SP3-FC
TFT 2.4" 240x320 Portrait LCD Panel, Interface MCU (Parallel/SPI) IC ILI9341V, High Brightness 800cd/m², Wide View Angle (IPS), Capacitive touch panel I2C interface (GG, IC CF1124)

DESCRIPTION

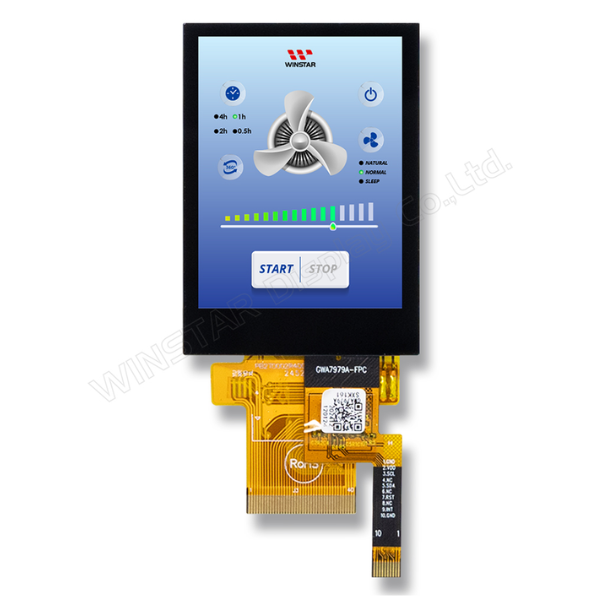

The WF24-240320LD#0SP3-FC is a 2.4-inch portrait IPS TFT display module with a resolution of 240x320 pixels and 800 nits brightness, delivering crisp and clear visuals under various lighting conditions. Designed with all-around 80° wide viewing angles and a contrast ratio of 800:1, it ensures vibrant image quality in compact vertical applications.

This model features an integrated Projected Capacitive Touch Panel (PCAP) and uses the CF1124 touch controller IC, supporting I²C interface for touch functionality. The display is driven by the widely adopted ILI9341V driver IC, supporting 80 MCU 8/16/9-bit parallel and 3-wire 9-bit / 4-wire 8-bit SPI serial interfaces. With a long LED backlight lifetime of over 30,000 hours and a robust operating temperature range, the WF24-240320LD#0SP3-FC is ideal for handheld devices, portable medical equipment, and outdoor control systems that require intuitive touch interaction in a portrait layout.

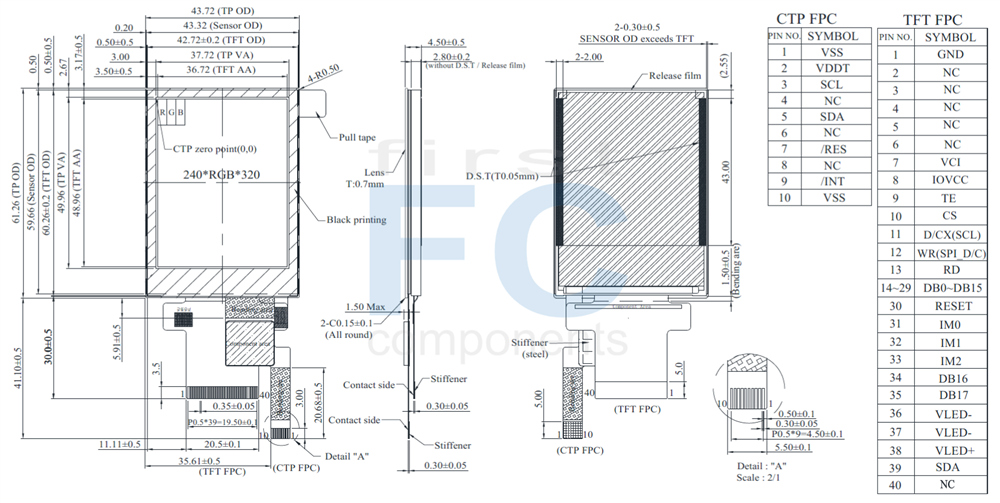

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 2.4 inch
Dot Matrix 240 × RGB × 320(TFT) dots
Module dimension 42.72(W) × 60.26(H) × 4.5(D) mm
Active area 36.72 × 48.96 mm
Pixel Pitch 0.153 × 0.153 mm
LCD type TFT, Normally Black, Transmissive
Controller IC ILI9341V or equivalent
Viewing angle 80/80/80/80
Aspect Ratio Portrait
Backlight Type LED, Normally White
CTP Driver IC CF1124 or equivalent
CTP Interface I2C
CTP FW Version 0x01
CTP Resolution 240 * 320
Touch Panel Projected Capacitive Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ItemSymbolMinTypMaxUnit
Supply Voltage For Analog VCI 2.5 — 3.3 V
Supply Voltage For Logic IOVCC 2.5 — 3.3 V
Supply Current For LCM ICC — 6 9 mA
Supply CTP VDDT 3.0 3.3 3.6 V
IDDT — 14.0 25.0 mA


LED driving conditions

ParameterSymbolMin.Typ.Max.Unit
LED current — — 40 — mA
LED voltage VBL+ 10.8 11.6 12.4 V
LED Life Time — 30,000 — — Hr



Interface Pin Function

LCM PIN Definition

NOSymbolFunctionI/O
1 GND Ground P
2-6 NC No connection -
7 VCI High voltage power supply for analog circuit blocks
(2.5 ~ 3.3 V)		 P
8 IOVCC Low voltage power supply for interface logic circuits
(2.5 ~ 3.3 V)		 P
9 TE Tearing effect output pin to synchronize MPU to frame writing, activated by S/W command. When this pin is not activated, this pin is low.
If not used, open this pin.		 O
10 CS Chip select signal. I
11 D/CX(SCL) (D/CX): This pin is used to select “Data or Command” in the parallel interface.
When DCX = 1, data is selected.
When DCX = 0, command is selected.
(SCL): This pin is used as the serial interface clock in 3-wire
9-bit/4-wire 8-bit serial data interface.
If not used, this pin should be connected to IOVCC or GND.		 I
12 WR(SPI_D/C) (WRX) - 8080-Ⅰ/8080-Ⅱ system: Serves as a write signal and writes data at the rising edge.
(D/CX) - 4-line system: Serves as the selector of command or parameter.
Fix to IOVCC level when not in use.		 I
13 RD 8080-Ⅰ/8080-Ⅱ system (RDX): Serves as a read signal and MCU read data at the rising edge.
Fix to IOVCC level when not in use.		 I
14-29 DB0~DB15 18-bit parallel bi-directional data bus for MCU system.
Fix to GND level when not in use.		 I/O
30 RESET This signal will reset the device and must be applied to properly initialize the chip.
Signal is active low.		 I
31 IM0 Select the MCU interface mode
IM2IM1IM0MCU-Interface ModeDB Pin in use
Register/ContentGRAM
0 0 0 80 MCU 8-bit bus
interface I		 D[7:0] D[7:0]
0 0 1 80 MCU 16-bit bus
interface I		 D[7:0] D[15:0]
0 1 0 80 MCU 9-bit bus
interface I		 D[7:0] D[8:0]
0 1 1 80 MCU 18-bit bus
interface I		 D[7:0] D[17:0]
1 0 1 3-wire 9-bit data serial
interface I		 SDA: In/OUT
1 1 0 4-wire 8-bit data serial
interface I		 SDA: In/OUT
MPU Parallel interface bus and serial interface select
If use RGB Interface must select serial interface.
* : Fix this pin at IOVCC or GND.		 I
32 IM1
33 IM2
34 DB16 18-bit parallel bi-directional data bus for MCU system and RGB
interface mode
Fix to GND level when not in use.		 I/O
35 DB17
36 VLED- Cathode of LED backlight. P
37 VLED- Cathode of LED backlight. P
38 VLED+ Anode of LED backlight. P
39 SDA SDA : Serial in/out signal.
The data is applied on the rising edge of the SCL signal.
If not used, fix this pin at IOVCC or GND.		 I/O
40 NC Not used, open this pin N


CTP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.3V
3 SCL I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit
SKU: WF24-240320LD#0SP3-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€24.60
€22.10
€20.80
€20.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€24.60 excl tax

DESCRIPTION

The WF24-240320LD#0SP3-FC is a 2.4-inch portrait IPS TFT display module with a resolution of 240x320 pixels and 800 nits brightness, delivering crisp and clear visuals under various lighting conditions. Designed with all-around 80° wide viewing angles and a contrast ratio of 800:1, it ensures vibrant image quality in compact vertical applications.

This model features an integrated Projected Capacitive Touch Panel (PCAP) and uses the CF1124 touch controller IC, supporting I²C interface for touch functionality. The display is driven by the widely adopted ILI9341V driver IC, supporting 80 MCU 8/16/9-bit parallel and 3-wire 9-bit / 4-wire 8-bit SPI serial interfaces. With a long LED backlight lifetime of over 30,000 hours and a robust operating temperature range, the WF24-240320LD#0SP3-FC is ideal for handheld devices, portable medical equipment, and outdoor control systems that require intuitive touch interaction in a portrait layout.



DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 2.4 inch
Dot Matrix 240 × RGB × 320(TFT) dots
Module dimension 42.72(W) × 60.26(H) × 4.5(D) mm
Active area 36.72 × 48.96 mm
Pixel Pitch 0.153 × 0.153 mm
LCD type TFT, Normally Black, Transmissive
Controller IC ILI9341V or equivalent
Viewing angle 80/80/80/80
Aspect Ratio Portrait
Backlight Type LED, Normally White
CTP Driver IC CF1124 or equivalent
CTP Interface I2C
CTP FW Version 0x01
CTP Resolution 240 * 320
Touch Panel Projected Capacitive Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

ItemSymbolMinTypMaxUnit
Supply Voltage For Analog VCI 2.5 — 3.3 V
Supply Voltage For Logic IOVCC 2.5 — 3.3 V
Supply Current For LCM ICC — 6 9 mA
Supply CTP VDDT 3.0 3.3 3.6 V
IDDT — 14.0 25.0 mA


LED driving conditions

ParameterSymbolMin.Typ.Max.Unit
LED current — — 40 — mA
LED voltage VBL+ 10.8 11.6 12.4 V
LED Life Time — 30,000 — — Hr



Interface Pin Function

LCM PIN Definition

NOSymbolFunctionI/O
1 GND Ground P
2-6 NC No connection -
7 VCI High voltage power supply for analog circuit blocks
(2.5 ~ 3.3 V)		 P
8 IOVCC Low voltage power supply for interface logic circuits
(2.5 ~ 3.3 V)		 P
9 TE Tearing effect output pin to synchronize MPU to frame writing, activated by S/W command. When this pin is not activated, this pin is low.
If not used, open this pin.		 O
10 CS Chip select signal. I
11 D/CX(SCL) (D/CX): This pin is used to select “Data or Command” in the parallel interface.
When DCX = 1, data is selected.
When DCX = 0, command is selected.
(SCL): This pin is used as the serial interface clock in 3-wire
9-bit/4-wire 8-bit serial data interface.
If not used, this pin should be connected to IOVCC or GND.		 I
12 WR(SPI_D/C) (WRX) - 8080-Ⅰ/8080-Ⅱ system: Serves as a write signal and writes data at the rising edge.
(D/CX) - 4-line system: Serves as the selector of command or parameter.
Fix to IOVCC level when not in use.		 I
13 RD 8080-Ⅰ/8080-Ⅱ system (RDX): Serves as a read signal and MCU read data at the rising edge.
Fix to IOVCC level when not in use.		 I
14-29 DB0~DB15 18-bit parallel bi-directional data bus for MCU system.
Fix to GND level when not in use.		 I/O
30 RESET This signal will reset the device and must be applied to properly initialize the chip.
Signal is active low.		 I
31 IM0 Select the MCU interface mode
IM2IM1IM0MCU-Interface ModeDB Pin in use
Register/ContentGRAM
0 0 0 80 MCU 8-bit bus
interface I		 D[7:0] D[7:0]
0 0 1 80 MCU 16-bit bus
interface I		 D[7:0] D[15:0]
0 1 0 80 MCU 9-bit bus
interface I		 D[7:0] D[8:0]
0 1 1 80 MCU 18-bit bus
interface I		 D[7:0] D[17:0]
1 0 1 3-wire 9-bit data serial
interface I		 SDA: In/OUT
1 1 0 4-wire 8-bit data serial
interface I		 SDA: In/OUT
MPU Parallel interface bus and serial interface select
If use RGB Interface must select serial interface.
* : Fix this pin at IOVCC or GND.		 I
32 IM1
33 IM2
34 DB16 18-bit parallel bi-directional data bus for MCU system and RGB
interface mode
Fix to GND level when not in use.		 I/O
35 DB17
36 VLED- Cathode of LED backlight. P
37 VLED- Cathode of LED backlight. P
38 VLED+ Anode of LED backlight. P
39 SDA SDA : Serial in/out signal.
The data is applied on the rising edge of the SCL signal.
If not used, fix this pin at IOVCC or GND.		 I/O
40 NC Not used, open this pin N


CTP PIN Definition

PinSymbolFunction
1 VSS Ground for analog circuit
2 VDDT Power Supply : +3.3V
3 SCL I2C clock input
4 NC No connect
5 SDA I2C data input and output
6 NC No connect
7 /RST External Reset, Low is active
8 NC No connect
9 /INT External interrupt to the host
10 VSS Ground for analog circuit
Products specifications
Brand Winstar
Size 2.4"
Resolution 240x320
Active Area (mm) 36.72x48.96
Color Full Color
Display Interface MCU (Parallel/SPI)
Display IC ILI9341V
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller CF1124
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.4"
Resolution 240x320
Active Area (mm) 36.72x48.96
Color Full Color
Display Interface MCU (Parallel/SPI)
Display IC ILI9341V
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller CF1124
Preferred - Not Preferred Preferred
