WAA0290YA8#A2N0AA-FC

E-Paper 2.9" 296x128, Color Black/Red/Yellow on White, Interface SPI

DESCRIPTION

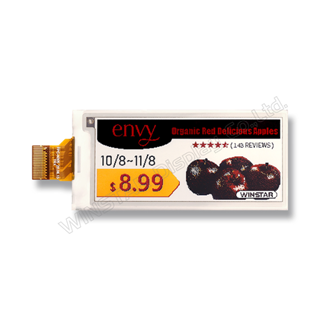

WAA0290YA8#A2N0XXX000-FC is a 2.9" Electronic Paper Display (EPD). The display is capable of displaying black, white, yellow, and red images depending on the associated lookup table used. The 2.9-inch active area contains 128×296 pixels. The circuitry on the panel includes an integrated gate and source driver, timing controller, oscillator, DC-DC boost circuit, memory to store the frame buffer and lookup tables, and additional circuitry to control VCOM and BORDER settings.

Features:

  • High red and yellow color
  • High contrast
  • High reflectance
  • Ultra-wide viewing angle
  • Ultra-low power consumption
  • Pure reflective mode
  • Bi-stable display
  • Antiglare hard-coated front surface
  • Low current deep sleep mode
  • On-chip display RAM
  • Waveform stored in on-chip OTP
  • Serial peripheral interface available
  • On-chip oscillator
  • On-chip booster and regulator control for generating VCOM, Gate, and Source driving voltage
  • I2C signal master interface to read external temperature sensor
  • Available in COG package



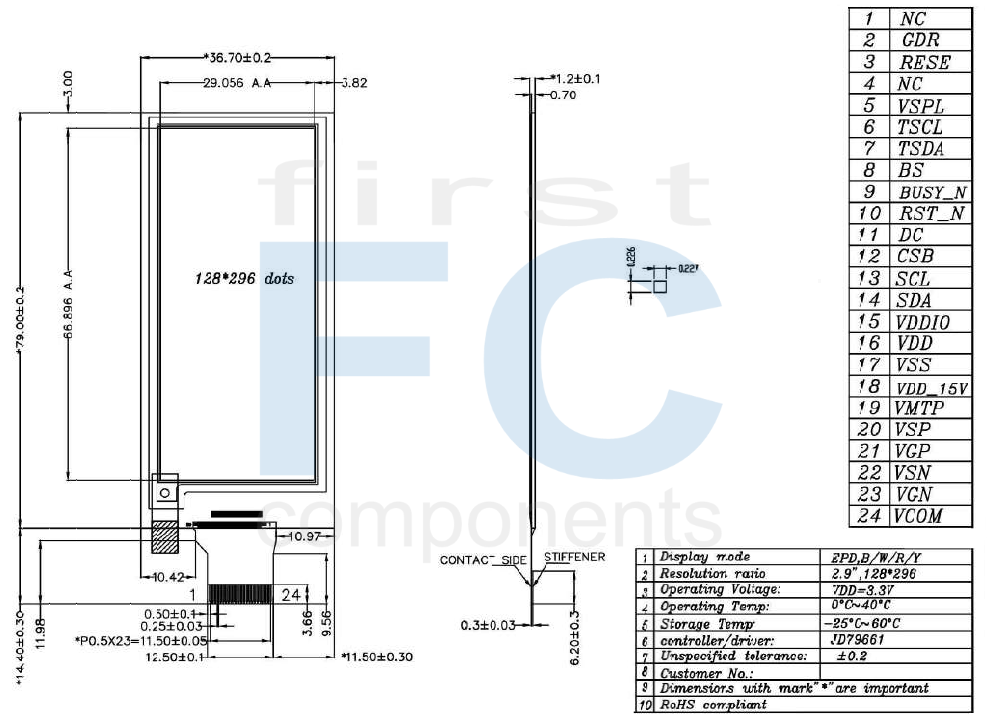

DRAWING

SPECIFICATIONS

General Specifications

ParameterSpecificationsUnit
Screen Size 2.9 Inch
Display Resolution 128(H)×296(V) Pixel
Active Area 29.056×66.896 mm
Pixel Pitch 0.226×0.227 mm
Pixel Configuration Rectangle
Outline Dimension 36.7(H) × 79.0 (V) × 1.2(D) mm
Module Weight 5.09±0.5 g



Electrical Characteristics

Absolute Maximum Ratings

ParameterSymbolRatingUnit
Logic supply voltage VDD, AVDD,VDDIO,
VDD1,VPP
-0.3 to +6.0 V
Logic Input voltage VI -0.3 to VDDIO+0.3 V
Operating Temp range TOPR 0 to +40 ºC
Storage Temp range TSTG -25 to +70 ºC
Optimal Storage Humidity HSTGo 55±10 %RH



Input /Output Pin Assignment

No.NameI/ODescription
1 NC   Do not connect with other NC pins
2 GDR O This pin is N-MOS gate control.
3 RESE P Current sense input for control loop.
4 NC NC Do not connect with other NC pins
5 VSPL P Positive source voltage
6 TSCL O I2C clock for external temperature sensor
(I2C interface need external pull high resistance.) Must pull high or low if not used.
7 TSDA I/O I2C data for external temperature sensor
(I2C interface need external pull high resistance.) Must pull high or low if not used.(Default low)
8 BS I Input interface setting.
9 BUSY_N O This pin indicates the driver status.
10 RST_N I Global reset pin. Low reset. (normal pull high)
11 DC I Serial communication Command/Data input
12 CSB I Serial communication chip select.
13 SCL I Serial communication clock input.
14 SDA I/O Serial communication data input.
15 VDDIO P IO voltage supply
16 VDD P Digital/Analog power.
17 VSS P Ground
18 VDD_15V P 1.5V voltage input &output
19 VMTP P MTP program power (10.1V)
20 VSP P Positive source voltage
21 VGP P Positive gate voltage
22 VSN P Negative Source driving voltage
23 VGN P Negative gate voltage
24 VCOM O VCOM driving voltage


Note: I: Input, O: Output, P: Power, D: Dummy, S: Shorted line, M: Mark, PI: Power input, PO: Power output, I/O: Input / Output, PS: Power Setting, C: Capacitor pin.

SKU: WAA0290YA8#A2N0AA-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
Price
€16.40
€12.10

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€16.40 excl tax

DESCRIPTION

WAA0290YA8#A2N0XXX000-FC is a 2.9" Electronic Paper Display (EPD). The display is capable of displaying black, white, yellow, and red images depending on the associated lookup table used. The 2.9-inch active area contains 128×296 pixels. The circuitry on the panel includes an integrated gate and source driver, timing controller, oscillator, DC-DC boost circuit, memory to store the frame buffer and lookup tables, and additional circuitry to control VCOM and BORDER settings.

Features:

  • High red and yellow color
  • High contrast
  • High reflectance
  • Ultra-wide viewing angle
  • Ultra-low power consumption
  • Pure reflective mode
  • Bi-stable display
  • Antiglare hard-coated front surface
  • Low current deep sleep mode
  • On-chip display RAM
  • Waveform stored in on-chip OTP
  • Serial peripheral interface available
  • On-chip oscillator
  • On-chip booster and regulator control for generating VCOM, Gate, and Source driving voltage
  • I2C signal master interface to read external temperature sensor
  • Available in COG package



DRAWING

SPECIFICATIONS

General Specifications

ParameterSpecificationsUnit
Screen Size 2.9 Inch
Display Resolution 128(H)×296(V) Pixel
Active Area 29.056×66.896 mm
Pixel Pitch 0.226×0.227 mm
Pixel Configuration Rectangle
Outline Dimension 36.7(H) × 79.0 (V) × 1.2(D) mm
Module Weight 5.09±0.5 g



Electrical Characteristics

Absolute Maximum Ratings

ParameterSymbolRatingUnit
Logic supply voltage VDD, AVDD,VDDIO,
VDD1,VPP
-0.3 to +6.0 V
Logic Input voltage VI -0.3 to VDDIO+0.3 V
Operating Temp range TOPR 0 to +40 ºC
Storage Temp range TSTG -25 to +70 ºC
Optimal Storage Humidity HSTGo 55±10 %RH



Input /Output Pin Assignment

No.NameI/ODescription
1 NC   Do not connect with other NC pins
2 GDR O This pin is N-MOS gate control.
3 RESE P Current sense input for control loop.
4 NC NC Do not connect with other NC pins
5 VSPL P Positive source voltage
6 TSCL O I2C clock for external temperature sensor
(I2C interface need external pull high resistance.) Must pull high or low if not used.
7 TSDA I/O I2C data for external temperature sensor
(I2C interface need external pull high resistance.) Must pull high or low if not used.(Default low)
8 BS I Input interface setting.
9 BUSY_N O This pin indicates the driver status.
10 RST_N I Global reset pin. Low reset. (normal pull high)
11 DC I Serial communication Command/Data input
12 CSB I Serial communication chip select.
13 SCL I Serial communication clock input.
14 SDA I/O Serial communication data input.
15 VDDIO P IO voltage supply
16 VDD P Digital/Analog power.
17 VSS P Ground
18 VDD_15V P 1.5V voltage input &output
19 VMTP P MTP program power (10.1V)
20 VSP P Positive source voltage
21 VGP P Positive gate voltage
22 VSN P Negative Source driving voltage
23 VGN P Negative gate voltage
24 VCOM O VCOM driving voltage


Note: I: Input, O: Output, P: Power, D: Dummy, S: Shorted line, M: Mark, PI: Power input, PO: Power output, I/O: Input / Output, PS: Power Setting, C: Capacitor pin.

Products specifications
Brand Winstar
Size 2.9"
Resolution 296x128
Active Area (mm) 29.05x66.89
Dot Size 0.22x0.22
Color Black/Red/Yellow on White
Display Interface SPI
Display IC JD79661
O. Temperature (°C) 0~40
Display Connection FPC for ZIF Connector
Pin Nr. 24
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
