WAA0290BA8#A2N4AA-FC

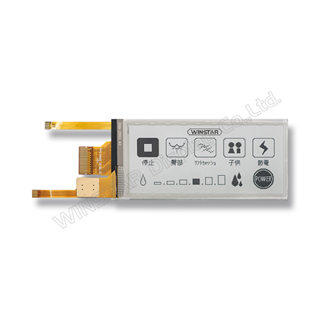

Picture of WAA0290BA8#A2N4AA-FC Picture of WAA0290BA8#A2N4AA-FC
E-Paper 2.9" 296x128, Color Black on White, Interface SPI, Capacitive Touch Panel I2C interface (IC FT6336U) with Front-Light

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

WAA0290BA8#A2N4AA-FC is a 2.9" Electronic Paper Display (EPD) with a capacitive touch panel, a front-light panel, and a reference system design. The display is capable of showing images in 1-bit black and white with full display capabilities. The 2.9-inch active area has a resolution of 296x128 pixels.

This module is a TFT-array-driven electrophoresis display with integrated circuits, including a gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC converter, SRAM, LUT, and VCOM. The module is suitable for use in portable electronic devices, such as Electronic Shelf Label (ESL) systems.

Features:

  • 296x128 pixel display
  • High contrast
  • High reflectance
  • Ultra-wide viewing angle
  • Ultra-low power consumption
  • Pure reflective mode
  • Bi-stable display
  • Commercial temperature range
  • Supports both landscape and portrait modes
  • Hard-coat, anti-glare display surface
  • Ultra-low current consumption in deep sleep mode
  • On-chip display RAM
  • Waveforms can be stored in on-chip OTP memory or written by the MCU
  • Serial Peripheral Interface (SPI) support
  • On-chip oscillator
  • On-chip booster and regulator control for generating VCOM, Gate, and Source driving voltages
  • I2C master interface for reading external temperature sensor
  • Built-in temperature sensor

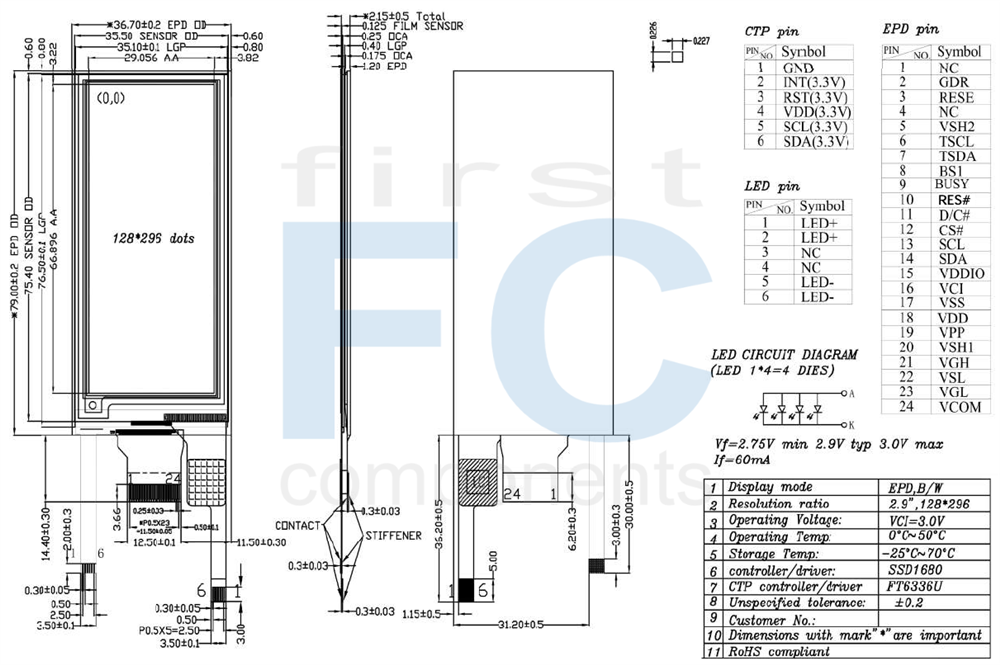

DRAWING

SPECIFICATIONS

General Specifications

ParameterSpecificationsUnit
Screen Size 2.9 Inch
Display Resolution 296(H)×128(V) Pixel
Active Area 29.056(H)×66.896(V) mm
Pixel Pitch 0.227×0.226 mm
Pixel Configuration Rectangle
Outline Dimension 36.7(H) × 79.0 (V) × 2.15(D) mm
Module Weight 5.5±0.5 g



Electrical Characteristics

Absolute Maximum Ratings

ParameterSymbolRatingUnit
Logic supply voltage VCI -0.5 to +4.0 V
Logic Input voltage VIN -0.5 to VCI +0.5 V
Logic Output voltage VOUT -0.5 to VCI +0.5 V
Operating Temp range TOPR 0 to +50 ºC
Storage Temp range TSTG -25 to+70 ºC
Optimal Storage Temp TSTGo 23±2 ºC
Optimal Storage Humidity HSTGo 55±10 %RH



Input /Output Pin Assignment

No.NameI/ODescription
1 NC   Do not connect with other NC pins
2 GDR O N-Channel MOSFET Gate Drive Control
3 RESE I Current Sense Input for the Control Loop
4 NC NC Do not connect with other NC pins
5 VSH2 C Positive Source driving voltage(Red)
6 TSCL O I2C Interface to digital temperature sensor Clock pin
7 TSDA I/O I2C Interface to digital temperature sensor Data pin
8 BS1 I Bus Interface selection pin
9 BUSY O Busy state output pin
10 RES# I Reset signal input. Active Low.
11 D/C# I data /Command control pin
12 CS# I Chip select input pin
13 SCL I Serial Clock pin (SPI)
14 SDA I/O Serial Data pin (SPI)
15 VDDIO P power Supply for interface logic pins It should be connected with VCI
16 VCI P Power Supply for the chip
17 VSS P Ground
18 VDD C Core logic power pin VDD can be regulated internally from VCI. A capacitor should be connected between VDD and VSS
19 VPP P FOR TEST
20 VSH1 C Positive Source driving voltage
21 VGH C Power Supply pin for Positive Gate driving voltage and VSHI
22 VSL C Negative Source driving voltage
23 VGL C Power Supply pin for Negative Gate driving voltage VCOM and VSL
24 VCOM C VCOM driving voltage


Note: I: Input, O: Output, P: Power, D: Dummy, S: Shorted line, M: Mark, PI: Power input, PO: Power output, I/O: Input / Output, PS: Power Setting, C: Capacitor pin.

SKU: WAA0290BA8#A2N4AA-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
Price
€37.60
€30.10

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€37.60 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

WAA0290BA8#A2N4AA-FC is a 2.9" Electronic Paper Display (EPD) with a capacitive touch panel, a front-light panel, and a reference system design. The display is capable of showing images in 1-bit black and white with full display capabilities. The 2.9-inch active area has a resolution of 296x128 pixels.

This module is a TFT-array-driven electrophoresis display with integrated circuits, including a gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC converter, SRAM, LUT, and VCOM. The module is suitable for use in portable electronic devices, such as Electronic Shelf Label (ESL) systems.

Features:

  • 296x128 pixel display
  • High contrast
  • High reflectance
  • Ultra-wide viewing angle
  • Ultra-low power consumption
  • Pure reflective mode
  • Bi-stable display
  • Commercial temperature range
  • Supports both landscape and portrait modes
  • Hard-coat, anti-glare display surface
  • Ultra-low current consumption in deep sleep mode
  • On-chip display RAM
  • Waveforms can be stored in on-chip OTP memory or written by the MCU
  • Serial Peripheral Interface (SPI) support
  • On-chip oscillator
  • On-chip booster and regulator control for generating VCOM, Gate, and Source driving voltages
  • I2C master interface for reading external temperature sensor
  • Built-in temperature sensor



DRAWING

SPECIFICATIONS

General Specifications

ParameterSpecificationsUnit
Screen Size 2.9 Inch
Display Resolution 296(H)×128(V) Pixel
Active Area 29.056(H)×66.896(V) mm
Pixel Pitch 0.227×0.226 mm
Pixel Configuration Rectangle
Outline Dimension 36.7(H) × 79.0 (V) × 2.15(D) mm
Module Weight 5.5±0.5 g



Electrical Characteristics

Absolute Maximum Ratings

ParameterSymbolRatingUnit
Logic supply voltage VCI -0.5 to +4.0 V
Logic Input voltage VIN -0.5 to VCI +0.5 V
Logic Output voltage VOUT -0.5 to VCI +0.5 V
Operating Temp range TOPR 0 to +50 ºC
Storage Temp range TSTG -25 to+70 ºC
Optimal Storage Temp TSTGo 23±2 ºC
Optimal Storage Humidity HSTGo 55±10 %RH



Input /Output Pin Assignment

No.NameI/ODescription
1 NC   Do not connect with other NC pins
2 GDR O N-Channel MOSFET Gate Drive Control
3 RESE I Current Sense Input for the Control Loop
4 NC NC Do not connect with other NC pins
5 VSH2 C Positive Source driving voltage(Red)
6 TSCL O I2C Interface to digital temperature sensor Clock pin
7 TSDA I/O I2C Interface to digital temperature sensor Data pin
8 BS1 I Bus Interface selection pin
9 BUSY O Busy state output pin
10 RES# I Reset signal input. Active Low.
11 D/C# I data /Command control pin
12 CS# I Chip select input pin
13 SCL I Serial Clock pin (SPI)
14 SDA I/O Serial Data pin (SPI)
15 VDDIO P power Supply for interface logic pins It should be connected with VCI
16 VCI P Power Supply for the chip
17 VSS P Ground
18 VDD C Core logic power pin VDD can be regulated internally from VCI. A capacitor should be connected between VDD and VSS
19 VPP P FOR TEST
20 VSH1 C Positive Source driving voltage
21 VGH C Power Supply pin for Positive Gate driving voltage and VSHI
22 VSL C Negative Source driving voltage
23 VGL C Power Supply pin for Negative Gate driving voltage VCOM and VSL
24 VCOM C VCOM driving voltage


Note: I: Input, O: Output, P: Power, D: Dummy, S: Shorted line, M: Mark, PI: Power input, PO: Power output, I/O: Input / Output, PS: Power Setting, C: Capacitor pin.

Products specifications
Brand Winstar
Size 2.9"
Resolution 296x128
Active Area (mm) 29.05x66.89
Dot Size 0.22x0.22
Color Black on White
Display Interface SPI
Display IC SSD1680
O. Temperature (°C) 0~50
Display Connection FPC for ZIF Connector
Pin Nr. 24
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 2.9"
Resolution 296x128
Active Area (mm) 29.05x66.89
Dot Size 0.22x0.22
Color Black on White
Display Interface SPI
Display IC SSD1680
O. Temperature (°C) 0~50
Display Connection FPC for ZIF Connector
Pin Nr. 24
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
