WF0340-800800AM#0P0-FC
WF0340-800800AM#0P0-FC
TFT 3.4" 800x800, Round LCD Panel, Interface MIPI IC ILI9881C, Wide View Angle (IPS), 300 cd/m2, Standard Temp., No touch
DESCRIPTION

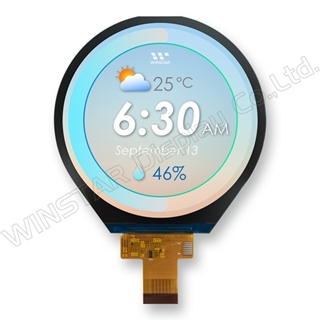

WF0340-800800AM#0P0-FC is a 3.4-inch Circular Screen IPS TFT Display with a resolution of 800x800 dots. It uses IPS (In-plane Switching) technology to achieve fast and stable response time, higher frequency transmittance, and better color performance. The most significant advantage of IPS is the wider viewing angles of up: 85/ down: 85/ left: 85/ right: 85 degrees. This circular TFT display has the module dimensions of 94.9 x 96.95 mm and the active area of 87.6 x 87.6 mm. It boasts a built-in ILI9881C driver IC, supporting 4-wire MIPI interfaces. The contrast ratio of the module is 1200:1, the brightness is 300cd/m2 (typical value), the analog circuit voltage is 3.3V (typical value), and the logic circuit voltage is 1.8V.
The operating temperature range of this 3.4" LCD is from -20℃ to +70℃, and the storage temperature range covers from -30℃ to +80℃. The circular TFT LCD display is suitable for home appliances, electronic alarm clocks, cocktail machines, and other products requiring circular display screens.

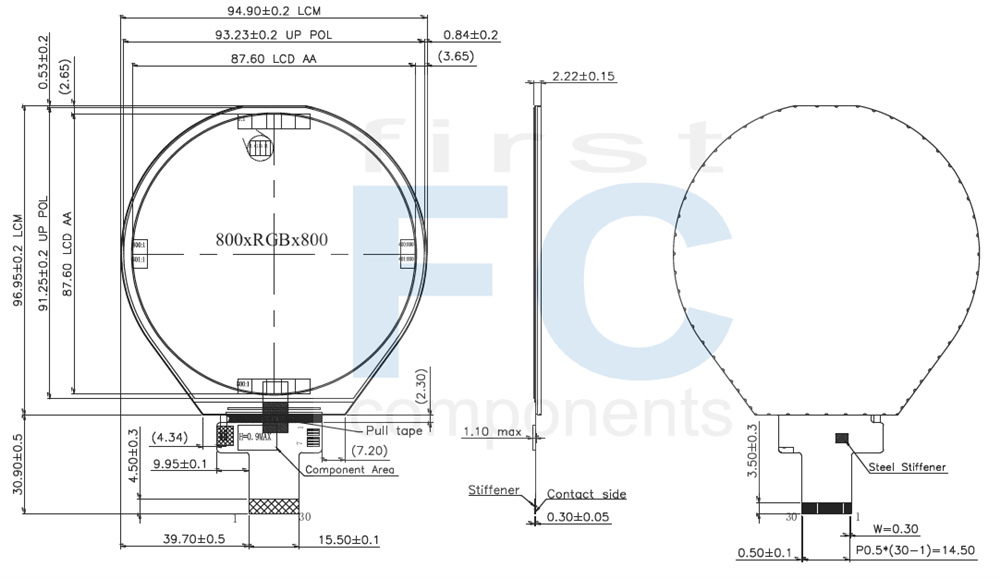

DRAWING
SPECIFICATIONS
Interface
LCM PIN Definition
Pin
Symbol
Function
1
VLED+
VLED backlight anode.
2
VLED-
VLED backlight cathode.
3
VLED-
VLED backlight cathode.
4
VCI
Power supply for the analog power
5
IOVCC
Power supply for the logic power and I/O circuit
(IOVCC = VDDI)
6
RESET
Reset signal(low active) (RESET=RESX)
7
TE
Tearing effect output
8
NC
No connection
9
GND
Power ground
10
D0P
MIPI-DSI data lane 0 positive input pin.
11
D0N
MIPI-DSI data lane 0 negative input pin
12
GND
Power ground
13
D1P
MIPI-DSI data lane 1 positive input pin.
14
D1N
MIPI-DSI data lane 1 negative input pin.
15
GND
Power ground
16
CLKP
MIPI-DSI data lane positive input pin.
17
CLKN
MIPI-DSI data lane negative input pin.
18
GND
Power ground
19
D2P
MIPI-DSI data lane 2 positive input pin.
20
D2N
MIPI-DSI data lane 2 negative input pin
21
GND
Power ground
22
D3P
MIPI-DSI data lane 3 positive input pin.
23
D3N
MIPI-DSI data lane 3 negative input pin
24
GND
Power ground
25-30
NC
No connection
General Specifications
Item
Dimension
Unit
Size
3.4
inch
Pixel Number
800 × RGB × 800 (TFT)
dots
Module dimension
94.9 (W) x 96.95 (H) x 2.22 (D)
mm
Active Area
87.6 x 87.6
mm
Pixel Pitch
0.1095 x 0.1095
mm
LCD type
TFT, Normally black, Transmissive
Viewing Angle
85/85/85/85
Driver IC
ILI9881C
TFT Interface
4-Lanes MIPI
Backlight Type
LED, Normally White
Touch Panel
Without Touch Panel
Surface
Anti-Glare
Absolute Maximum Ratings
Item
Symbol
Min
Typ
Max
Unit
Operating Temperature
TOP
-20
-
+70
℃
Storage Temperature
TST
-30
-
+80
℃
Power Supply voltage 1
VCI~GND
>-0.3
-
+3.6
V
Power Supply voltage 2
IOVCC~GND
-0.3
-
+3.3
V
Logic Input Voltage Range
VIN
-0.3
-
IOVCC+0.3
V
Logic Output Voltage Range
VO
-0.3
-
IOVCC+0.3
V
Electrical Characteristics
Item
Symbol
Min
Typ
Max
Unit
Supply voltage for analog circuit
VCI
2.5
3.3
3.6
V
Supply voltage for logic circuit
IOVCC
1.65
1.8
3.3
V
Current for VCI
I-vci
-
20
30
mA
Current for IOVCC
I-iovcc
-
20
30
mA
Input voltage “H” level
VIH
0.7*IOVCC
-
IOVCC
V
Input voltage “L” level
VIL
GND
-
0.3*IOVCC
V
Output voltage “H” level
VOH
0.8*IOVCCI
-
IOVCC
V
Output voltage “L” level
VOL
GND
-
0.2*IOVCC
V
SKU:
WF0340-800800AM#0P0-FC
Brand:
Winstar
Available:
Yes
Be the first to review this product
Price Breaks
Quantity
1+
5+
Price
€54.50
€45.40
For quantities above
25
pcs pls send your enquiry to
[email protected]
or call +39 0332 1888005
€54.50 excl tax
