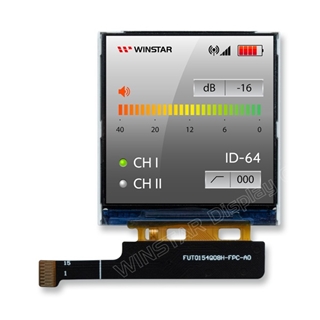

WF0154-240240AS#0P0-FC

TFT 1.54" 240x240, Full Color, Interface MCU (SPI) IC ST7789T3-G4-1, 380 cd/m2, Wide View Angle (IPS), No touch

DESCRIPTION

WF0154-240240AS#0P0-FC is a TFT-LCD with a 1.54-inch diagonal square screen and a resolution of 240x240 pixels. This square LCD screen adopts an IPS panel, which has the advantages of higher contrast, a full black background when the display or pixel is off, and wider viewing angles of Left:80 / Right:80 / Up:80 / Down:80 degrees (typical), 900:1 contrast ratio (typical value), 380 nits brightness (typical value), and an anti-glare glass surface.

This module is built-in with ST7789T3-G4-1 driver IC that can communicate via SPI interfaces. The supply voltage of analog is from 2.4V to 3.3V, with a typical value of 2.8V. It can operate at the temperature range from -10℃ to +60℃, and its storage temperature range is from -20℃ to +70℃. This 1.54-inch display module is suited for wireless microphone system, coffee scale, personal, and pulse oximeters.

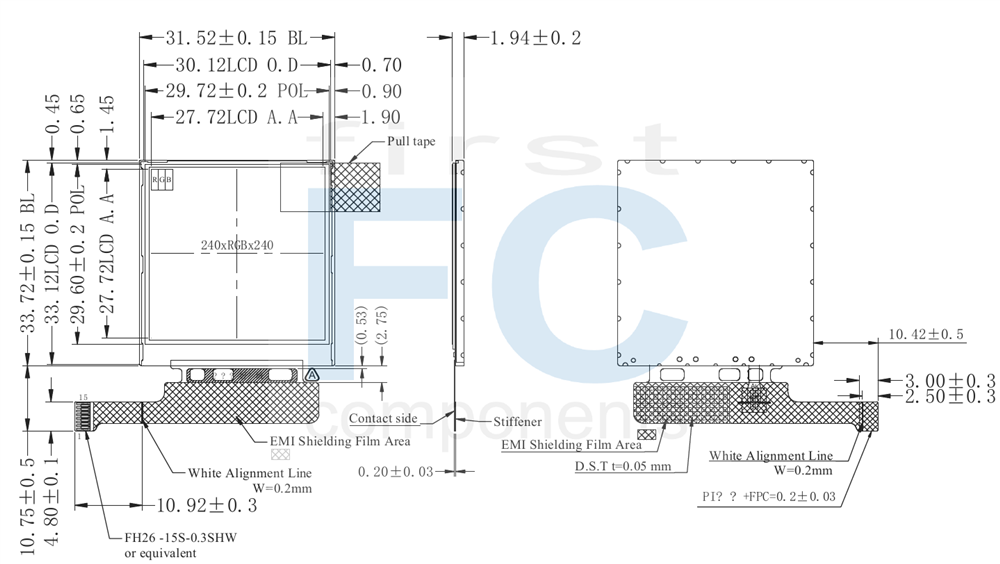

DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition

Pin No.SymbolFunction
1 GND Ground.
2 IOVCC Power Supply for I/O System
3 CS Chip selection pin
4 RESET This signal will reset the device
5 RS Display data/command selection pin in 4-line serial interface
6 GND Ground.
7 SCL This pin is used to be serial interface clock
8 SDA SPI interface input/output pin
9 GND Ground.
10 VDD Power Supply for Analog
11 FMARK Tearing effect signal is used to synchronize MCU to frame
memory writing.
12 VLED- Power Supply For LED Backlight Cathode Input
13 VLED- Power Supply For LED Backlight Cathode Input.
14 VLED+ Power Supply For LED Backlight Anode Input.
15 VLED+ Power Supply For LED Backlight Anode Input.



General Specifications

ItemDimensionUnit
Size 1.54 inch
Dot Matrix 240 × RGB × 240 dots
Module dimension 31.52 × 33.72 × 1.94 mm
Active area 27.72 × 27.72 mm
Pixel pitch 0.1155 × 0.1155 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 80/80/80/80
Backlight Type LED, Normally White
Drive IC ST7789T3-G4-1 or Equivalent
TFT Interface SPI
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -10 +60
Storage Temperature TST -20 +70



Electrical Characteristics

ParameterSymbolValueUnit
Min.Typ.Max.
Analog Supply Voltage VDD 2.4 2.8 3.3 V
Power Supply for I/O System IOVCC 1.65 1.8 3.3 V
Input High Voltage VIH 0.7 IOVCC - IOVCC V
Input Low Voltage VIL GND - 0.3 IOVCC mA
Output High Voltage VoH 0.8 IOVCC - IOVCC mA
Output Low Voltage VoL GND - 0.2 IOVCC W
(Panel+LSI) Power Consumption Black Mode - 6.0 - mA
Sleeping Mode - 0.015 - mA
SKU: WF0154-240240AS#0P0-FC
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
25+
Price
€7.80
€7.20
€6.10
€5.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€7.80 excl tax

DESCRIPTION

WF0154-240240AS#0P0-FC is a TFT-LCD with a 1.54-inch diagonal square screen and a resolution of 240x240 pixels. This square LCD screen adopts an IPS panel, which has the advantages of higher contrast, a full black background when the display or pixel is off, and wider viewing angles of Left:80 / Right:80 / Up:80 / Down:80 degrees (typical), 900:1 contrast ratio (typical value), 380 nits brightness (typical value), and an anti-glare glass surface.

This module is built-in with ST7789T3-G4-1 driver IC that can communicate via SPI interfaces. The supply voltage of analog is from 2.4V to 3.3V, with a typical value of 2.8V. It can operate at the temperature range from -10℃ to +60℃, and its storage temperature range is from -20℃ to +70℃. This 1.54-inch display module is suited for wireless microphone system, coffee scale, personal, and pulse oximeters.



DRAWING



SPECIFICATIONS

Interface

LCM PIN Definition

Pin No.SymbolFunction
1 GND Ground.
2 IOVCC Power Supply for I/O System
3 CS Chip selection pin
4 RESET This signal will reset the device
5 RS Display data/command selection pin in 4-line serial interface
6 GND Ground.
7 SCL This pin is used to be serial interface clock
8 SDA SPI interface input/output pin
9 GND Ground.
10 VDD Power Supply for Analog
11 FMARK Tearing effect signal is used to synchronize MCU to frame
memory writing.
12 VLED- Power Supply For LED Backlight Cathode Input
13 VLED- Power Supply For LED Backlight Cathode Input.
14 VLED+ Power Supply For LED Backlight Anode Input.
15 VLED+ Power Supply For LED Backlight Anode Input.



General Specifications

ItemDimensionUnit
Size 1.54 inch
Dot Matrix 240 × RGB × 240 dots
Module dimension 31.52 × 33.72 × 1.94 mm
Active area 27.72 × 27.72 mm
Pixel pitch 0.1155 × 0.1155 mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 80/80/80/80
Backlight Type LED, Normally White
Drive IC ST7789T3-G4-1 or Equivalent
TFT Interface SPI
Touch Panel Without Touch Panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -10 +60
Storage Temperature TST -20 +70



Electrical Characteristics

ParameterSymbolValueUnit
Min.Typ.Max.
Analog Supply Voltage VDD 2.4 2.8 3.3 V
Power Supply for I/O System IOVCC 1.65 1.8 3.3 V
Input High Voltage VIH 0.7 IOVCC - IOVCC V
Input Low Voltage VIL GND - 0.3 IOVCC mA
Output High Voltage VoH 0.8 IOVCC - IOVCC mA
Output Low Voltage VoL GND - 0.2 IOVCC W
(Panel+LSI) Power Consumption Black Mode - 6.0 - mA
Sleeping Mode - 0.015 - mA
Products specifications
Brand Winstar
Size 1.54"
Resolution 240x240
Active Area (mm) 27.72x27.72
Color Full Color
Display Interface MCU (SPI)
Display IC ST7789T3-G4-1
View Angle IPS
Frame No
Touch Panel No touch
O. Temperature (°C) -10~60
Display Connection FPC for ZIF Connector
Pin Nr. 15
Pin Pitch 0.3mm
Preferred - Not Preferred Preferred
