WAA0290BA8#A2N2AA-FC

E-Paper 2.9" 296x128, Color Black on White, Interface SPI, Capacitive Touch Panel I2C interface (IC FT6336U)

DESCRIPTION

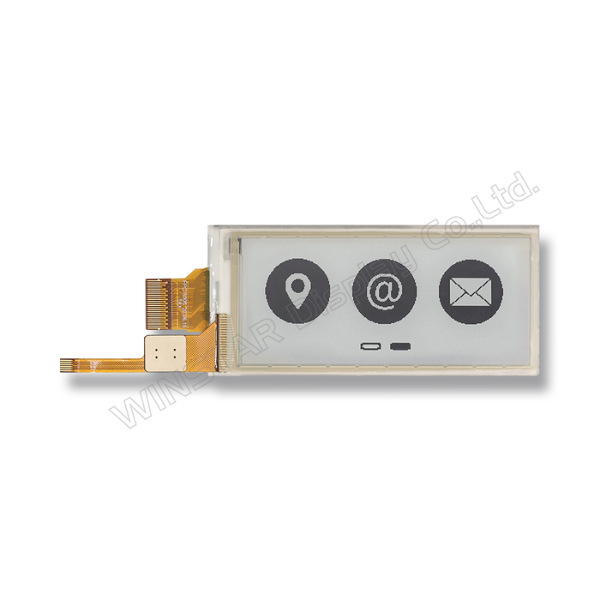

WAA0290BA8#A2N2AA-FC is a 2.9" Electronic Paper Display (EPD) with capacitive touch panel. The display is capable of showing black-and-white images with full 1-bit display capability. The 2.9-inch active area contains 296x128 pixels. The module uses a TFT array to drive the electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC converter, SRAM, LUT, and VCOM control. The module can be used in portable electronic devices, such as in Electronic Shelf Label (ESL) systems.

Features:

  • 296x128 pixels display
  • High contrast
  • High reflectance
  • Ultra-wide viewing angle
  • Ultra-low power consumption
  • Pure reflective mode
  • Bi-stable display
  • Commercial temperature range
  • Supports landscape and portrait modes
  • Hard-coat antiglare display surface
  • Ultra-low current deep sleep mode
  • On-chip display RAM
  • The waveform can be stored in on-chip OTP or written by the MCU.
  • Serial peripheral interface available
  • On-chip oscillator
  • On-chip booster and regulator control for generating VCOM, Gate, and Source driving voltage
  • I2C signal master interface to read external temperature sensor
  • Built-in temperature sensor
  • Includes capacitive touch panel FT6336U, with an operating voltage of 3.3V.

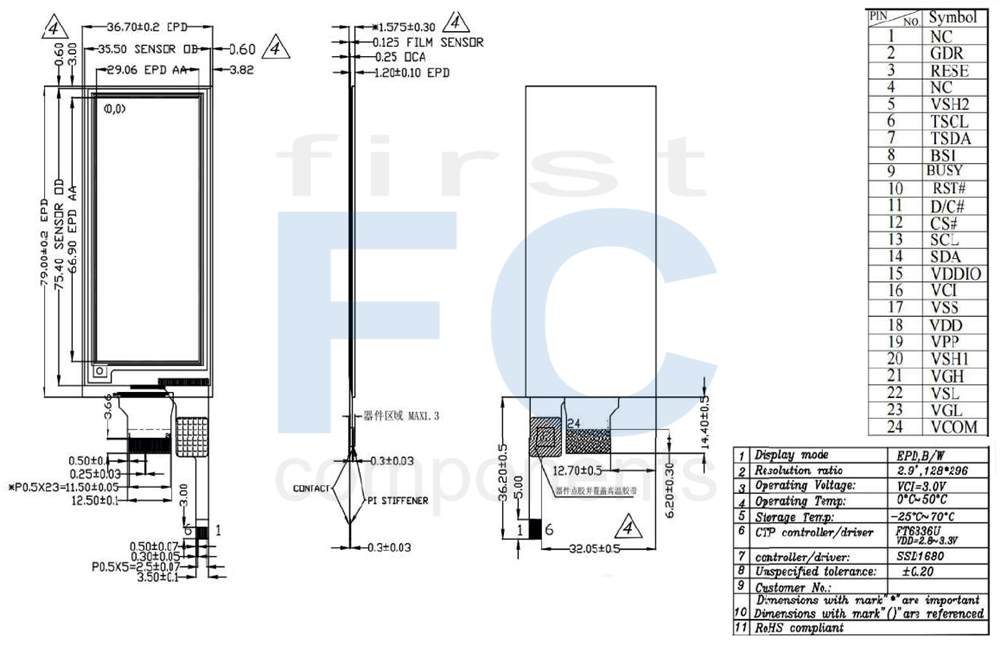

DRAWING

SPECIFICATIONS

General Specifications

ParameterSpecificationsUnit
Screen Size 2.9 Inch
Display Resolution 296(H)×128(V) Pixel
Active Area 29.056×66.896 mm
Pixel Pitch 0.227×0.226 mm
Pixel Configuration Rectangle
Outline Dimension 36.7(H) × 79.0 (V) × 1.575(D) mm
Module Weight 8.31±0.5 g



Electrical Characteristics

Absolute Maximum Ratings

ParameterSymbolRatingUnit
Logic supply voltage VCI -0.5 to +4.0 V
Logic Input voltage VIN -0.5 to VCI +0.5 V
Logic Output voltage VOUT -0.5 to VCI +0.5 V
Operating Temp range TOPR 0 to +50 ºC
Storage Temp range TSTG -25 to+70 ºC
Optimal Storage Temp TSTGo 23±2 ºC
Optimal Storage Humidity HSTGo 55±10 %RH



Input /Output Pin Assignment

No.NameI/ODescription
1 NC   Do not connect with other NC pins
2 GDR O N-Channel MOSFET Gate Drive Control
3 RESE P Current sense input for control loop.
4 NC NC Do not connect with other NC pins
5 VSH2 C Positive source driving voltage (Red)
6 TSCL O I2C interface to digital temperature sensor Clock pin
7 TSDA I/O I2C interface to digital temperature sensor Data pin
8 BS1 I Bus Inteface selection pin
9 BUSY O Busy state output pin
10 RES# I Reset signal input. Active Low
11 D/C# I Data / Command control pin
12 CS# I Chip select input pin
13 SCL I Serial Clock pin (SPI)
14 SDA I/O Serial Data pin (SPI)
15 VDDIO P Power Suupply for interface logic pins. It should be connected with VCI
16 VCI P Power Supply for the chip
17 VSS P Ground
18 VDD C Core logic power pin VDD can be regulated internally from VCI. A capacitor should be connected between VDD and VSS
19 VPP P FOR TEST
20 VSH1 C Positive Source driving voltage
21 VGH P Power Supply pin for Positive Gate driving voltage and VSH1
22 VSL P Negative Source driving voltage
23 VGL P Power Supply pin for Negative Gate driving voltage VCOM and VSL
24 VCOM O VCOM driving voltage


Note: I: Input, O: Output, P: Power, D: Dummy, S: Shorted line, M: Mark, PI: Power input, PO: Power output, I/O: Input / Output, PS: Power Setting, C: Capacitor pin.

SKU: WAA0290BA8#A2N2AA-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
Price
€25.80
€20.70

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€25.80 excl tax

DESCRIPTION

WAA0290BA8#A2N2AA-FC is a 2.9" Electronic Paper Display (EPD) with capacitive touch panel. The display is capable of showing black-and-white images with full 1-bit display capability. The 2.9-inch active area contains 296x128 pixels. The module uses a TFT array to drive the electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC converter, SRAM, LUT, and VCOM control. The module can be used in portable electronic devices, such as in Electronic Shelf Label (ESL) systems.

Features:

  • 296x128 pixels display
  • High contrast
  • High reflectance
  • Ultra-wide viewing angle
  • Ultra-low power consumption
  • Pure reflective mode
  • Bi-stable display
  • Commercial temperature range
  • Supports landscape and portrait modes
  • Hard-coat antiglare display surface
  • Ultra-low current deep sleep mode
  • On-chip display RAM
  • The waveform can be stored in on-chip OTP or written by the MCU.
  • Serial peripheral interface available
  • On-chip oscillator
  • On-chip booster and regulator control for generating VCOM, Gate, and Source driving voltage
  • I2C signal master interface to read external temperature sensor
  • Built-in temperature sensor
  • Includes capacitive touch panel FT6336U, with an operating voltage of 3.3V.



DRAWING

SPECIFICATIONS

General Specifications

ParameterSpecificationsUnit
Screen Size 2.9 Inch
Display Resolution 296(H)×128(V) Pixel
Active Area 29.056×66.896 mm
Pixel Pitch 0.227×0.226 mm
Pixel Configuration Rectangle
Outline Dimension 36.7(H) × 79.0 (V) × 1.575(D) mm
Module Weight 8.31±0.5 g



Electrical Characteristics

Absolute Maximum Ratings

ParameterSymbolRatingUnit
Logic supply voltage VCI -0.5 to +4.0 V
Logic Input voltage VIN -0.5 to VCI +0.5 V
Logic Output voltage VOUT -0.5 to VCI +0.5 V
Operating Temp range TOPR 0 to +50 ºC
Storage Temp range TSTG -25 to+70 ºC
Optimal Storage Temp TSTGo 23±2 ºC
Optimal Storage Humidity HSTGo 55±10 %RH



Input /Output Pin Assignment

No.NameI/ODescription
1 NC   Do not connect with other NC pins
2 GDR O N-Channel MOSFET Gate Drive Control
3 RESE P Current sense input for control loop.
4 NC NC Do not connect with other NC pins
5 VSH2 C Positive source driving voltage (Red)
6 TSCL O I2C interface to digital temperature sensor Clock pin
7 TSDA I/O I2C interface to digital temperature sensor Data pin
8 BS1 I Bus Inteface selection pin
9 BUSY O Busy state output pin
10 RES# I Reset signal input. Active Low
11 D/C# I Data / Command control pin
12 CS# I Chip select input pin
13 SCL I Serial Clock pin (SPI)
14 SDA I/O Serial Data pin (SPI)
15 VDDIO P Power Suupply for interface logic pins. It should be connected with VCI
16 VCI P Power Supply for the chip
17 VSS P Ground
18 VDD C Core logic power pin VDD can be regulated internally from VCI. A capacitor should be connected between VDD and VSS
19 VPP P FOR TEST
20 VSH1 C Positive Source driving voltage
21 VGH P Power Supply pin for Positive Gate driving voltage and VSH1
22 VSL P Negative Source driving voltage
23 VGL P Power Supply pin for Negative Gate driving voltage VCOM and VSL
24 VCOM O VCOM driving voltage


Note: I: Input, O: Output, P: Power, D: Dummy, S: Shorted line, M: Mark, PI: Power input, PO: Power output, I/O: Input / Output, PS: Power Setting, C: Capacitor pin.

Products specifications
Brand Winstar
Size 2.9"
Resolution 296x128
Active Area (mm) 29.05x66.89
Dot Size 0.22x0.22
Color Black on White
Display Interface SPI
Display IC SSD1680
O. Temperature (°C) 0~50
Display Connection FPC for ZIF Connector
Pin Nr. 24
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
