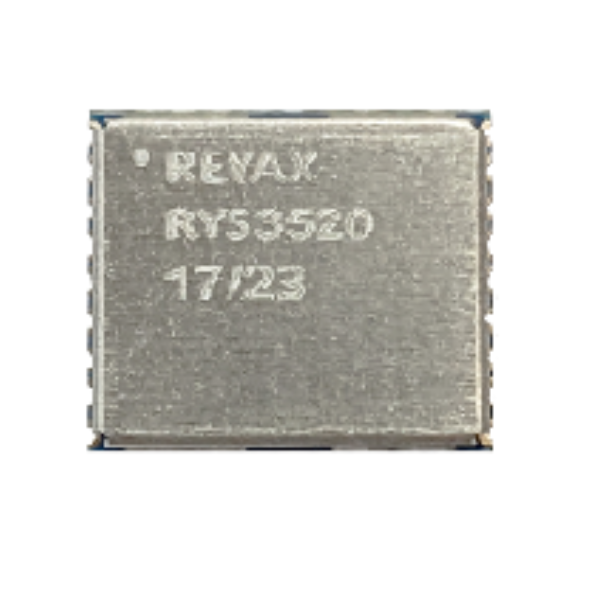

RYS3520

Multi-GNSS module, 3.3 V UART interface

DESCRIPTION

The RYS3520 +3.3V GNSS module is a multi-GNSS module with high sensitivity and performance, It supports GPS, GLONASS, Galileo, BeiDou, and QZSS systems. It also supports SBAS, WAAS, EGNOS, MSAS, GAGAN, and AGNSS functions.



SPECIFICATION

Item Min. Typical Max. Unit Condition
Power Supply Voltage 2.5 3.3 3.63 V VCC
Backup Supply Voltage 1.65 3.3 3.63 V V_BCKP
Satellite acquisition Current   33   mA passive antenna
Satellite tracking Current   33   mA passive antenna
RTC backup Current   12   uA
Default Baud Rate   115200   bps 8,N,1
Digital input level high 2   VCC+0.3 V VIH
Digital input level low -0.3   0.8 V VIL
Digital output level high 2.4   VCC V VOH
Digital output level low     0.4 V VOL
GNSS Center Frequency

1561.098

1575.42

1602.5625

  MHz

BeiDou

GPS、 Galileo

Glonass

Accuracy of 1PPS Signal   100   ns
Navigation update rate   1 10 Hz
Accuracy   1.5   M

CEP 50%, 24 hours static, more

than 6 satellites, Signal strength

is -130dBm

Cold starts without AGNSS   26   Sec. Signal strength is -130dBm
Warm starts without AGNSS   20   Sec Signal strength is -130dBm
Hot starts with EASY®   1   Sec Signal strength is -130dBm
Cold starts with Flash EPO®   5   Sec Signal strength is -130dBm
Tracking Sensitivity   -167   dBm
Hot starts Sensitivity   -160   dBm
Cold starts Sensitivity   -148   dBm
Velocity   0.2   m/s
Altitude   10000 80000[1] M [1]Balloon mode
Acceleration   4   G
Operating Temperature -40 25 85 ˚C
Dimensions         10.1mm*9.7mm*2.3mm
Weight   0.5   gram
SKU: RYS3520
Brand: Reyax
Available: Yes
Price Breaks
Quantity
1+
5+
Price
€8.80
€8.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€8.80 excl tax

DESCRIPTION

The RYS3520 +3.3V GNSS module is a multi-GNSS module with high sensitivity and performance, It supports GPS, GLONASS, Galileo, BeiDou, and QZSS systems. It also supports SBAS, WAAS, EGNOS, MSAS, GAGAN, and AGNSS functions.



SPECIFICATION

Item Min. Typical Max. Unit Condition
Power Supply Voltage 2.5 3.3 3.63 V VCC
Backup Supply Voltage 1.65 3.3 3.63 V V_BCKP
Satellite acquisition Current   33   mA passive antenna
Satellite tracking Current   33   mA passive antenna
RTC backup Current   12   uA
Default Baud Rate   115200   bps 8,N,1
Digital input level high 2   VCC+0.3 V VIH
Digital input level low -0.3   0.8 V VIL
Digital output level high 2.4   VCC V VOH
Digital output level low     0.4 V VOL
GNSS Center Frequency

1561.098

1575.42

1602.5625

  MHz

BeiDou

GPS、 Galileo

Glonass

Accuracy of 1PPS Signal   100   ns
Navigation update rate   1 10 Hz
Accuracy   1.5   M

CEP 50%, 24 hours static, more

than 6 satellites, Signal strength

is -130dBm

Cold starts without AGNSS   26   Sec. Signal strength is -130dBm
Warm starts without AGNSS   20   Sec Signal strength is -130dBm
Hot starts with EASY®   1   Sec Signal strength is -130dBm
Cold starts with Flash EPO®   5   Sec Signal strength is -130dBm
Tracking Sensitivity   -167   dBm
Hot starts Sensitivity   -160   dBm
Cold starts Sensitivity   -148   dBm
Velocity   0.2   m/s
Altitude   10000 80000[1] M [1]Balloon mode
Acceleration   4   G
Operating Temperature -40 25 85 ˚C
Dimensions         10.1mm*9.7mm*2.3mm
Weight   0.5   gram
