WFN0200DA2#000-FC

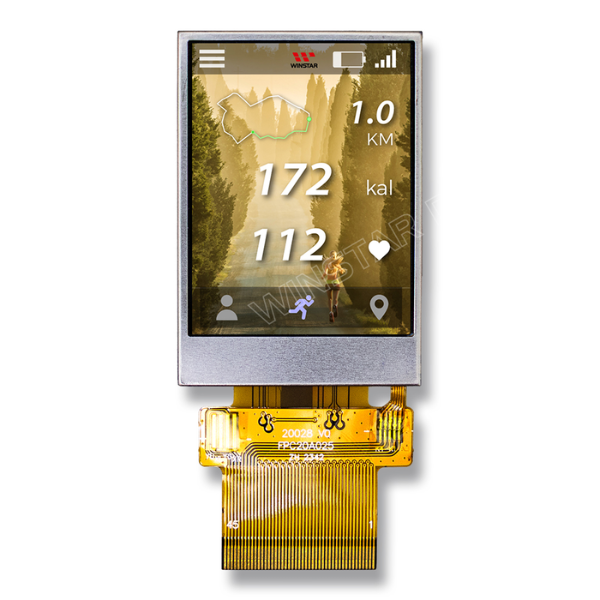

Picture of WFN0200DA2#000-FC Picture of WFN0200DA2#000-FC
TFT 2" 240x320 Portrait LCD Panel, Transflective, Interface MCU (RGB/SPI) IC ST7789, 260cd/m², Wide View Angle (VA), No touch

DESCRIPTION

The WFN0200DA2#000-FC adopts an advanced transflective screen technology that combines both transmissive and reflective display modes, significantly enhancing visibility under varying lighting conditions. With a 2-inch portrait layout and VA wide viewing angle, this module is ideal for outdoor and portable device applications.

Key Technical Features

  • Dual Display Technology
    This module utilizes a transflective screen, merging transmissive and reflective display modes to ensure excellent visibility in both indoor and outdoor environments. The VA mode offers a wide 80/80/80/80° viewing angle, while the reflective mode remains readable under direct sunlight 45/45/45/45°. This design significantly improves display performance and adaptability, making it suitable for outdoor displays and in-vehicle instrumentation.
  • Versatile Interfaces
    Supports 3/4-wire serial, 8/9/16/18-bit MCU, and SPI + RGB hybrid interfaces for seamless integration with various control platforms.
  • Driver IC
    Equipped with the reliable and widely adopted ST7789 driver IC, simplifying the development process.
  • Brightness & Contrast
    260 cd/m² brightness with a 250:1 contrast ratio, suitable for general indoor/outdoor viewing needs. The reflective design further optimizes outdoor readability.
  • Wide Temperature Support
    Operating temperature range of -20~70°C, ideal for industrial and portable use cases.
  • Power & Lifetime
    Digital supply voltage range: 2.5~3.6V; interface voltage: 1.65~3.3V. LED lifetime up to 50,000 hours ensures long-term stability and reliability.


Recommended Applications

  • Outdoor information displays and industrial control panels
  • Wearable devices and handheld GPS units
  • Portable medical and measuring instruments requiring small-sized displays

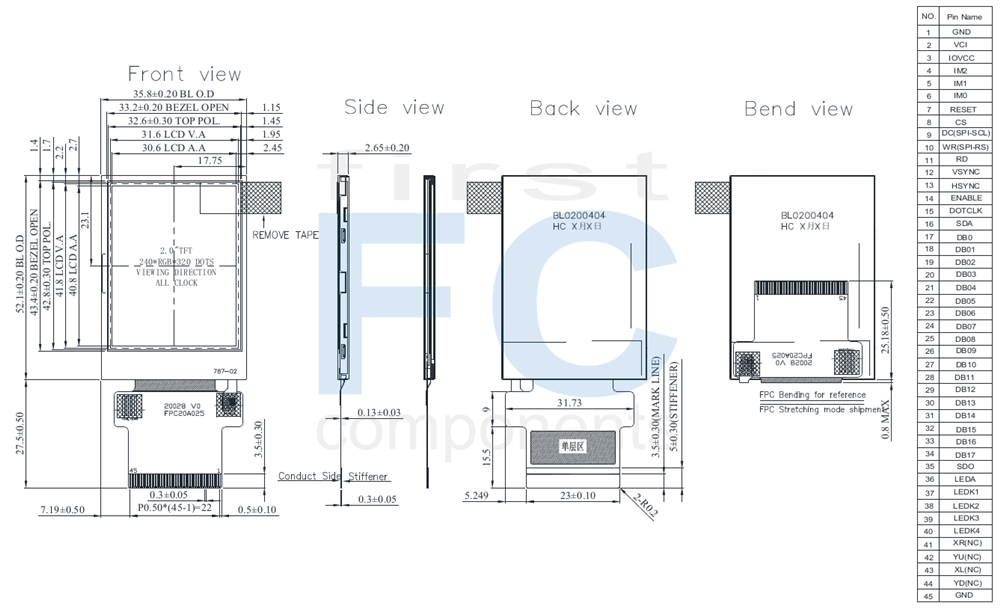

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 2 inch
Dot Matrix 240 × RGB × 320(TFT) dots
Module dimension 35.8 × 52.1 × 2.65 mm
Active area 30.60 × 40.80 mm
Pixel Pitch 0.1275 × 0.1275 mm
LCD type TFT, Normally Black, Transflective
Viewing angle 80/80/80/80
TFT Interface 3/4serial 8/9/16/18bit MCU
3/4SPI+16/18BIT RGB
Backlight Type LED, Normally White
TFT Driver IC ST7789 or Equivalent
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

CharacteristicsSymbolMin.Typ.Max.Unit
Digital Supply Voltage VCI 2.5 3.3 3.6 V
Digital interface supple Voltage IOVCC 1.65 1.8 3.3 V
Normal mode Current consumption IDD -- 6 12 mA
Level input voltage VIH 0.7IOVCC   IOVCC V
VIL GND   0.3IOVCC V
Level output voltage VOH 0.8IOVCC   IOVCC V
VOL GND   0.2IOVCC V


LED driving conditions

ItemSymbolMin.Typ.Max.Unit
LED current - 60 80 - mA
LED voltage VLED+ 2.8 3.2 3.3 V
LED Life Time - 50,000 - - Hr



Interface Pin Function

LCM PIN Definition

Pin NoSymbolDescriptionI/O
1 GND Ground. P
2 VCI Supply voltage (3.3V). P
3 IOVCC Supply voltage (1.65-3.3V). P
4 IM2 MPU Parallel interface bus and serial interface select If use RGB Interface must select serial interface.
Fix this pin at IOVCC and GND.		   I
5 IM1
6 IM0
7 RESET This signal will reset the device and must be applied to properly
initialize the chip.		 I
8 CS Chip select input pin (“Low” enable).
fix this pin at GND when not in use.		 I
9 DC(SPI-SCL) -Display data/command selection pin in parallel interface.
-This pin is used to be serial interface clock. DC=’1’: display data or parameter.
DC=’0’: command data.
-If not used, please fix this pin at GND.		 I
10 WR(SPI-RS) -Write enable in MCU parallel interface.
Display data/command selection pin in 4-line serial interface.
Second Data lane in 2 data lane serial interface.
-If not used, please fix this pin at GND.		 I
11 RD Serves as a read signal and MCU read data at the rising edge.
fix this pin at IOVCC or GND when not in use.		 I
12 VSYNC Frame synchronizing signal for RGB interface operation.
fix this pin at    GND when not in use.		 I
13 HSYNC Line synchronizing signal for RGB interface operation.
fix this pin at GND when not in use.		 I
14 ENABLE Data enable signal for RGB interface operation.
fix this pin at GND when not in use.		 I
15 DOTCLK Dot clock signal for RGB interface operation.
Fix this pin at GND when not in use.		 I
16 SDA Serial input signal.
The data is latched on the rising edge of the SCL signal. fix this pin at GND when not in use.		 I
17-34 DB0-DB17 18-bit parallel bi-directional data bus for MCU system and RGB
interface mode .
Fix to GND level when not in use		 I/0
35 SDO SPI interface output pin.
-The data is output on the falling edge of the SCL signal.
-If not used, let this pin open.		 O
36 LEDA Anode pin of backlight P
37 LEDK1 Cathode pin OF backlight P
38 LEDK2 Cathode pin OF backlight P
39 LEDK3 Cathode pin OF backlight P
40 LEDK4 Cathode pin OF backlight P
41 XR(NC) Touch panel Right Glass Terminal A/D
42 YU(NC) Touch panel Top Film Terminal A/D
43 XL(NC) Touch panel LEFT Glass Terminal A/D
44 YD(NC) Touch panel Bottom Film Terminal A/D
45 GND Ground.

SKU: WFN0200DA2#000-FC
Brand: Winstar
Available: No
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
Price
€20.80
€16.70
€12.70

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€20.80 excl tax

DESCRIPTION

The WFN0200DA2#000-FC adopts an advanced transflective screen technology that combines both transmissive and reflective display modes, significantly enhancing visibility under varying lighting conditions. With a 2-inch portrait layout and VA wide viewing angle, this module is ideal for outdoor and portable device applications.

Key Technical Features

  • Dual Display Technology
    This module utilizes a transflective screen, merging transmissive and reflective display modes to ensure excellent visibility in both indoor and outdoor environments. The VA mode offers a wide 80/80/80/80° viewing angle, while the reflective mode remains readable under direct sunlight 45/45/45/45°. This design significantly improves display performance and adaptability, making it suitable for outdoor displays and in-vehicle instrumentation.
  • Versatile Interfaces
    Supports 3/4-wire serial, 8/9/16/18-bit MCU, and SPI + RGB hybrid interfaces for seamless integration with various control platforms.
  • Driver IC
    Equipped with the reliable and widely adopted ST7789 driver IC, simplifying the development process.
  • Brightness & Contrast
    260 cd/m² brightness with a 250:1 contrast ratio, suitable for general indoor/outdoor viewing needs. The reflective design further optimizes outdoor readability.
  • Wide Temperature Support
    Operating temperature range of -20~70°C, ideal for industrial and portable use cases.
  • Power & Lifetime
    Digital supply voltage range: 2.5~3.6V; interface voltage: 1.65~3.3V. LED lifetime up to 50,000 hours ensures long-term stability and reliability.


Recommended Applications

  • Outdoor information displays and industrial control panels
  • Wearable devices and handheld GPS units
  • Portable medical and measuring instruments requiring small-sized displays

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 2 inch
Dot Matrix 240 × RGB × 320(TFT) dots
Module dimension 35.8 × 52.1 × 2.65 mm
Active area 30.60 × 40.80 mm
Pixel Pitch 0.1275 × 0.1275 mm
LCD type TFT, Normally Black, Transflective
Viewing angle 80/80/80/80
TFT Interface 3/4serial 8/9/16/18bit MCU
3/4SPI+16/18BIT RGB
Backlight Type LED, Normally White
TFT Driver IC ST7789 or Equivalent
Touch Panel Without Touch Panel
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

Operating conditions

CharacteristicsSymbolMin.Typ.Max.Unit
Digital Supply Voltage VCI 2.5 3.3 3.6 V
Digital interface supple Voltage IOVCC 1.65 1.8 3.3 V
Normal mode Current consumption IDD -- 6 12 mA
Level input voltage VIH 0.7IOVCC   IOVCC V
VIL GND   0.3IOVCC V
Level output voltage VOH 0.8IOVCC   IOVCC V
VOL GND   0.2IOVCC V


LED driving conditions

ItemSymbolMin.Typ.Max.Unit
LED current - 60 80 - mA
LED voltage VLED+ 2.8 3.2 3.3 V
LED Life Time - 50,000 - - Hr



Interface Pin Function

LCM PIN Definition

Pin NoSymbolDescriptionI/O
1 GND Ground. P
2 VCI Supply voltage (3.3V). P
3 IOVCC Supply voltage (1.65-3.3V). P
4 IM2 MPU Parallel interface bus and serial interface select If use RGB Interface must select serial interface.
Fix this pin at IOVCC and GND.		   I
5 IM1
6 IM0
7 RESET This signal will reset the device and must be applied to properly
initialize the chip.		 I
8 CS Chip select input pin (“Low” enable).
fix this pin at GND when not in use.		 I
9 DC(SPI-SCL) -Display data/command selection pin in parallel interface.
-This pin is used to be serial interface clock. DC=’1’: display data or parameter.
DC=’0’: command data.
-If not used, please fix this pin at GND.		 I
10 WR(SPI-RS) -Write enable in MCU parallel interface.
Display data/command selection pin in 4-line serial interface.
Second Data lane in 2 data lane serial interface.
-If not used, please fix this pin at GND.		 I
11 RD Serves as a read signal and MCU read data at the rising edge.
fix this pin at IOVCC or GND when not in use.		 I
12 VSYNC Frame synchronizing signal for RGB interface operation.
fix this pin at    GND when not in use.		 I
13 HSYNC Line synchronizing signal for RGB interface operation.
fix this pin at GND when not in use.		 I
14 ENABLE Data enable signal for RGB interface operation.
fix this pin at GND when not in use.		 I
15 DOTCLK Dot clock signal for RGB interface operation.
Fix this pin at GND when not in use.		 I
16 SDA Serial input signal.
The data is latched on the rising edge of the SCL signal. fix this pin at GND when not in use.		 I
17-34 DB0-DB17 18-bit parallel bi-directional data bus for MCU system and RGB
interface mode .
Fix to GND level when not in use		 I/0
35 SDO SPI interface output pin.
-The data is output on the falling edge of the SCL signal.
-If not used, let this pin open.		 O
36 LEDA Anode pin of backlight P
37 LEDK1 Cathode pin OF backlight P
38 LEDK2 Cathode pin OF backlight P
39 LEDK3 Cathode pin OF backlight P
40 LEDK4 Cathode pin OF backlight P
41 XR(NC) Touch panel Right Glass Terminal A/D
42 YU(NC) Touch panel Top Film Terminal A/D
43 XL(NC) Touch panel LEFT Glass Terminal A/D
44 YD(NC) Touch panel Bottom Film Terminal A/D
45 GND Ground.

Products specifications
Brand Winstar
Size 2"
Resolution 240x320
Active Area (mm) 30.60x40.80
Color Full Color
Display Interface MCU (RGB/SPI)
Display IC ST7789
View Angle VA
Sunlight Readable Transflective
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 45
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2"
Resolution 240x320
Active Area (mm) 30.60x40.80
Color Full Color
Display Interface MCU (RGB/SPI)
Display IC ST7789
View Angle VA
Sunlight Readable Transflective
Frame No
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 45
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
