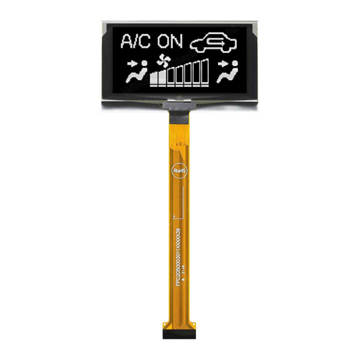

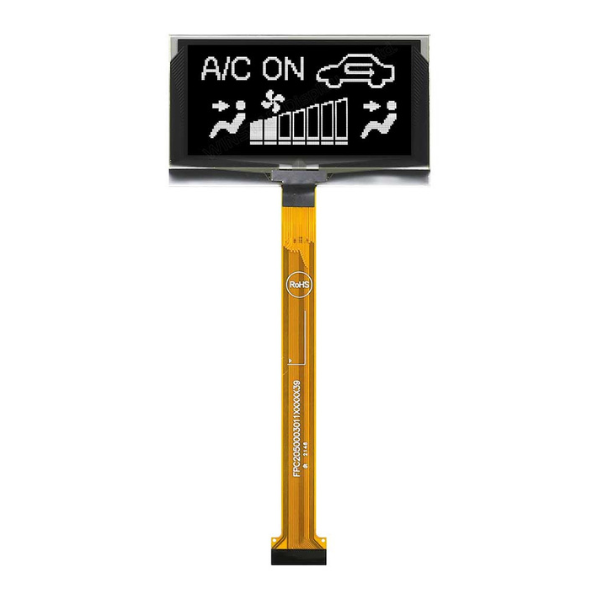

    WEO12864W#AMP3N00G00-FC

    PMOLED 2.7" Graphic 128x64, White color, COG, 3V, Interface 6800,8080,SPI,I2C, SH1106 IC, Glare (30pins)
    Manufacturer: Winstar
    SKU: WEO12864W#AMP3N00G00-FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €25.60
    €23.00
    €21.70

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: The product can not be added to the cart. Please check with FC for future availability
    €25.60 excl tax
    i h

    DESCRIPTION

    WEO12864x#AMxxxxxxxx-FC is a 2.7-inch COG 128x64 graphic OLED display. This module is built-in with SH1106 IC; it can be communicated via I2C, 4-wire SPI serial or 6800, 8080 parallel interface and, its 10,000:1 high contrast ratio makes the display image more clear. The supply voltage of logic is 1.65 V~ 3.3 V (typical value 3V), supply voltage for display is 6.4V~ 13.5V (typical value 13V), 1/64 driving duty.

    This module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.  2.7-inch OLED is very suitable for smart home applications, hi-tech equipment, meter equipment, industrial control systems, medical instruments, IoT systems...etc. WEO12864x#AMxxxxxxxx-FC series has different ZIF FPC; currently, we provide 22 pins, 24 pins, 30 pins, and 31 pins for options; if customs require custom FPC, welcome to contact us.

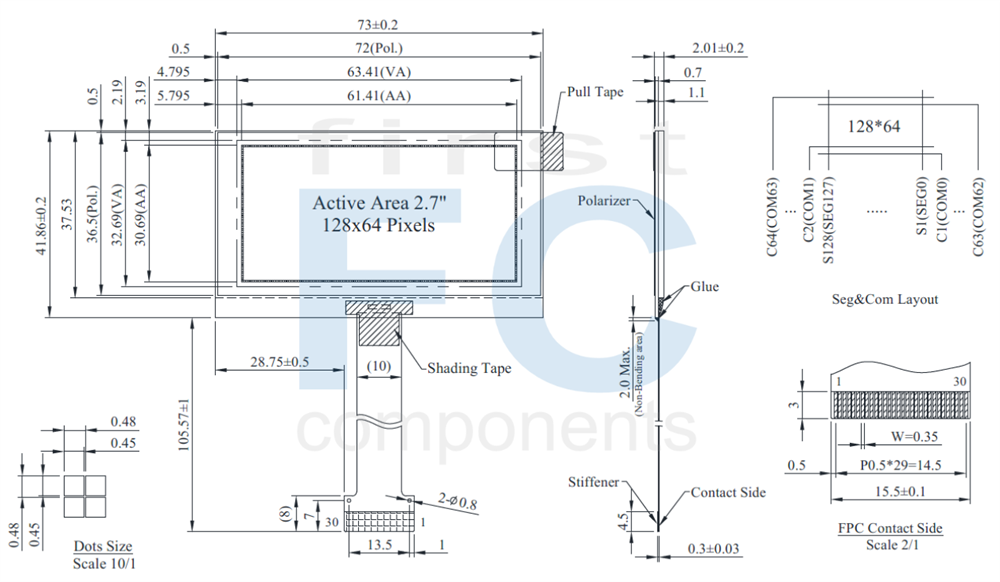

    DRAWING

    128x64 Graphic 2.7-inch COG OLED Display Module - WEO012864AM
    Products specifications
    Size 2.7"
    Resolution 128x64
    Active Area (mm) 61.41x30.69
    Dot Size 0.45x0.45
    Polarizer Glare
    Color White
    Power supply 3V
    Display Interface 6800/8080/SPI/I2C
    Display IC SH1106
    Constructive Structure COG
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -40~80
    Data Connection FPC for ZIF Connector
    Pin Nr. 30
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
