    WF39-480128BD#0SW0-FC

    TFT 3.9" 480x128, Bar Type, Interface RGB, High Brightness 1000cd/m², View direction 6H, Super extended Temperature, No touch
    Manufacturer: Winstar
    SKU: WF39-480128BD#0SW0-FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €40.20
    €36.20
    €34.00

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €40.20 excl tax
    i h

    DESCRIPTION

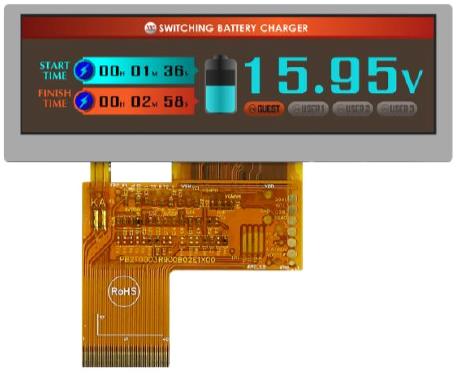

    3.9 inch Bar Type TFT LCD with 480x128 pixels, featured with high brightness and wider operation temperature.

    This module has high brightness 900 ~ 1000 cd/m2. Operating temperature from -30℃ to +80℃; its storage temperature from -40℃ to +90℃. This TFT module is built in with Driver IC HX8278; it supports RGB interface; 3.3V (typical) power supply; supports Sync mode and DE modem, default Sync mode.

    This Bar TFT is very suitable for server system, audio system and advertising display, automotive, aviation, marine systems, security equipment, Industrial equipment, outdoor intercom systems and control panels, medical equipment, drone controls.

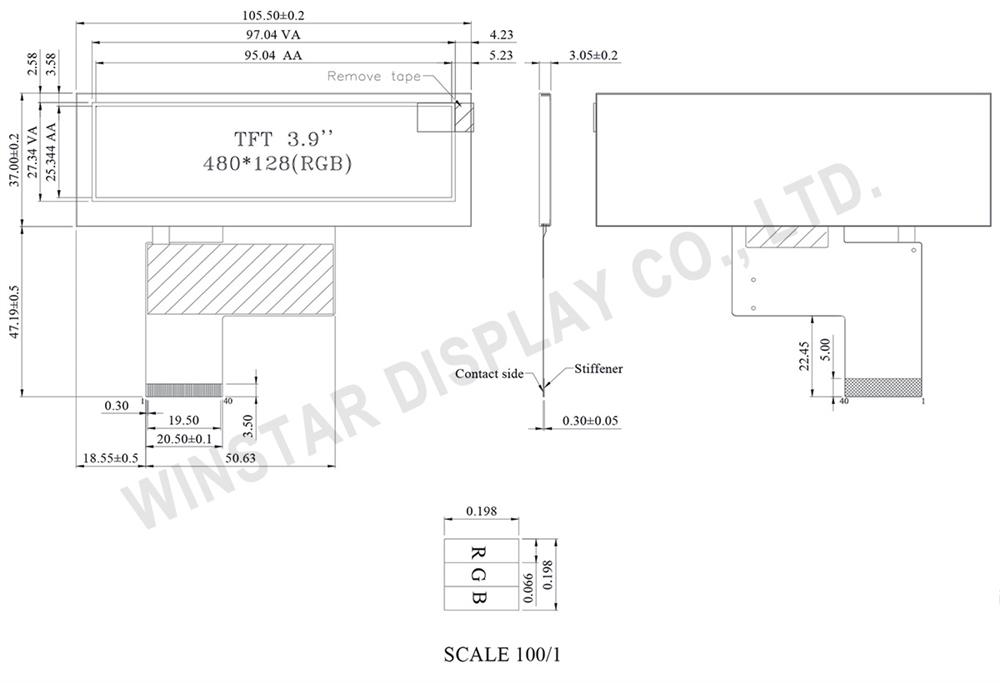

    DRAWING







    SPECIFICATIONS



    Interface

    LCM PIN Definition

    No.SymbolDescription
    1 VLED- Backlight LED Cathode
    2 VLED+ Backlight LED Anode.
    3 GND System Ground
    4 VCC Power supply for logic operation
    5~12 R0~R7 Data bus
    13~20 G0~G7 Data bus
    21~28 B0~B7 Data bus
    29 GND System Ground
    30 DCLK Pixel clock signal
    31 DISP Display on/off control
    32 HSYNC Horizontal Sync signal
    33 VSYNC Vrtical Sync signal
    34 NC No connection (Option DE)
    35 NC No connection
    36 GND System Ground
    37 NC No connection (Option XR for RTP)
    38 NC No connection (Option YD for RTP)
    39 NC No connection (Option XL for RTP)
    40 NC No connection (Option YU for RTP)



    General Specifications

    ItemDimensionUnit
    Size 3.9 inch
    Dot Matrix 480 ×128 × RGB (TFT) dots
    Module dimension 105.5(W) × 37.0(H) × 3.05(D) mm
    Active area 95.04 × 25.34 mm
    Dot pitch 0.066(W) × 0.198(H) mm
    LCD type TFT, Normally White, Transmissive
    View Direction 6 o'clock
    Gray Scale Inversion Direction 12 o'clock
    Aspect Ratio Bar Type
    TFT Driver IC HX8278-A or Equal
    TFT Interface RGB-24BIT (SYNC mode)
    Backlight Type LED, Normally White
    Touch Screen Without touch screen
    Surface Anti-Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -30 - +80 ℃
    Storage Temperature TST -40 - +90 ℃



    Electrical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage For LCM VCC - 3.0 3.3 3.6 V
    Supply Current For LCM ICC - - 15 25 mA
    Products specifications
    Size 3.9"
    Resolution 480x128
    Active Area (mm) 95.04x25.34
    Color Full Color
    Display Interface RGB
    Display IC No
    View Angle TN
    Sunlight Readable High 601~1200cd/m²
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -30~80
    Data Connection FPC for ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
