    WF70-1024600A8L#0SP1-FC

    Be the first to review this product

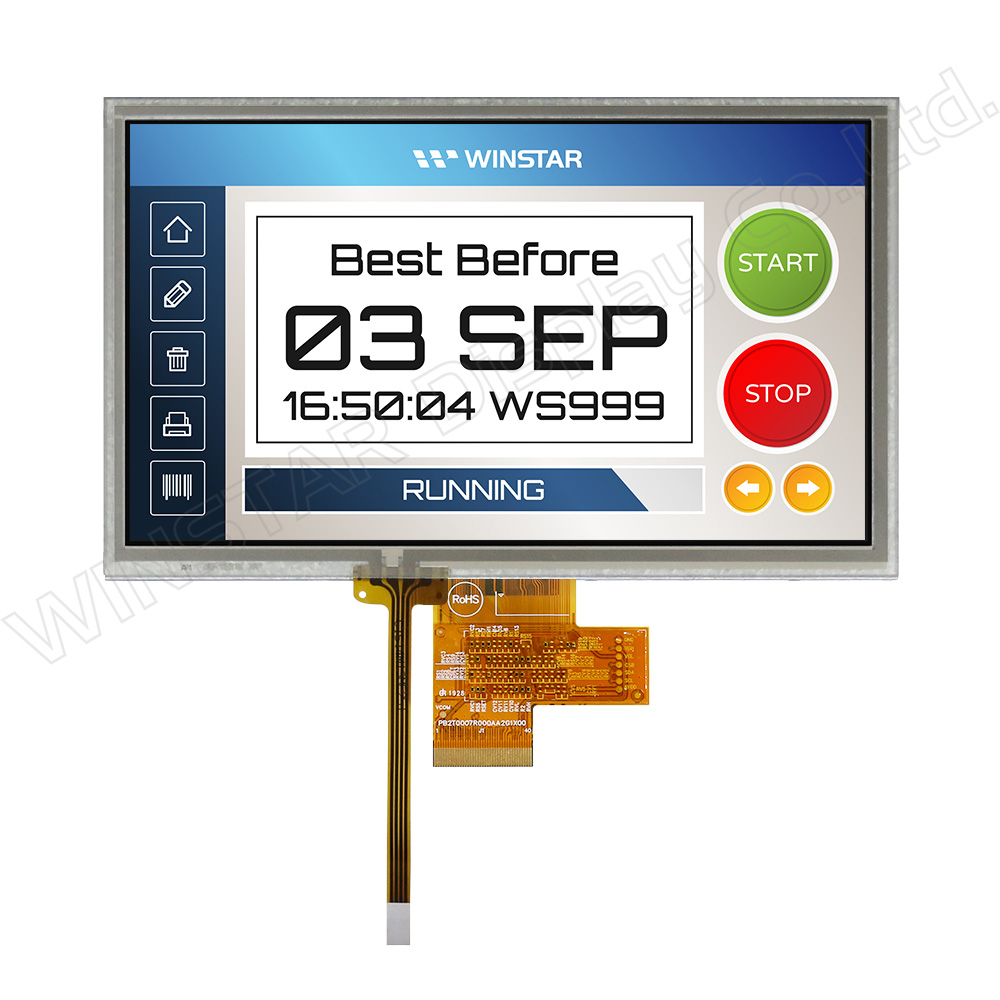

    TFT 7" 1024x600 LCD Panel, Interface LVDS, High Brightness 800cd/m², Wide View Angle (IPS), Resistive touch panel
    Manufacturer: Winstar
    SKU: WF70-1024600A8L#0SP1-FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €53.00
    €47.70
    €44.80

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €53.00 excl tax
    i h

    DESCRIPTION



    High Brightness 7 inch IPS TFT LCD module, with Resistive Touch Panel, resolution 1024x600 pixels. It is built in with ST5021 and ST5651 driver ICs, it supports LVDS interface, contrast ratio 800 (typical value), brightness 850 nits (typical value), aspect ratio 16:9, Glare surface glass, normally black, transmissive LCD type. This 7" IPS TFT has a wider viewing angle than TN TFT, it's view angle is Left:85 / Right:85 / Up:85 / Down:85 degree (typical value).

    The supply voltage (VDD) is from 3.0V to 3.6V, typical value 3.3V. Operating temperatures from -20℃ to +70℃ and storage temperatures from -30℃ to +80℃.

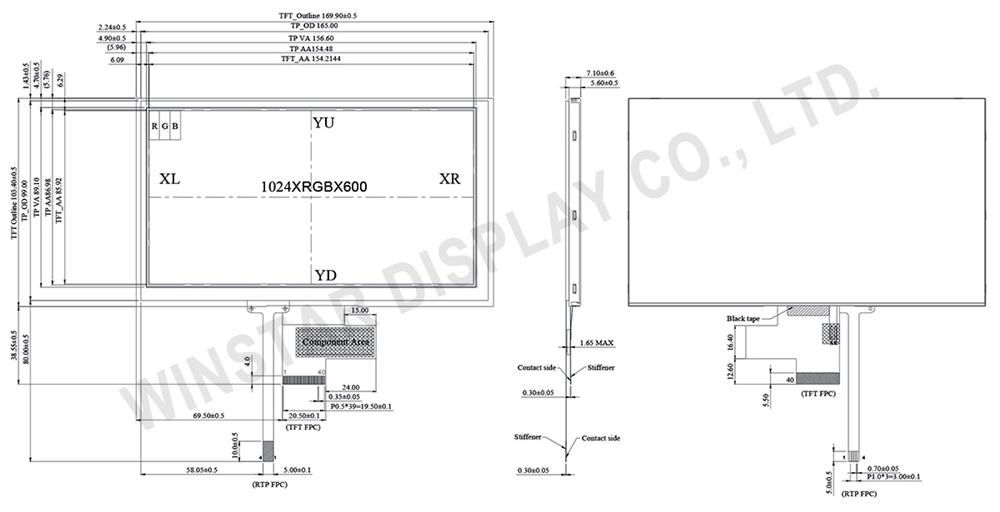

    DRAWING





    SPECIFICATIONS



    Interface

    LCM PIN Definition

    Pin No.SymbolI/OFunction
    1 VCOM P Common Voltage
    2 VDD P Digital circuit
    3 VDD P Digital circuit
    4 NC --- No connection
    5 RESET I Global reset pin
    6 STBYB   I Standby mode, Normally pulled high
    STBYB = “1”, normal operation
    STBYB = “0”, timing controller, source driver will turn off, all output are High-Z
    7 GND P Ground
    8 RXIN0- I Negative LVDS differential data input
    9 RXIN0+ I Positive LVDS differential data input
    10 GND P Ground
    11 RXIN1- I Negative LVDS differential data input
    12 RXIN1+ I Positive LVDS differential data input
    13 GND P Ground
    14 RXIN2- I Negative LVDS differential data input
    15 RXIN2+ I Positive LVDS differential data input
    16 GND P Ground
    17 RXCLKIN- I Negative LVDS differential clock input
    18 RXCLKIN+ I Positive LVDS differential clock input
    19 GND P Ground
    20 RXIN3- I Negative LVDS differential data input
    21 RXIN3+ I Positive LVDS differential data input
    22 GND P Ground
    23 NC --- No connection
    24 NC --- No connection
    25 GND P Ground
    26 NC --- No connection
    27 NC --- No connection
    28 SELB I 6bit/8bit mode select
    H:6bit / L:8bit
    29 AVDD P Power for Analog Circuit
    30 GND P Ground
    31 LED- P LED Cathode
    32 LED- P LED Cathode
    33 L/R I Horizontal inversion
    34 U/D I Vertical inversion
    35 VGL P Negative power for TFT
    36 NC --- No connection
    37 NC --- No connection
    38 VGH P Positive power for TFT
    39 LED+ P LED Anode
    40 LED+ P LED Anode

    I:input ,O:output,P:power



    General Specifications

    ItemDimensionUnit
    Size 7 inch
    Dot Matrix 1024 × RGB × 600(TFT) dots
    Module dimension 169.9(W) × 103.4(H) × 7.1(D) mm
    Active area 154.2144 × 85.92 mm
    Dot pitch 0.1506 × 0.1432 mm
    LCD type TFT, Normally Black, Transmissive
    View Direction 85/85/85/85
    Aspect Ratio 16:9
    TFT Driver IC ST5021 + ST5651 or equivalent
    Backlight Type LED, Normally White
    Touch Panel Resistive Touch Panel (RTP)
    TFT Interface LVDS
    Surface Anti-Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 － +70 ℃
    Storage Temperature TST -30 － +80 ℃



    Electrical Characteristics

    ItemSymbolValuesUnit
    Min.Typ.Max.
    Power voltage VDD 3.0 3.3 3.6 V
    Analog Power AVDD 8.9 9.0 9.1 V
    TFT Gate ON Voltage VGH 17 18 19 V
    TFT Gate OFF Voltage VGL -6.5 -6.0 -5.5 V
    TFT Common Voltage Vcom 3.0 3.15 3.3 V
    Current for Driver IDD - 14 21 mA
    Power Current IAVDD - 25 - mA
    TFT Gate ON Current IVGH - 1 - mA
    TFT Gate OFF Current IVGL - 1 - mA
    TFT Common Current IVCOM - 1 - mA


    Products specifications
    Size 7"
    Resolution 1024x600
    Active Area (mm) 154.21x85.92
    Color Full Color
    Display Interface LVDS
    Display IC No
    View Angle IPS
    Sunlight Readable High 601~1200cd/m²
    Frame No
    Touch Panel Resistive
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
