WFN0286DA2#0SPW15-FC

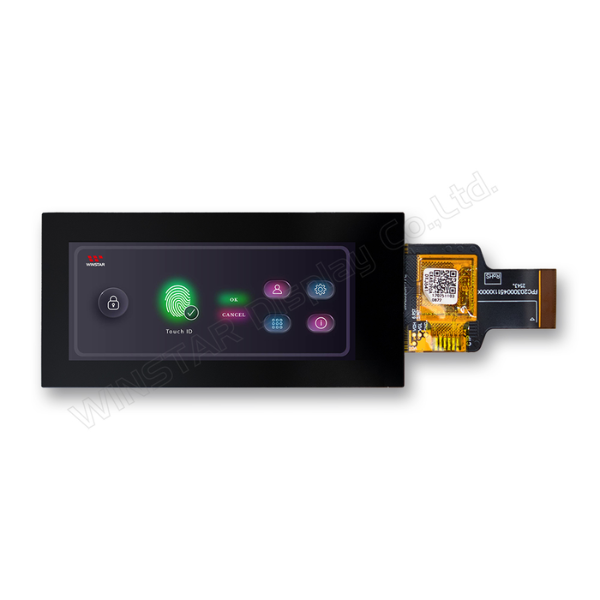

Picture of WFN0286DA2#0SPW15-FC Picture of WFN0286DA2#0SPW15-FC
TFT 2.86'' 376x960 Bar Type, Interface RGB+SPI, High Brightness 900cd/m², Wide View Angle (IPS), Super extended Temperature, Capacitive touch panel I2C intrface (IC ST1633i)

DESCRIPTION

WFN0286DA2#0SPW15-FC is a 2.86-inch bar type TFT LCD module with a resolution of 376x960 pixels. This color active matrix display uses amorphous silicon TFT as the switching device and has a 2.86-inch diagonally measured active area. The module is suitable for applications requiring a compact narrow-format display.

This module features a projected capacitive touch panel (PCAP) with optical bonding and supports 2-point touch. The touch panel uses an ST1633i driver IC or equivalent and supports the I2C interface. The optical bonding structure integrates the display and touch panel more closely.

The display adopts IPS technology and provides wide viewing angles of 85 degrees in all directions. It has a typical brightness of 900 cd/m². The module is driven by the ST7701P IC or equivalent and supports a 3-wire SPI + RGB 24-bit interface.

WFN0286DA2#0SPW15-FC is a normally black, transmissive TFT LCD module with a glare surface and an aspect ratio of 1:2.5. The operating temperature range is -30℃ to +85℃, and the storage temperature range is also -30℃ to +85℃. This module is suitable for applications requiring a compact bar type TFT display with projected capacitive touch.

Other options in this series include the high brightness version without touch, WFN0286DA2#0SPW0-FC, and the standard brightness version without touch, WFN0286DA2#0PW0-FC, allowing you to choose the most suitable model based on different application requirements.

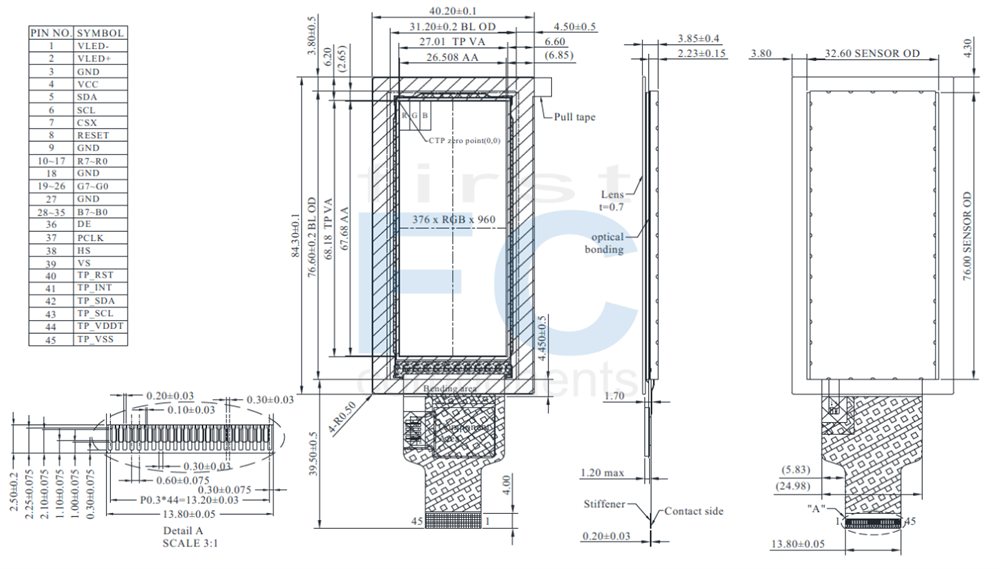

DRAWING

SPECIFICATIONS

General Specifications

ItemDimensionUnit
Size 2.86 inch
Dot Matrix 376 x RGB x 960 (TFT) dots
Module dimension 40.2 (W) x 84.3 (H) x 3.85 (D) mm
Active area 26.508 x 67.68 mm
Pixel Pitch 0.0705 x 0.0705 mm
LCD type TFT, Normally Black, Transmissive
Viewing angle 85/85/85/85
Aspect Ratio 1:2.5
TFT Interface 3W SPI+RGB24bit
TFT Driver IC ST7701P or Equivalent
Backlight Type LED, Normally White
CTP Driver IC ST1633i or equivalent
CTP Interface I2C
CTP FW Version 0x02
CTP Resolution 376x960
Touch Panel Projected Capacitive Touch Panel (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +85 ℃
Storage Temperature TST -30 － +85 ℃



Electronical Characteristics

Operating conditions

ItemSymbolMinTypMaxUnit
Interface Supply Voltage VCC 2.5 2.8 3.3 V
Current for Driver IVCC － 25 40 mA
Input voltage 'H' level VIH 0.7*VCC － VCC V
Input voltage 'L' level VIL GND － 0.3*VCC V
Output voltage 'H' level VOH 0.8* VCC － VCC V
Output voltage 'L' level VOL GND － 0.2* VCC V
Supply CTP TP_VDDT 3.0 3.3 3.6 V
TP_IDDT － 2.6 4.0 mA


LED driving conditions

ParameterSymbolMinTypMaxUnit
LED current － － 30 － mA
LED voltage VLED+ 15.5 17.0 18.5 V
LED Life Time － 50,000 － － Hr



Interface

LCM PIN Definition

Match connector: Molex 5025984593 or equivalent.
Pin No.SymbolDescription
1 VLED- LED backlight cathode
2 VLED+ LED backlight anode
3 GND Power ground
4 VCC Power Supply for Digital Circuit
5 SDA SDA: Serial data input/output bidirectional pin for SPI Interface.
6 SCL SCL: Serial clock input for SPI interface.
7 CSX - A chip select signal
Low: the chip is selected and accessible
High: the chip is not selected and not accessible
8 RESET Reset signal(low active)
9 GND Power ground
10~17 R7~R0 Red Data 7~0
18 GND Power ground
19~26 G7~G0 Green Data 7~0
27 GND Power ground
28~35 B7~B0 Blue Data 7~0
36 DE Data Enable (ENABLE)
37 PCLK Clock Signals ; Latch Data at the Falling Edge (DOTCLK)
38 HS Line synchronizing signal for RGB interface operation (HSYNC)
39 VS Frame synchronizing signal for RGB interface operation (VSYNC)
40 TP_RST CTP External Reset, Low is active
41 TP_INT CTP External interrupt to the host
42 TP_SDA CTP I2C data input and output
43 TP_SCL CTP I2C clock input
44 TP_VDDT CTP Power supply: +3.3V
45 TP_VSS CTP Ground for analog circuit


SKU: WFN0286DA2#0SPW15-FC
Brand: Winstar
Available: No
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
Price
€28.40
€22.80
€18.80

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005
