Embedded systems control many devices in common use nowadays. These series are suitable for various application fields such as POS system, medical instrument, security control, and industrial automation and automotive control electronics. FIRST Components launched a series of Embedded System products, offering a variety of TFT LCD modules (5”~12.1”) with motherboard solutions.
 |
|

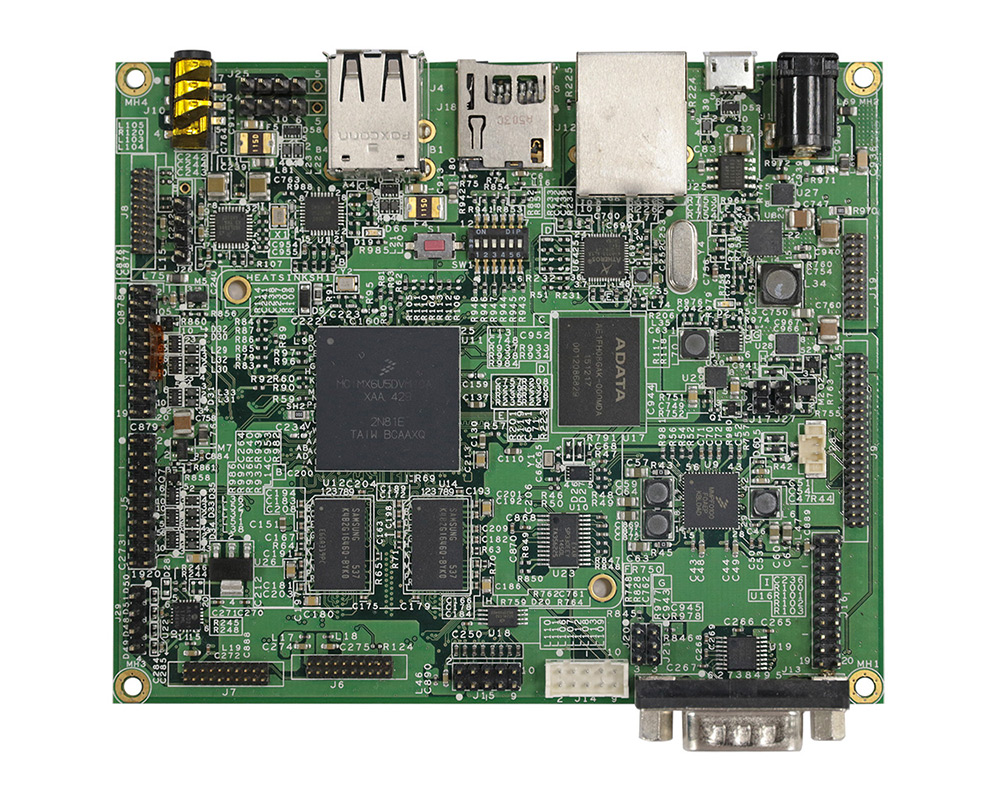

Hardware Specification of the Motherboard
| CPU | NXP Coretex-A9 Dual core 1.0GHz (Quad core is optional) | |
| Processor System | Technology | DDR3 1GB x64 bit at 400MHz |
| Capacity | Onboard DDR3 1GB (2GB Max) | |
| Flash | 4GB(8GB Max) e MMC NAND Flash for Advantech boot loader | |
| LVDS | Dual output 24 bit LVDS (1024x600 or 1024x768) | |
| Graphic | RGB | 18-bit/24-bit TTL with DE+H/V sync (800x480) |
| Graphic engine | 3D GPU with 1 shadow | |
| H/W Video codec | Support MPEG 1/2/4, H.262 Hardware Decoder | |
| MIPI | Reserved | |
| Ethernet | Speed | Ethernet 10/100/1000 |
| USB | 2 x USB 2.0 Host; 1 x USB 2.0 OTG // 2 x pin header | |
| I/O | Audio | Wolfson (Line out) |
| Serial port | RS232 (1xDB9); RS485/422/232 (1x pin header) | |
| SPI | 2 (Host, option) | |
| IIC | 2 (Client, option) | |
| Touch | 4-wire Resistive type (onboard)/ CTP is driven IIC interface | |
| GPIO | 16-pin 3.3V TTL Level GPIOs | |
| Expansion | SD Socket | 1xSD Slot |
| Power | Voltage | DC12V |
| Consumption | 2.5W | |
| Environment | Temperature | -10°C +60°C / -20°C +70°C |
| Dimension | Motherboard | 114mm x 95mm x 20mm |
