WF50BTIAGDNGD#

TFT 5" 800x480 LCD Panel, Interface RGB, 400cd/m², Capacitive touch panel I2C interface (GG, ILI2130 IC)

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

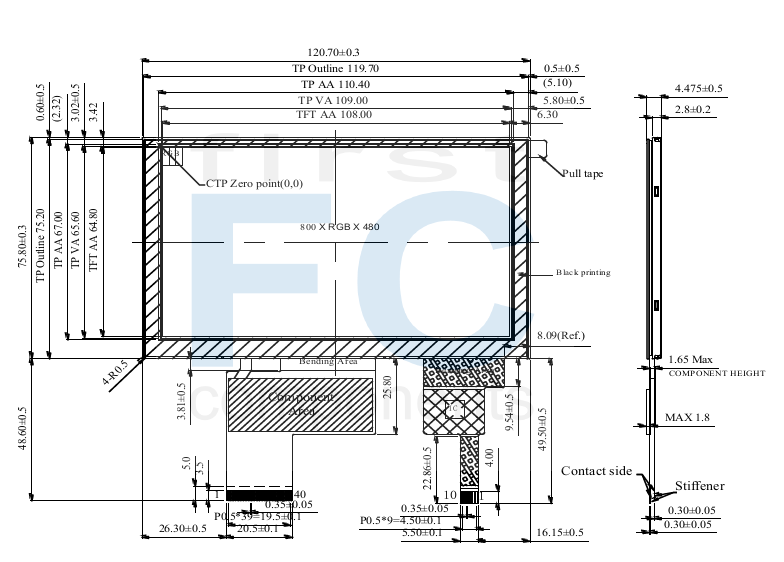

DRAWING

SPECIFICATIONS

Interface

LCM PIN Definition

Pin

Symbol

Function

Remark

1

VLED-

Power for LED backlight (Cathode)



2

VLED+

Power for LED backlight (Anode)



3

GND

Power Ground



4

VDD

Power voltage



5

R0

Red data (LSB)



6

R1

Red data



7

R2

Red data



8

R3

Red data



9

R4

Red data



10

R5

Red data



11

R6

Red data



12

R7

Red data(MSB)



13

G0

Green data(LSB)



14

G1

Green data



15

G2

Green data



16

G3

Green data



17

G4

Green data



18

G5

Green data



19

G6

Green data



20

G7

Green data(MSB)



21

B0

Blue data(LSB)



22

B1

Blue data



23

B2

Blue data



24

B3

Blue data



25

B4

Blue data



26

B5

Blue data



27

B6

Blue data



28

B7

Blue data(MSB)



29

GND

Power Ground



30

CLK

Sample clock



31

DISP

Display on/off



32

NC/HSync

No connection /Horizontal sync input

(Note)

33

NC/VSync

No connection /Vertical sync input

(Note)

34

DE

Data input enable



35

NC

No connection



36

GND

Power Ground



37

NC

No connection



38

NC

No connection



39

NC

No connection



40

NC

No connection





SKU: WF50-800480BD#D03-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€55.00
€45.80
€39.30

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€55.00 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

DRAWING

SPECIFICATIONS

Interface

LCM PIN Definition

Pin

Symbol

Function

Remark

1

VLED-

Power for LED backlight (Cathode)



2

VLED+

Power for LED backlight (Anode)



3

GND

Power Ground



4

VDD

Power voltage



5

R0

Red data (LSB)



6

R1

Red data



7

R2

Red data



8

R3

Red data



9

R4

Red data



10

R5

Red data



11

R6

Red data



12

R7

Red data(MSB)



13

G0

Green data(LSB)



14

G1

Green data



15

G2

Green data



16

G3

Green data



17

G4

Green data



18

G5

Green data



19

G6

Green data



20

G7

Green data(MSB)



21

B0

Blue data(LSB)



22

B1

Blue data



23

B2

Blue data



24

B3

Blue data



25

B4

Blue data



26

B5

Blue data



27

B6

Blue data



28

B7

Blue data(MSB)



29

GND

Power Ground



30

CLK

Sample clock



31

DISP

Display on/off



32

NC/HSync

No connection /Horizontal sync input

(Note)

33

NC/VSync

No connection /Vertical sync input

(Note)

34

DE

Data input enable



35

NC

No connection



36

GND

Power Ground



37

NC

No connection



38

NC

No connection



39

NC

No connection



40

NC

No connection





Products specifications
Brand Winstar
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller ILI2130
Preferred - Not Preferred Not Preferred
