    WF50-800480FD#0PW3-FC

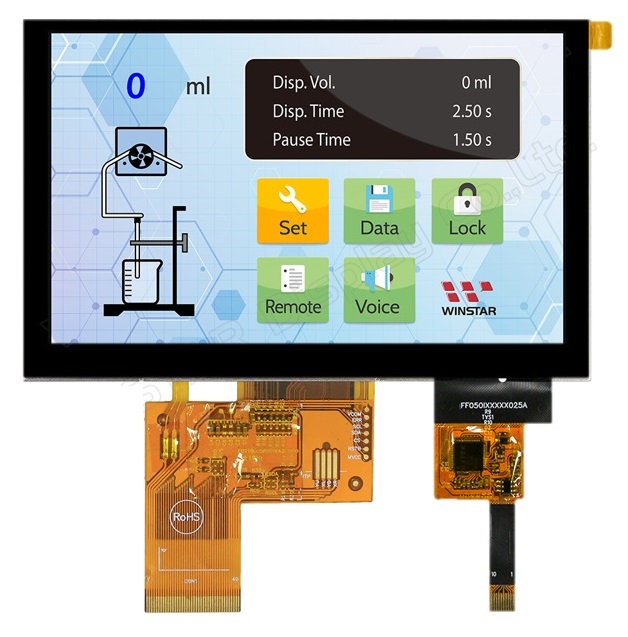

    TFT 5" 800x480 LCD Panel, Interface RGB, 400cd/m², Wide View Angle (IPS), Super extended Temperature, Capacitive touch panel I2C interface (GG, ILI2130 IC)
    Manufacturer: Winstar
    SKU: WF50-800480FD#0PW3-FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €51.10
    €46.00
    €43.20

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: The product can not be added to the cart. Please check with FC for future availability
    €51.10 excl tax
    i h

    RECOMMENDED ONLY AS SPARE PARTS

    For new projects please contact us at [email protected]

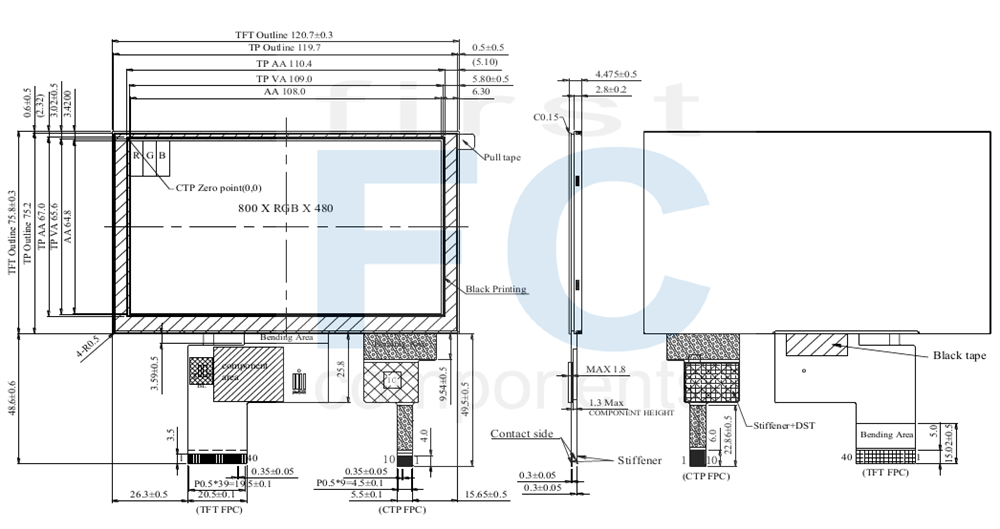

    DRAWING

    SPECIFICATIONS

    Interface

    LCM PIN Definition

    FPC Connector is used for the module electronics interface.

    Pin

    Symbol

    Function

    Remark

    1

    VLED-

    Power for LED backlight (Cathode)



    2

    VLED+

    Power for LED backlight (Anode)



    3

    GND

    Power Ground



    4

    VDD

    Power voltage



    5

    R0

    Red data (LSB)



    6

    R1

    Red data



    7

    R2

    Red data



    8

    R3

    Red data



    9

    R4

    Red data



    10

    R5

    Red data



    11

    R6

    Red data



    12

    R7

    Red data(MSB)



    13

    G0

    Green data(LSB)



    14

    G1

    Green data



    15

    G2

    Green data



    16

    G3

    Green data



    17

    G4

    Green data



    18

    G5

    Green data



    19

    G6

    Green data



    20

    G7

    Green data(MSB)



    21

    B0

    Blue data(LSB)



    22

    B1

    Blue data



    23

    B2

    Blue data



    24

    B3

    Blue data



    25

    B4

    Blue data



    26

    B5

    Blue data



    27

    B6

    Blue data



    28

    B7

    Blue data(MSB)



    29

    GND

    Power Ground



    30

    CLK

    Sample clock(DCLK)





    31

    DISP

    Display on/off



    32

    NC

    No connection



    33

    NC

    No connection



    34

    DE

    Data input enable



    35

    NC

    No connection



    36

    GND

    Power Ground



    37

    NC

    No connection



    38

    NC

    No connection



    39

    NC

    No connection



    40

    NC

    No connection



    CTP PIN Definition

    Pin

    Symbol

    Function

    Remark

    1

    VSS

    Ground for analog circuit



    2

    VDDT

    Power Supply : +3.3V



    3

    SCL

    I2C clock input I2C clock input



    4

    NC

    No connect



    5

    SDA

    I2C data input and output



    6

    NC

    No connect



    7

    /RST

    External Reset, Low is active



    8

    NC

    No connect



    9

    /INT

    External interrupt to the host



    10

    VSS

    Ground for analog circuit





    Products specifications
    Size 5"
    Resolution 800x480
    Active Area (mm) 108.00x64.80
    Color Full Color
    Display Interface RGB
    Display IC No
    View Angle IPS
    Frame No
    Touch Panel Capacitive
    O. Temperature (°C) -30~80
    Data Connection FPC for ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Touch Panel IC Controller ILI2130
    Preferred - Not Preferred Preferred
    Date Notice Link/Description
    2026/08/17 PCN Winstar TFT Series WF50-800480F and WFN0460B2 for Sitronix IC ST7262 EOL



    For more details, please contact us @ [email protected]

    *
    *
    *
    *
