WF35LTIACDNCE#

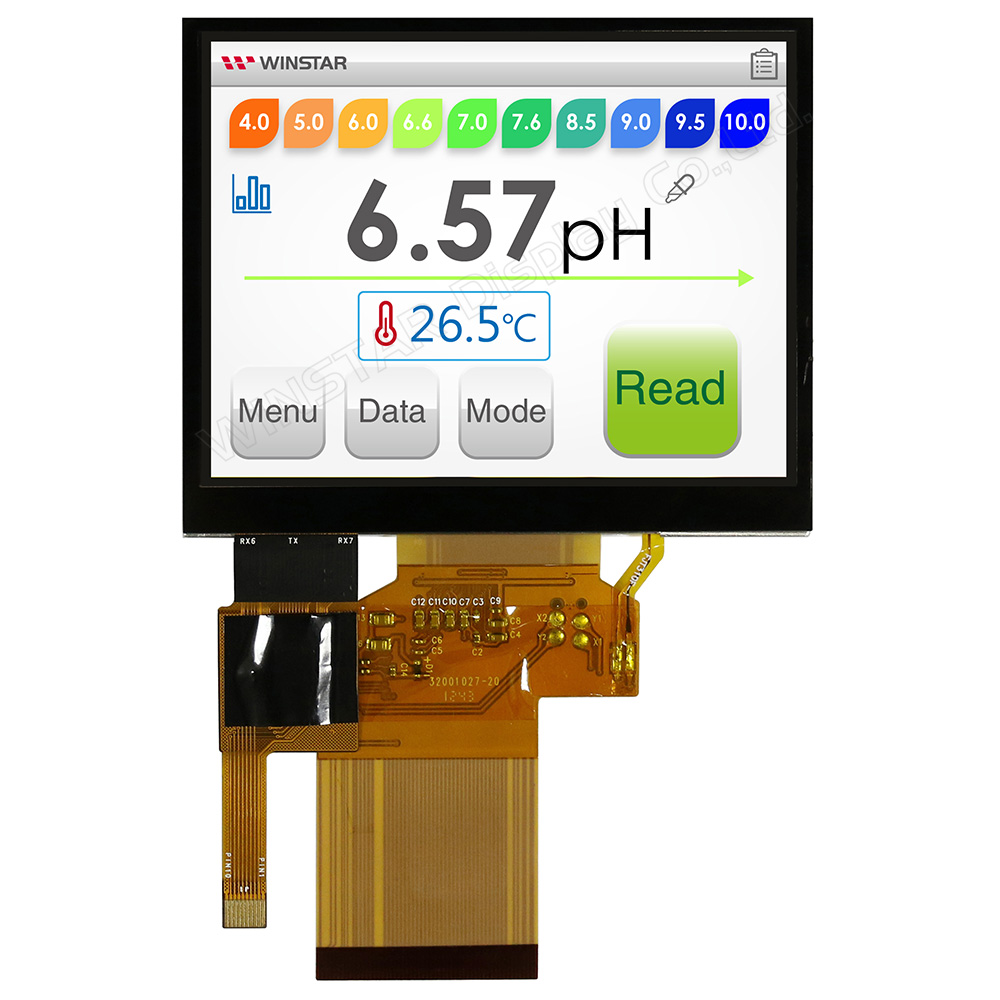

Picture of WF35LTIACDNCE# Picture of WF35LTIACDNCE#
TFT 3.5" 320x240 LCD Panel, Interface RGB, 340cd/m², Capacitive touch panel I2C interface (GFF, FT5426 IC)

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

320x240 dots TFT LCD module display with 3.5" TFT capacitive touch screen and it is easily controlled by MCU. This 3.5" TFT LCD with touch screen can be used in embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful image. It supports RGB interface.

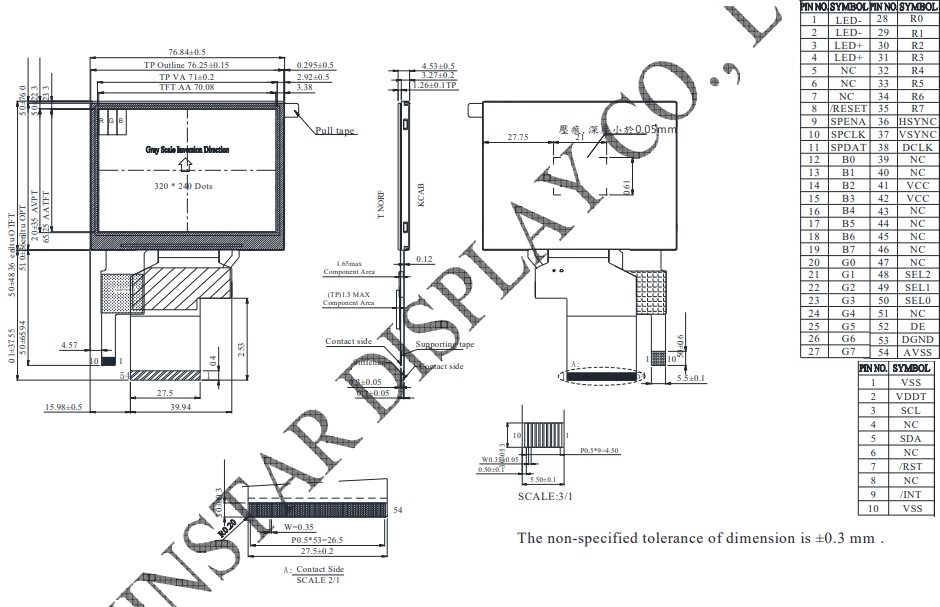

DRAWING

INTERFACE



PinSymbolFunction
1~2 LED- Power for LED backlight cathode
3~4 LED+ Power for LED backlight anode
5~7 NC No connect
8 /RESET Hardware reset
9 SPENA Chip select pin of serial interface
10 SPCLK Clock pin of serial interface
11 SPDAT Data input pin in serial mode
12~19 B0~B7 Data bus
20~27 G0~G7 Data bus
28~35 R0~R7 Data bus
36 HSYNC Line synchronization signal
37 VSYNC Frame synchronization signal
38 DCLK Dot-clock signal and oscillator source
39~40 NC No connect
41~42 VCC Power Supply
43~47 NC No connect
48~50 SEL2~SEL0 Input pin to select input interface mode
51 NC No connect
52 DE Display enable pin from controller. Internal pull high
Connect to VDDIO or floating if not used.
53 DGND System ground pin of the IC.  Connect to system ground.
54 AVSS Grounding for analog circuit. Connect to system ground.
SKU: WF35-320240LD#E02-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€42.80
€35.70
€30.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€42.80 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

320x240 dots TFT LCD module display with 3.5" TFT capacitive touch screen and it is easily controlled by MCU. This 3.5" TFT LCD with touch screen can be used in embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful image. It supports RGB interface.



DRAWING

INTERFACE



PinSymbolFunction
1~2 LED- Power for LED backlight cathode
3~4 LED+ Power for LED backlight anode
5~7 NC No connect
8 /RESET Hardware reset
9 SPENA Chip select pin of serial interface
10 SPCLK Clock pin of serial interface
11 SPDAT Data input pin in serial mode
12~19 B0~B7 Data bus
20~27 G0~G7 Data bus
28~35 R0~R7 Data bus
36 HSYNC Line synchronization signal
37 VSYNC Frame synchronization signal
38 DCLK Dot-clock signal and oscillator source
39~40 NC No connect
41~42 VCC Power Supply
43~47 NC No connect
48~50 SEL2~SEL0 Input pin to select input interface mode
51 NC No connect
52 DE Display enable pin from controller. Internal pull high
Connect to VDDIO or floating if not used.
53 DGND System ground pin of the IC.  Connect to system ground.
54 AVSS Grounding for analog circuit. Connect to system ground.
Date Notice Link/Description
2024/08/26 EOL End production of Innolux TN Panel for WF35-320240L/M/P/Q/Y Families



For more details, please contact us @ [email protected]

Products specifications
Brand Winstar
Size 3.5"
Resolution 320x240
Active Area (mm) 70.08x52.56
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 54
Pin Pitch 0.5mm
Touch Panel IC Controller FT5426
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 3.5"
Resolution 320x240
Active Area (mm) 70.08x52.56
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 54
Pin Pitch 0.5mm
Touch Panel IC Controller FT5426
Preferred - Not Preferred Not Preferred
