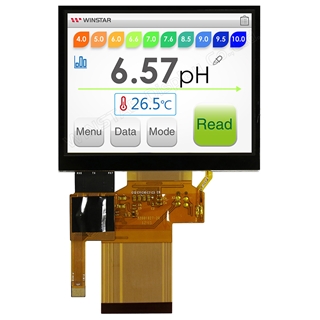

WF35-320240LD#003-FC

TFT 3.5" 320x240 LCD Panel, Interface RGB, 340cd/m², Capacitive touch panel I2C interface (GG, ILI2130 IC)

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

The 3.5-inch TFT LCD Display Module, designated as WF35-320240LD#003-FC, epitomizes top-tier display technology with its transmissive-type color active matrix TFT LCD technology, delivering exceptional image performance. Designed to meet a wide range of application needs, this TFT module boasts several outstanding features.

With its 3.5-inch diagonal size and a resolution of 320 x 240 dots, the WF35-320240LD#003-FC ensures clear viewing angles, with a view direction at 12 o'clock and grayscale inversion direction at 6 o'clock.

Operating temperature ranges from -20°C to +70°C, with a storage temperature range of -30°C to +80°C, making it suitable for various environmental conditions. The aspect ratio of this display module is 4:3, offering an appropriate width-to-height ratio suitable for industrial control, medical equipment, and consumer electronics applications.

Equipped with the HX8238 TFT driver IC, it provides excellent display performance and stable operation. The TFT interface is 24-bit RGB, ensuring compatibility with high-speed data transmission for image rendering.

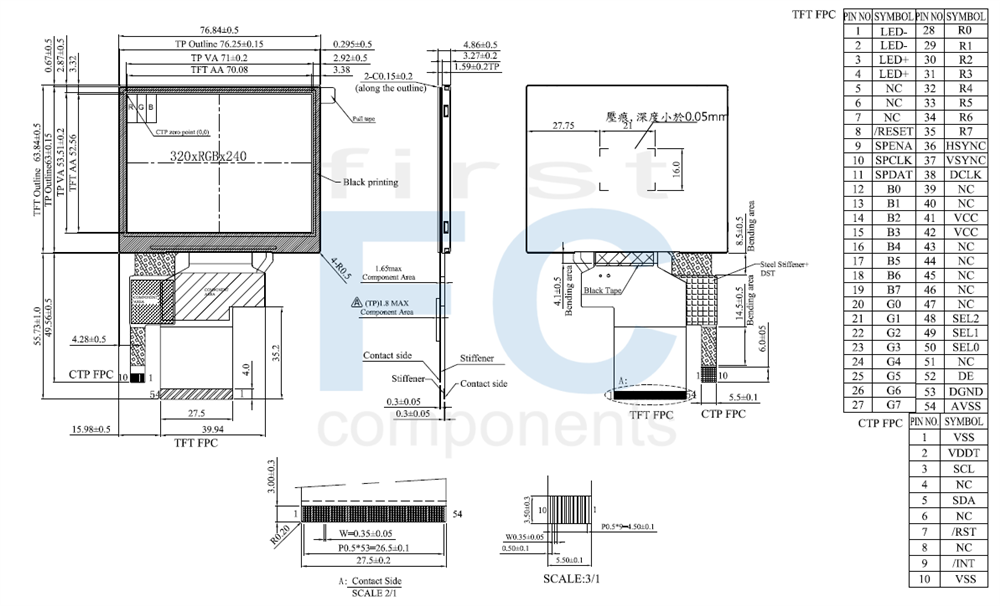

DRAWING

SPECIFICATION

LCD Type TFT
Viewing Direction 12 O'clock
Gray Scale Inversion Direction 6 O'clock
Surface Glare
Screen size 3.5" (diagonal)
Display format 320 x  RGB x 240
Operating Temperature -20°C~70°C
Storage Temperature -30°C~80°C
Active area 70.08(H) x 52.56(V) mm
Dot pitch 0.073(H) x 0.219(V) mm
Color arrangement RGB-STRIPE
Brightness 280min. 340typ cd/m2
CTP IC ILI2130 or equivalent
CTP Resolution 16834*16834
SKU: WF35-320240LD#003-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€42.30
€35.20
€29.80

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€42.30 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].



DESCRIPTION

The 3.5-inch TFT LCD Display Module, designated as WF35-320240LD#003-FC, epitomizes top-tier display technology with its transmissive-type color active matrix TFT LCD technology, delivering exceptional image performance. Designed to meet a wide range of application needs, this TFT module boasts several outstanding features.

With its 3.5-inch diagonal size and a resolution of 320 x 240 dots, the WF35-320240LD#003-FC ensures clear viewing angles, with a view direction at 12 o'clock and grayscale inversion direction at 6 o'clock.

Operating temperature ranges from -20°C to +70°C, with a storage temperature range of -30°C to +80°C, making it suitable for various environmental conditions. The aspect ratio of this display module is 4:3, offering an appropriate width-to-height ratio suitable for industrial control, medical equipment, and consumer electronics applications.

Equipped with the HX8238 TFT driver IC, it provides excellent display performance and stable operation. The TFT interface is 24-bit RGB, ensuring compatibility with high-speed data transmission for image rendering.



DRAWING

SPECIFICATION

LCD Type TFT
Viewing Direction 12 O'clock
Gray Scale Inversion Direction 6 O'clock
Surface Glare
Screen size 3.5" (diagonal)
Display format 320 x  RGB x 240
Operating Temperature -20°C~70°C
Storage Temperature -30°C~80°C
Active area 70.08(H) x 52.56(V) mm
Dot pitch 0.073(H) x 0.219(V) mm
Color arrangement RGB-STRIPE
Brightness 280min. 340typ cd/m2
CTP IC ILI2130 or equivalent
CTP Resolution 16834*16834
Date Notice Link/Description
2024/08/26 EOL End production of Innolux TN Panel for WF35-320240L/M/P/Q/Y Families



For more details, please contact us @ [email protected]

Products specifications
Brand Winstar
Size 3.5"
Resolution 320x240
Active Area (mm) 70.08x52.56
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 54
Pin Pitch 0.5mm
Touch Panel IC Controller ILI2130
Preferred - Not Preferred Not Preferred
