WEO6448S#A00-FC

PMOLED 0.66" Graphic 64x48, Sky Blue color, COG, 3V, Interface 6800,8080,SPI,I2C, Glare (FPC per Soldering)

DESCRIPTION

Winstar mini OLED display which is made of 64x48 pixels, diagonal size only 0.66 inch. It has the outline dimension of 18.46 × 18.10 mm and AA size 13.42 × 10.06 mm; it is built in with SSD1306 controller IC and it communicates via 6800/8080 8-bit parallel, I2C and 4-wire serial interface. It is a mini COG OLED display which is ultra thin (only 1.3 mm); lightweight and low power consumption. It is suitable for wearable device, mp3, portable device, personal care appliance, voice recorder pen, health device, etc.

Operating temperatures from -40℃ to +80℃; storage temperatures range from -40℃ to +80℃.

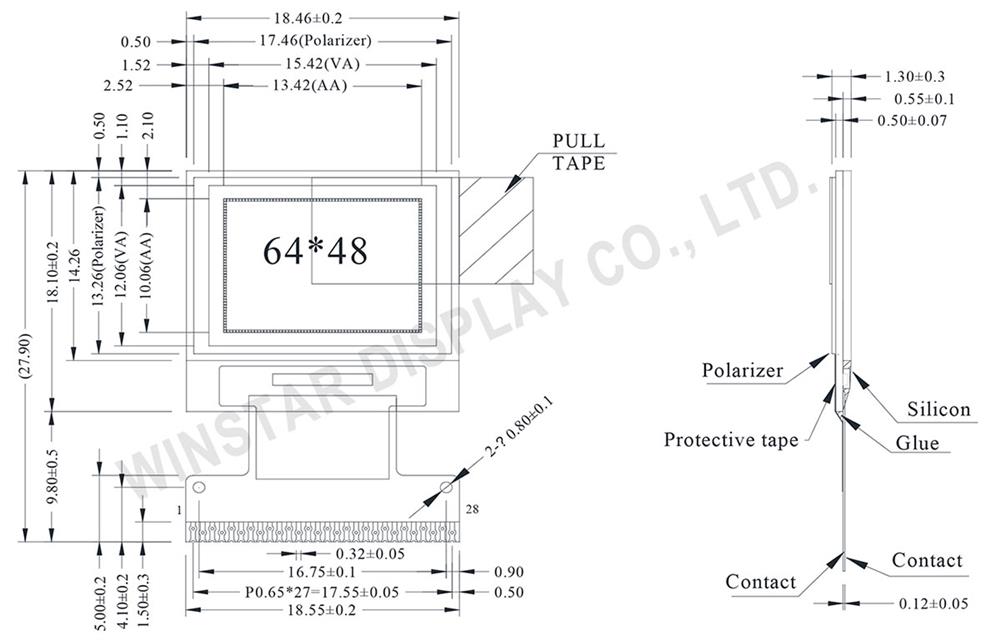

DRAWING

0.66 Mini OLED, 64x48 pixel OLED Display, Mini OLED Screen - WEO006448A

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	ESD GND	ESD Ground Pin
2	C2N	Charge pump Capacitor
3	C2P	Charge pump Capacitor
4	C1P	Charge pump Capacitor
5	C1N	Charge pump Capacitor
6	VBAT	Charge pump regulator
7	VSS	Ground Pin
8	VDD	Voltage for logic
9	BS1	Interface selection
10	BS2	Interface selection
11	CS#	Chip Select Pin
12	RES#	Reset Signal Pin
13	D/C#	Data/Command Control Pin
14	R/W#	Read/Write Control
15	E/RD#	Chip Enable Signal
16~23	D0~D7	Data Bus
24	IRFF	SEG output current refer pin
25	VCOMH	COM deselected level
26	VCC	Panel driving voltage
27	VLSS	Analog system ground pin
28	ESD GND	ESD Ground Pin

Mechanical Data

Item	Dimension	Unit
Module dimension	18.46 × 18.10	mm
Viewing area	15.42 × 12.06	mm
Active area	13.42 × 10.06	mm
Dot pitch	0.210 × 0.210	mm
Dot size	0.185 × 0.185	mm

Electronical Characteristics

Item	Symbol	Condition	Standard Value			Unit
Item	Symbol	Condition	Min	Typ	Max	Unit
Input Voltage	VDD	---	2.8	3.0	3.3	V

SKU: WEO6448S#A00-FC

Brand: Winstar

Available: No

Be the first to review this product

Price Breaks

Quantity

10+

25+

Price

€4.30

€3.20

€3.00

€2.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€4.30 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

Operating temperatures from -40℃ to +80℃; storage temperatures range from -40℃ to +80℃.

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	ESD GND	ESD Ground Pin
2	C2N	Charge pump Capacitor
3	C2P	Charge pump Capacitor
4	C1P	Charge pump Capacitor
5	C1N	Charge pump Capacitor
6	VBAT	Charge pump regulator
7	VSS	Ground Pin
8	VDD	Voltage for logic
9	BS1	Interface selection
10	BS2	Interface selection
11	CS#	Chip Select Pin
12	RES#	Reset Signal Pin
13	D/C#	Data/Command Control Pin
14	R/W#	Read/Write Control
15	E/RD#	Chip Enable Signal
16~23	D0~D7	Data Bus
24	IRFF	SEG output current refer pin
25	VCOMH	COM deselected level
26	VCC	Panel driving voltage
27	VLSS	Analog system ground pin
28	ESD GND	ESD Ground Pin

Mechanical Data

Item	Dimension	Unit
Module dimension	18.46 × 18.10	mm
Viewing area	15.42 × 12.06	mm
Active area	13.42 × 10.06	mm
Dot pitch	0.210 × 0.210	mm
Dot size	0.185 × 0.185	mm

Electronical Characteristics

Item	Symbol	Condition	Standard Value			Unit
Item	Symbol	Condition	Min	Typ	Max	Unit
Input Voltage	VDD	---	2.8	3.0	3.3	V

Products specifications

Brand	Winstar
Size	0.66"
Resolution	64x48
Active Area (mm)	13.42x10.06
Dot Size	0.18x0.18
Polarizer	Glare
Color	Sky Blue
Power supply	3V
Display Interface	6800/8080/SPI/I2C
Display IC	SSD1306BZ
Constructive Structure	COG
Frame	No
Touch Panel	No touch
O. Temperature (°C)	-40~80
Display Connection	FPC for Soldering
Pin Nr.	28
Pin Pitch	0.65mm
Preferred - Not Preferred	Not Preferred
