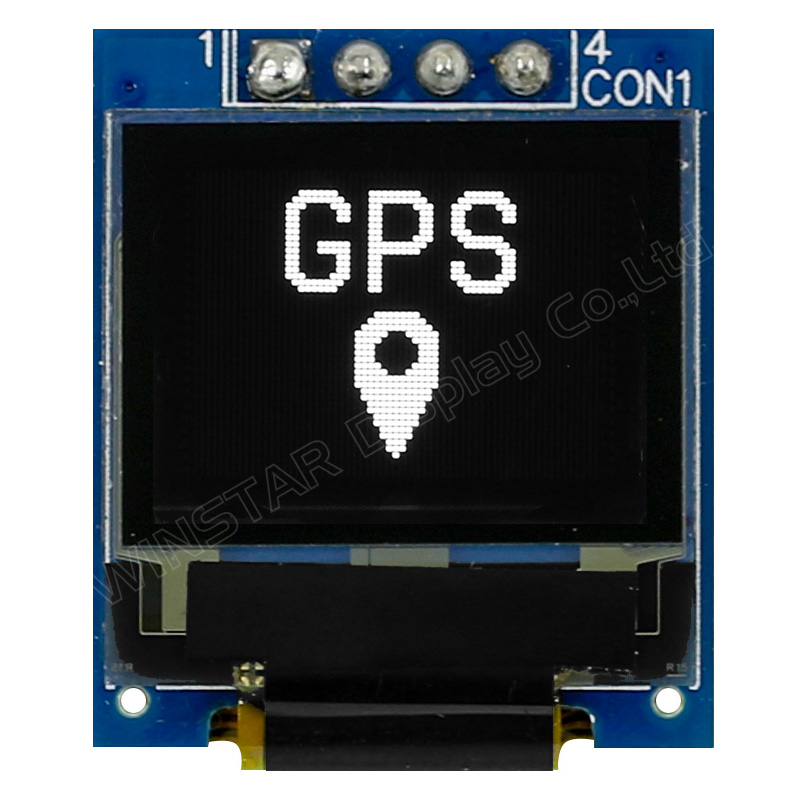

WEA6448W#A00-FC

PMOLED 0.66" Graphic 64x48, White color, COG + PCB, 3V, Interface I2C, Glare

DESCRIPTION

0.66 inch miniature OLED display which is having COG structure with PCB board, made of 64x48 pixels; with 4 metal pins on module. This module is built in with SSD1306 IC, it communicates via I2C interface only, supply voltage for Logic 3V, 1/48 duty cycle.

It is a miniature OLED display makes its self emitting, no backlight is required. The dimension size of PCB board is very close to this 0.66" OLED panel size which makes it easily to design on customers' applications. This module is suitable for industrial device, smart home application, portable device, health device, meter device, etc. Operating temperatures from -40℃ to +80℃; storage temperatures range from -40℃ to +85℃.

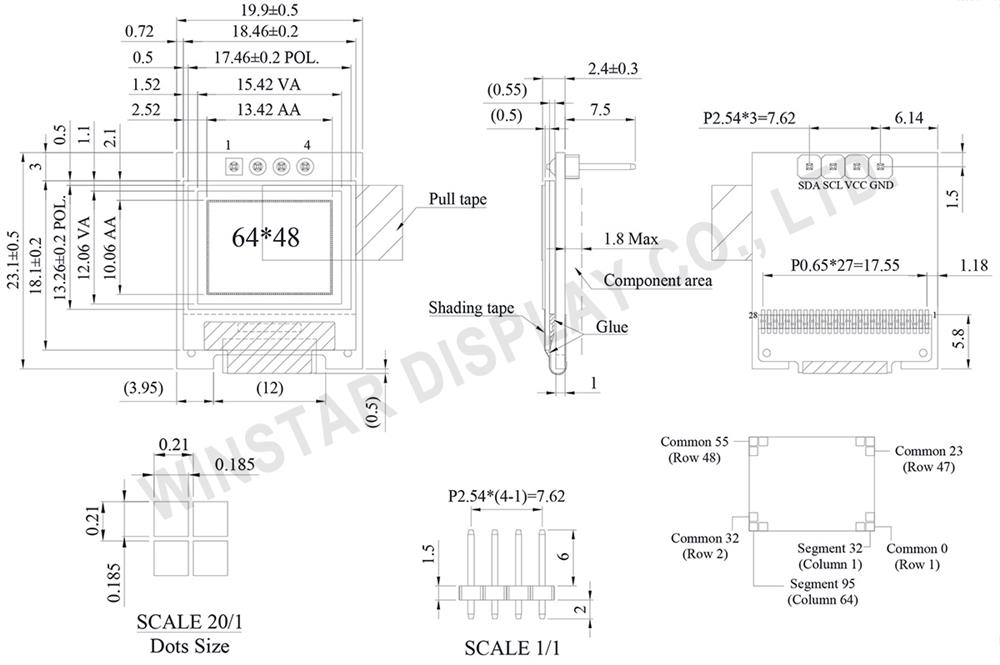

DRAWING

Miniature OLED Display, 64x48 OLED, 0.66 OLED - WEA006448A

SPECIFICATIONS

Interface Pin Function

No.	Symbol	Function
1	GND	Ground
2	VCC	Power supply input.
3	SCL	When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI).
4	SDA

Mechanical Data

Item	Dimension	Unit
Dot Matrix	64 × 48 Dots	－
Module dimension	19.9 × 23.1 × 2.4	mm
Active Area	13.42 × 10.06	mm
Pixel Size	0.185 × 0.185	mm
Pixel Pitch	0.210 × 0.210	mm
Display Mode	Passive Matrix
Display Color	Monochrome
Drive Duty	1/48 Duty
IC	SSD1306
Interface	I2C
Size	0.66 inch

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VDD	－	2.8	3.0	3.3	V
Input High Volt.	VIH	－	0.8×VDD	－	VDDIO	V
Input Low Volt.	VIL	－	0	－	0.2×VDD	V
Output High Volt.	VOH	－	0.9×VDD	－	VDDIO	V
Output Low Volt.	VOL	－	0	－	0.1×VDD	V
50% check Board operating Current	ICC	VCC=7.5V	－	12.0	20.0	mA

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage for Logic	VDD	0	4.0	V
Supply Voltage for Display	VCC	0	16.0	V
Operating Temperature	TOP	-40	+80	°C
Storage Temperature	TSTG	-40	+85	°C

SKU: WEA6448W#A00-FC

Brand: Winstar

Available: Yes

Be the first to review this product

Price Breaks

Quantity

10+

25+

Price

€5.30

€3.90

€3.70

€3.60

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€5.30 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

DRAWING

SPECIFICATIONS

Interface Pin Function

No.	Symbol	Function
1	GND	Ground
2	VCC	Power supply input.
3	SCL	When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI).
4	SDA

Mechanical Data

Item	Dimension	Unit
Dot Matrix	64 × 48 Dots	－
Module dimension	19.9 × 23.1 × 2.4	mm
Active Area	13.42 × 10.06	mm
Pixel Size	0.185 × 0.185	mm
Pixel Pitch	0.210 × 0.210	mm
Display Mode	Passive Matrix
Display Color	Monochrome
Drive Duty	1/48 Duty
IC	SSD1306
Interface	I2C
Size	0.66 inch

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VDD	－	2.8	3.0	3.3	V
Input High Volt.	VIH	－	0.8×VDD	－	VDDIO	V
Input Low Volt.	VIL	－	0	－	0.2×VDD	V
Output High Volt.	VOH	－	0.9×VDD	－	VDDIO	V
Output Low Volt.	VOL	－	0	－	0.1×VDD	V
50% check Board operating Current	ICC	VCC=7.5V	－	12.0	20.0	mA

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage for Logic	VDD	0	4.0	V
Supply Voltage for Display	VCC	0	16.0	V
Operating Temperature	TOP	-40	+80	°C
Storage Temperature	TSTG	-40	+85	°C

Products specifications

Brand	Winstar
Size	0.66"
Resolution	64x48
Active Area (mm)	13.42x10.06
Dot Size	0.18x0.18
Polarizer	Glare
Color	White
Power supply	3V
Display Interface	I2C
Display IC	SSD1306BZ
Constructive Structure	COG + PCB
Frame	No
Touch Panel	No touch
O. Temperature (°C)	-40~80
Display Connection	Pin Strip
Pin Nr.	4
Pin Pitch	2.54mm
Preferred - Not Preferred	Not Preferred
