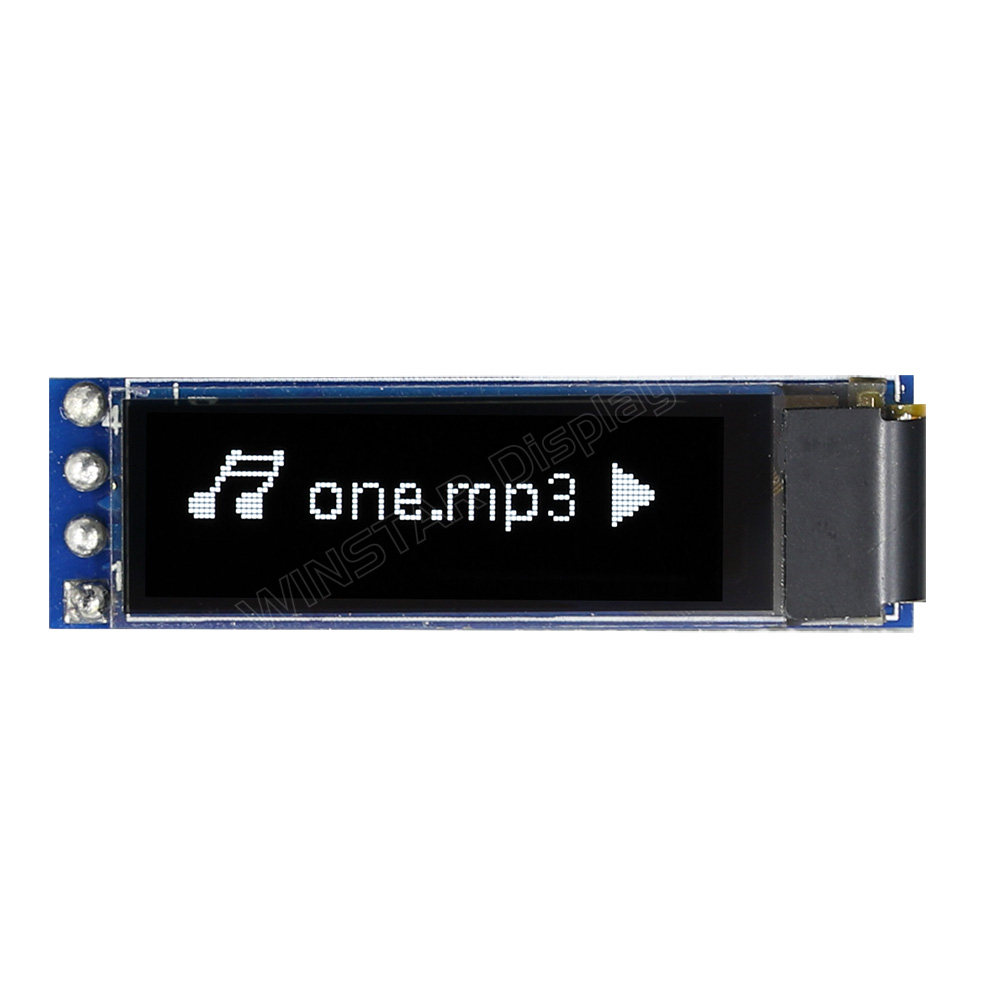

    PMOLED 0.84" Graphic 96x16, White color, COG + PCB, 3V, Interface I2C, Glare
    Manufacturer: Winstar
    SKU: WEA9616W#A00-FC
    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    25+
    Price
    €6.50
    €5.90
    €5.50
    €5.40

    For quantities above 49pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €6.50 excl tax
    i h

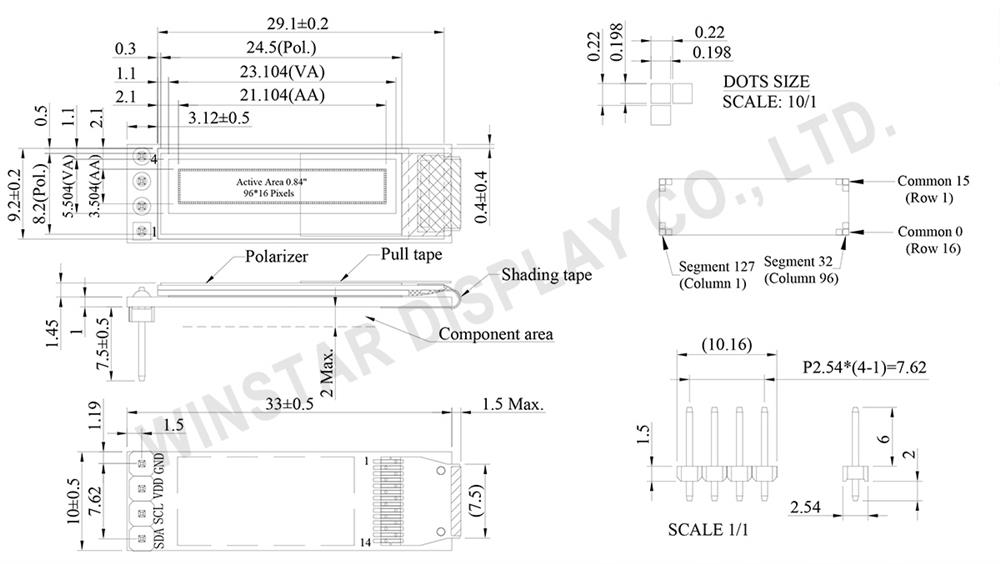

    DRAWING

    0.84 OLED Display (COG PCB) - WEA009616A - Winstar



    SPECIFICATIONS

    Interface Pin Function

    No.SymbolFunction
    1 GND Ground
    2 VDD Power supply input.
    3 SCL When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI).
    4 SDA



    Mechanical Data

    ItemDimensionUnit
    Dot Matrix 96 x 16 Dots
    Module dimension 33 × 10 × 2.45 mm
    Active Area 21.104 × 3.504 mm
    Pixel Size 0.198 × 0.198 mm
    Pixel Pitch 0.220 × 0.220 mm
    Display Mode Passive Matrix
    Display Color Monochrome
    Drive Duty 1/16Duty
    IC SSD1306
    Interface I2C
    Size 0.84 inch



    Electronical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage for Logic VDD - 2.8 3.0 3.2 V
    Input High Volt. VIH - 0.8×VDD - VDDIO V
    Input Low Volt. VIL - 0 - 0.2×VDD V
    Output High Volt. VOH - 0.9×VDD - VDDIO V
    Output Low Volt. VOL - 0 - 0.1×VDD V
    50% check Board operating Current ICC VCC=7.5V - 13.0 26.0 mA



    Absolute Maximum Ratings

    ParameterSymbolMinMaxUnit
    Supply Voltage for Logic VDD 0 4.0 V
    Supply Voltage for Display VCC 0 16.0 V
    Operating Temperature TOP -40 80 °C
    Storage Temperature TSTG -40 85 °C


    Products specifications
    Size 0.84"
    Resolution 96x16
    Active Area (mm) 21.10x3.50
    Dot Size 0.19x0.19
    Polarizer Glare
    Color White
    Power supply 3V
    Display Interface I2C
    Display IC SSD1306BZ
    Constructive Structure COG + PCB
    Frame No
    Touch Panel No touch
    O. Temperature (°C) -40~80
    Data Connection Pin Strip
    Pin Nr. 4
    Pin Pitch 2.54mm
    Preferred - Not Preferred Not Preferred
    *
    *
    *
    *
