    PMOLED 2.7" Graphic 128x64, White color, COG, 3V, Interface 6800,8080,SPI,I2C, SSD1309ZC IC, Glare, Capacitive touch panel I2C (IC GT911)
    Manufacturer: Winstar
    SKU: WEO12864W#Q02D-FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €46.00
    €41.40
    €38.90

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €46.00 excl tax
    i h

    DESCRIPTION

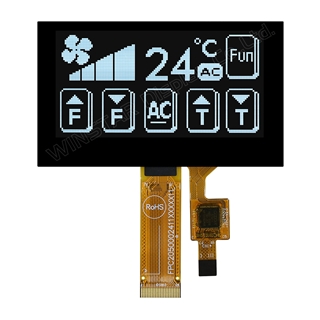

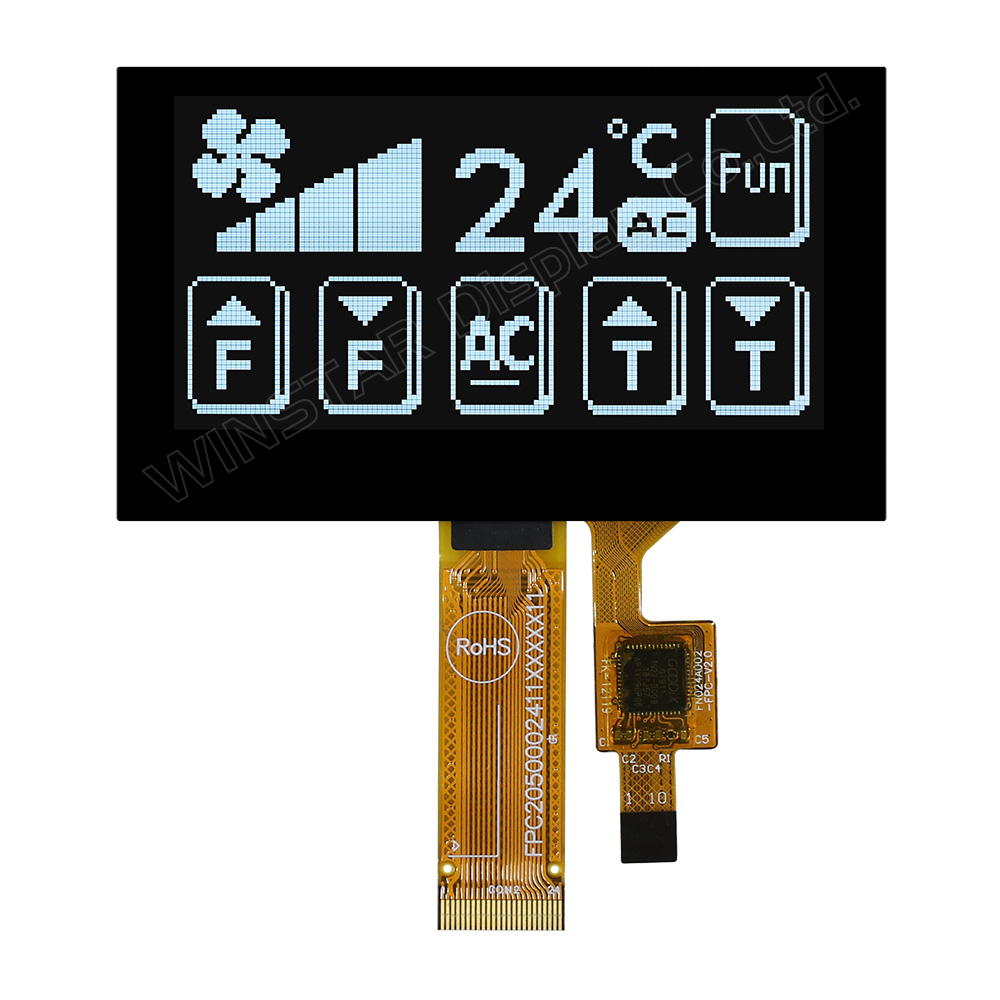

    Most popular 2.7 inch COG Graphic OLED display with Capacitive Touch Panel on module; which is made of resolution 128x64 dots. This module is built in with SSD1309 IC, it supports 6800/8080 8-bit parallel, 4-Wire SPI and I2C interface, supply voltage for logic is from 2.8V to 3.3V, typical value 3.0V, supply voltage for display 13V, 1/64 driving duty. This model adopted GT911 as touch IC, which supports I2C interface, one Detect Point for CTP.

    Available colors: White, Yellow, Green, Sky blue.

    This 2.7" with CTP model is ideal for smart home applications, intelligent technology devices, energy systems, meter devices, communication systems, medical instrument, etc. Operating at temperatures from -20℃ to 70℃; istorage temperatures  from -30℃ to 80℃.

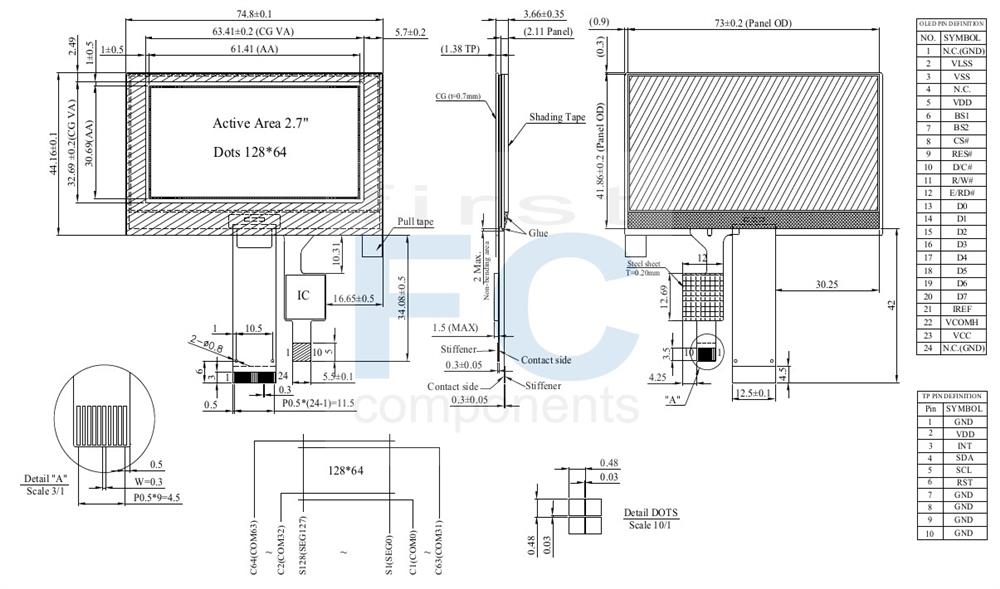

    DRAWING



    SPECIFICATIONS

    Interface Pin Function

    No.SymbolFunction
    1 NC(GND) No connection
    2 VLSS This is an analog ground pin
    3 VSS Ground.
    4 NC No connection
    5 VDD Power supply pin for core logic operation
    6 BS1 MCU bus interface selection pins. Select appropriate logic setting as described in the following table. BS2 and BS1 are pin select
     BS1BS2
    I2C 1 0
    4-wire Serial 0 0
    8-bit 68XX parallel 0 1
    8-bit 80XX parallel 1 1
    Note
    (1) 0 is connected to VSS
    (2) 1 is connected to VDD
    7 BS2
    8 CS# This pin is the chip select input connecting to the MCU.
    The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).
    9 RES# This pin is reset signal input.
    When the pin is pulled LOW, initialization of the chip is executed.
    Keep this pin pull HIGH during normal operation.
    10 D/C# This pin is Data/Command control pin connecting to the MCU.
    When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data.
    When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register.
    In I2C mode, this pin acts as SA0 for slave address selection.
    11 R/W# This pin is read / write control input pin connecting to the MCU interface.
    When 6800 interface mode is selected, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH and write mode when LOW.
    When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected.
    When serial or I2C interface is selected, this pin must be connected to VSS.
    12 E/RD# This pin is MCU interface input.
    When 6800 interface mode is selected, this pin will be used as the Enable (E) signal.
    Read/write operation is initiated when this pin is pulled HIGH and the chip is selected.
    When 8080 interface mode is selected, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected.
    When serial or I2C interface is selected, this pin must be connected to VSS.
    13-20 D0~D7 These pins are bi-directional data bus connecting to the MCU data bus.
    Unused pins are recommended to tie LOW.
    When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be kept NC.
    When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
    21 IREF This pin is the segment output current reference pin.
    IREF is supplied externally.
    22 VCOMH COM signal deselected voltage level.
    A capacitor should be connected between this pin and VSS.
    23 VCC Power supply for panel driving voltage. This is also the most positive power voltage supply pin.
    24 NC(GND) No connection



    CTP PIN Definition

    No.SymbolFunction
    1 GND Power ground
    2 VDD Power supply
    3 INT Interrupt signal, active low, asserted to request
    Host start a new transaction
    4 SDA I2C data signal
    5 SCL I2C clock signal
    6 RST External reset signal, active low
    7 GND Power ground
    8 GND Power ground
    9 GND Power ground
    10 GND Power ground



    Mechanical Data

    ItemDimensionUnit
    Dot Matrix 128 x 64 -
    Module dimension 74.8 × 44.16 × 3.66 mm
    Active Area 61.41 × 30.69 mm
    Pixel Size 0.45 × 0.45 mm
    Pixel Pitch 0.48 × 0.48 mm
    Display Mode Passive Matrix
    Display Color Monochrome
    Drive Duty 1/64 Duty
    IC SSD1309
    Interface 6800,8080,4-Wire SPI,I2C
    Size 2.7 inch
    CTP IC GT911
    Detect Point 1
    CTP Interface I2C
    Surface Glare



    Absolute Maximum Ratings

    Absolute Maximum Ratings

    ParameterSymbolMinMaxUnit
    Supply Voltage for Logic VDD -0.3 4 V
    Supply Voltage for Display VCC 0 15 V
    Operating Temperature TOP -20 +70 °C
    Storage Temperature TSTG -30 +80 °C




    Touch Panel Controller GT911

    ParameterSymbolMinMaxUnit
    Power Supply Voltage VDD 2.66 3.47 V



    Electronical Characteristics

    DC Electrical Characteristics

    ItemSymbolConditionMinTypMaxUnit
    Supply Voltage for Logic VDD - 2.8 3.0 3.3 V
    Supply Voltage for Display VCC - 12.5 13 13.5 V
    High Level Input VIH - 0.8×VDD - - V
    Low Level Input VIL - - - 0.2×VDD V
    High Level Output VOH - 0.9×VDD - - V
    Low Level Output VOL - - - 0.1×VDD V
    50% Check Board operating Current VCC =13.0V 20 30 50 mA




    Touch Panel Controller GT911

    ItemSymbolMinTypMaxUnit
    Supply Voltage VDD 2.8 3.0 3.3 V
    Input High Volt. VIH 0.75xVDD   VDD+0.3 V
    Input Low Volt. VIL -0.3 - 0.25xVDD V
    Output High Volt. VOH 0.85xVDD - - V
    Output Low Volt. VOL - - 0.15xVDD V


    Products specifications
    Size 2.7"
    Resolution 128x64
    Active Area (mm) 61.41x30.69
    Dot Size 0.45x0.45
    Polarizer Glare
    Color White
    Power supply 3V
    Display Interface 6800/8080/SPI/I2C
    Display IC SSD1309ZC
    Constructive Structure COG
    Frame No
    Touch Panel Capacitive
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 24
    Pin Pitch 0.5mm
    Touch Panel IC Controller GT911
