WAA0154BA4#A2N0AA-FC

E-paper 1.54" 200x200, Color Black on White, Interface SPI

DESCRIPTION

WAA0154BA4#A2N0AA-FC is an active matrix electrophoretic display, with interface annd a reference system design. The 1.54" active area contains 200 x 200 pixels, and has 1-bit black/white full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are supplied with each panel.

Features

  • High contrast
  • High reflectance
  • Ultra-wide viewing angle
  • Ultra-low power consumption
  • Pure reflective mode
  • Bi-stable
  • Commercial temperature range
  • Landscape, portrait mode
  • Anti-glare hard-coated front surface
  • Low current sleep mode
  • On-chip display RAM
  • Serial Peripheral Interface available
  • On-chip oscillator
  • On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
  • I2C Signal Master Interface to read external temperature sensor
  • Available in COG package with IC thickness 300µm

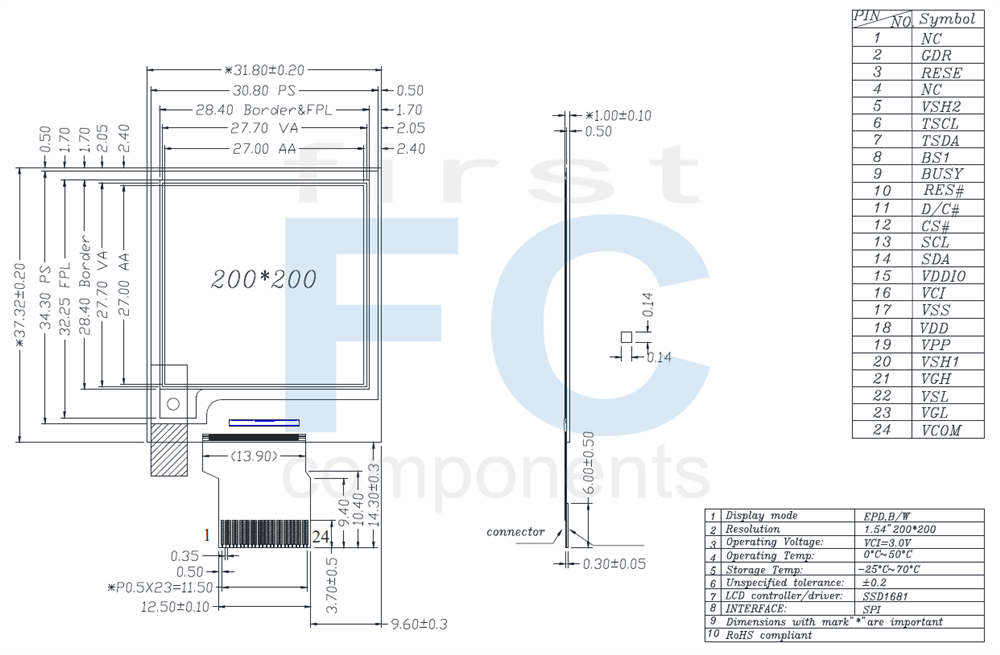

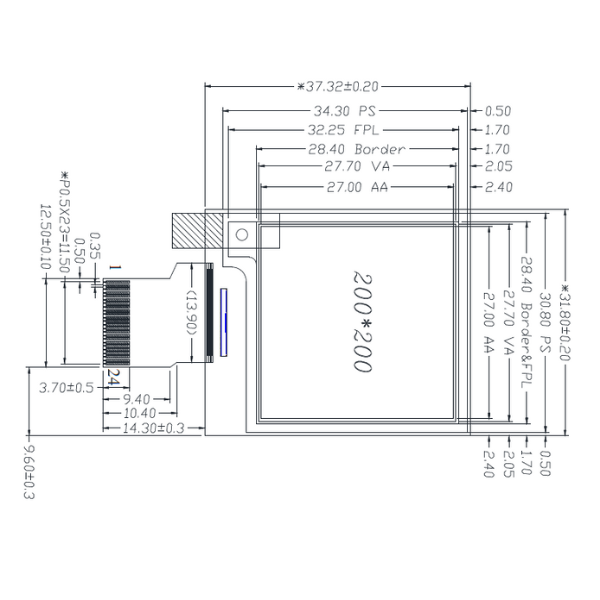

DRAWING

SPECIFICATIONS

General Specifications

ParameterSpecificationsUnit
Screen Size 1.54 Inch
Display Resolution 200(H)×200(V) Pixel
Active Area 27.0(H)×27.0(V) mm
Pixel Pitch 0.14×0.14 mm
Pixel Configuration Square
Outline Dimension 31.80(H)×37.32(V) ×1.0(D) mm
Module Weight 2.18±0.5 g



Electrical Characteristics

Absolute Maximum Ratings

ParameterSymbolRatingUnit
Logic supply voltage VCI -0.5 to +4.0 V
Logic Input voltage VIN -0.5 to VCI +0.5 V
Logic Output voltage VOUT -0.5 to VCI +0.5 V
Operating Temp range TOPR 0 to +50 ºC
Storage Temp range TSTG -25 to+70 ºC
Optimal Storage Temp TSTGo 23±2 °C
Optimal Storage Humidity HSTGo 55±10 %RH



Interface

Input /Output Pin Assignment

No.NameI/ODescription
1 NC   Do not connect with other NC pins
2 GDR O N-Channel MOSFET Gate Drive Control
3 RESE I Current Sense Input for the Control Loop
4 NC NC Do not connect with other NC pins
5 VSH2 C Positive Source driving voltage(Red)
6 TSCL O I2C Interface to digital temperature sensor Clock pin
7 TSDA I/O I2C Interface to digital temperature sensor Data pin
8 BS1 I Bus Interface selection pin
9 BUSY O Busy state output pin
10 RES# I Reset signal input. Active Low.
11 D/C# I Data /Command control pin
12 CS# I Chip select input pin
13 SCL I Serial Clock pin (SPI)
14 SDA I Serial Data pin (SPI)
15 VDDIO P Power Supply for interface logic pins It should be connected with VCI
16 VCI P Power Supply for the chip
17 VSS P Ground
18 VDD C Core logic power pin VDD can be regulated internally from VCI. A capacitor should be connected between VDD and VSS
19 VPP P FOR TEST
20 VSH1 C Positive Source driving voltage
21 VGH C Power Supply pin for Positive Gate driving voltage and VSH1
22 VSL C Negative Source driving voltage
23 VGL C Power Supply pin for Negative Gate driving voltage VCOM and VSL
24 VCOM C VCOM driving voltage
SKU: WAA0154BA4#A2N0AA-FC
Brand: Winstar
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
Price
€9.80
€7.20

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€9.80 excl tax

DESCRIPTION

WAA0154BA4#A2N0AA-FC is an active matrix electrophoretic display, with interface annd a reference system design. The 1.54" active area contains 200 x 200 pixels, and has 1-bit black/white full display capabilities. An integrated circuit contains gate buffer, source buffer, interface, timing control logic, oscillator, DC-DC, SRAM, LUT, VCOM and border are supplied with each panel.

Features

  • High contrast
  • High reflectance
  • Ultra-wide viewing angle
  • Ultra-low power consumption
  • Pure reflective mode
  • Bi-stable
  • Commercial temperature range
  • Landscape, portrait mode
  • Anti-glare hard-coated front surface
  • Low current sleep mode
  • On-chip display RAM
  • Serial Peripheral Interface available
  • On-chip oscillator
  • On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage
  • I2C Signal Master Interface to read external temperature sensor
  • Available in COG package with IC thickness 300µm

DRAWING

SPECIFICATIONS

General Specifications

ParameterSpecificationsUnit
Screen Size 1.54 Inch
Display Resolution 200(H)×200(V) Pixel
Active Area 27.0(H)×27.0(V) mm
Pixel Pitch 0.14×0.14 mm
Pixel Configuration Square
Outline Dimension 31.80(H)×37.32(V) ×1.0(D) mm
Module Weight 2.18±0.5 g



Electrical Characteristics

Absolute Maximum Ratings

ParameterSymbolRatingUnit
Logic supply voltage VCI -0.5 to +4.0 V
Logic Input voltage VIN -0.5 to VCI +0.5 V
Logic Output voltage VOUT -0.5 to VCI +0.5 V
Operating Temp range TOPR 0 to +50 ºC
Storage Temp range TSTG -25 to+70 ºC
Optimal Storage Temp TSTGo 23±2 °C
Optimal Storage Humidity HSTGo 55±10 %RH



Interface

Input /Output Pin Assignment

No.NameI/ODescription
1 NC   Do not connect with other NC pins
2 GDR O N-Channel MOSFET Gate Drive Control
3 RESE I Current Sense Input for the Control Loop
4 NC NC Do not connect with other NC pins
5 VSH2 C Positive Source driving voltage(Red)
6 TSCL O I2C Interface to digital temperature sensor Clock pin
7 TSDA I/O I2C Interface to digital temperature sensor Data pin
8 BS1 I Bus Interface selection pin
9 BUSY O Busy state output pin
10 RES# I Reset signal input. Active Low.
11 D/C# I Data /Command control pin
12 CS# I Chip select input pin
13 SCL I Serial Clock pin (SPI)
14 SDA I Serial Data pin (SPI)
15 VDDIO P Power Supply for interface logic pins It should be connected with VCI
16 VCI P Power Supply for the chip
17 VSS P Ground
18 VDD C Core logic power pin VDD can be regulated internally from VCI. A capacitor should be connected between VDD and VSS
19 VPP P FOR TEST
20 VSH1 C Positive Source driving voltage
21 VGH C Power Supply pin for Positive Gate driving voltage and VSH1
22 VSL C Negative Source driving voltage
23 VGL C Power Supply pin for Negative Gate driving voltage VCOM and VSL
24 VCOM C VCOM driving voltage
Products specifications
Brand Winstar
Size 1.54"
Resolution 200x200
Active Area (mm) 27.00x27.00
Dot Size 0.14x0.14
Color Black on White
Display Interface SPI
Display IC SSD1681
O. Temperature (°C) 0~50
Display Connection FPC for ZIF Connector
Pin Nr. 24
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
