    WF50-7201280DM#0P15-FC

    TFT 5" 720x1280 Portrait, Optical Bonding, Interface MIPI DSI IC ILI9881C, Wide View Angle (IPS), 200cd/m², Capacitive touch panel I2C interface (GG + Optical bonding)
    Manufacturer: Winstar
    SKU: WF50-7201280DM#0P15-FC

    Accessory kit

    PRICE BREAKS
    Quantity
    1+
    5+
    10+
    Price
    €49.30
    €44.40
    €41.80

    For quantities above 24pcs pls send your enquiry to [email protected] or call +39 0332 1888005

    Availability: In stock
    €49.30 excl tax
    i h

    DESCRIPTION



    5 inch IPS TFT display with projected capacitive touch panel optical bonding technology on module. This 5 inch TFT-LCD module supports (Mobile Industry Processor Interface) DSI (Display Serial Interface) interface and is featured with IPS panel which having the advantages of wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degree (typical) and having HD 720 x1280 resolution. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

    This 5 inch portrait mode TFT LCD integrated driver IC ILI9881C on module and capacitive touchscreen IC GT928, power supply for analog circuit range from 2.5v to 3.6v. The model is adopting optical bonding solution capacitive touch panel which featuring the advantage of increases the ruggedness of the display and improving durability to having better able to resist scratches, fluids, stains and dirt.

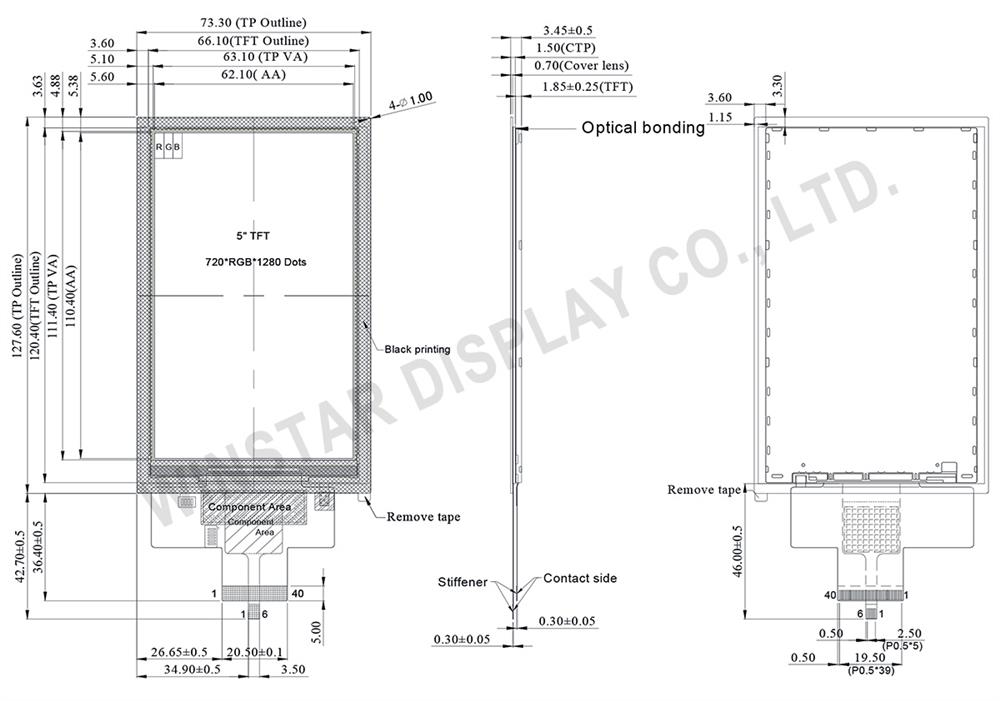

    DRAWING




    SPECIFICATIONS



    Interface

    LCM PIN Definition

    PinSymbolFunction
    1-9 NC No connection
    10-11 VCI Power supply for analog circuits. Connect to an external power supply of 2.5V to 3.6V
    12-13 NC No connection
    14 RESET The external reset input
    Initializes the chip with a low input. Be sure to execute a power-on reset after supplying power.
    Fix to VDDI level when not in use.
    15 TE  Tearing effect output pin.
    Leave the pin open when not in use.
    16 NC No connection
    17-18 GND Power ground
    19-20 IOVCC Power supply for analog circuits. Connect to an external power supply of 1.65V to 3.6V
    21 GND Power ground
    22 D3P MIPI DSI differential data pair. (Data lane 3)
    23 D3N
    24 GND Power ground
    25 D2P MIPI DSI differential data pair. (Data lane 2)
    26 D2N
    27 GND Power ground
    28 CLKP MIPI DSI differential clock pair
    29 CLKN
    30 GND Power ground
    31 D1P MIPI DSI differential data pair. (Data lane 1)
    32 D1N
    33 GND Power ground
    34 D0P MIPI DSI differential data pair. (Data lane 0)
    35 D0N
    36-37 GND Power ground
    38 LED+ Power for LED backlight anode
    39 LED1- Power for LED1 backlight cathode
    40 LED2- Power for LED2 backlight cathode




    PCAP PIN Definition

    PinSymbolFunction
    1 SDA I2C data input and output
    2 SCL I2C clock input
    3 RST External Reset, Low is active
    4 INT External interrupt to the host
    5 VDD Power Supply : +3.3V
    6 GND Ground for analog circuit



    General Specifications

    ItemDimensionUnit
    Size 5.0 inch
    Dot Matrix 720 × 3(RGB) ×1280 dots
    Module dimension 73.3 (W) × 127.6 (H) ×3.45 mm
    Active area 62.1 (W) × 110.4 (H) mm
    Dot pitch 0.08625(W) × 0.08625(H) mm
    LCD type TFT, Normally Black, Transmissive
    Viewing angle 80/80/80/80
    Aspect Ratio 16:9
    Backlight Type LED, Normally White
    TFT Drive IC ILI9881C or Equivalent
    TFT Interface MIPI
    PCAP FW Version 0x5F
    PCAP IC GT928
    Touch Panel Projected capacitive touch panel (PCAP)
    Surface Glare



    Absolute Maximum Ratings

    ItemSymbolMinTypMaxUnit
    Operating Temperature TOP -20 - +70 ℃
    Storage Temperature TST -30 - +80 ℃



    Electrical Characteristics

    Typical Operation Conditions

    ItemSymbolValuesUnit
    MinTypMax
    Power supply for analog circuit VCI 2.5 3.3 3.6 V
    Power supply for logic circuit IOVCC 1.65 1.8 3.6 V
    Supply Voltage For Touch Logic VDDT 2.8 - 3.3 V
    Current for Driver IDD - 44 - mA



    Backlight Driving Conditions

    ParameterSymbolMin.Typ.Max.Unit
    LED current ILED - 40 - mA
    LED voltage VLED+ 19.6 - 23.8 V
    LED Life Time   30,000 - - Hr
    Products specifications
    Size 5"
    Resolution 720x1280
    Active Area (mm) 62.10x110.40
    Color Full Color
    Display Interface MIPI
    Display IC ILI9881C
    View Angle IPS
    Frame No
    Touch Panel Capacitive (Optical Bonding)
    O. Temperature (°C) -20~70
    Data Connection FPC for ZIF Connector
    Pin Nr. 40
    Pin Pitch 0.5mm
    Touch Panel IC Controller GT928
    Preferred - Not Preferred Preferred
    *
    *
    *
    *
