WEA64128W#BA3N00000-FC

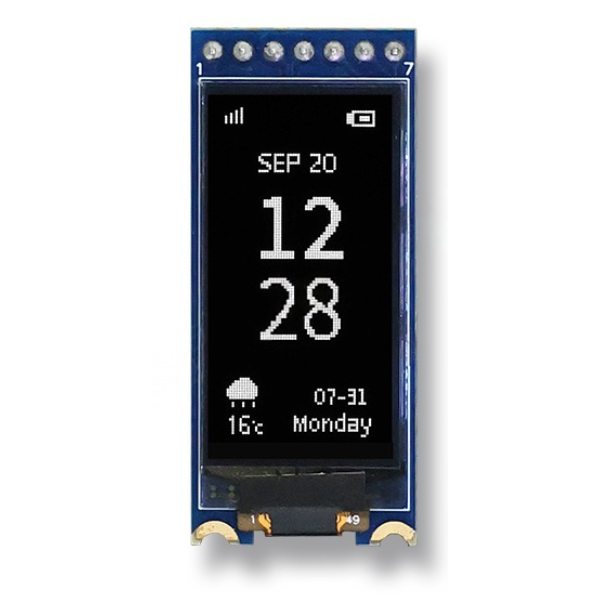

PMOLED 1.3" Graphic 64x128, White, COG + PCB, 3.3V, Interface SPI, Anti-glare

DESCRIPTION

The WEA64128W#BA3N00000-FC 1.3-inch OLED Display Module features an integrated PCB design, eliminating the need for customers to develop their own PCB. The module includes two mounting holes on the PCB, making installation into equipment easy and efficient. This 1.3-inch OLED SPI display provides a simple, high-performance solution for a wide range of applications.

Key Features

Sharp Display with Outstanding Contrast: 64x128 resolution and a 10,000:1 contrast ratio deliver clear, precise visuals.
Reliable in Extreme Environments: Operates seamlessly in temperatures from -40℃ to 80℃, ensuring stable performance even in demanding conditions.
Flexible Integration: Equipped with an SH1107 driver IC and 4-wire SPI interface, making integration with systems straightforward.
Low Power, High Efficiency: Designed for efficient power management, supporting a 3.3V logic supply, making it ideal for low-power applications.
Orientation Flexibility: Supports both portrait (vertical) and landscape (horizontal) display orientations, offering flexibility for diverse application designs.

Versatile Applications:

Gaming Peripherals: Ideal for keyboard displays and steering wheel panels, offering precise feedback and dynamic visuals.
Smart Home & Automation: Perfect for smart locks and home control panels, enhancing user experience.
Industrial Control & Testing: Reliable for industrial systems and precision instrument displays.
Wearable Devices: Suitable for smartwatches and health trackers, providing accurate and reliable data visualization.

The WEA64128W#BA3N00000-FC 1.3-inch OLED Display Module offers a stable, high-quality solution for engineers across various industries. Its integrated PCB design with mounting holes, efficient power management, and flexible integration options make it the perfect choice for your next product development.

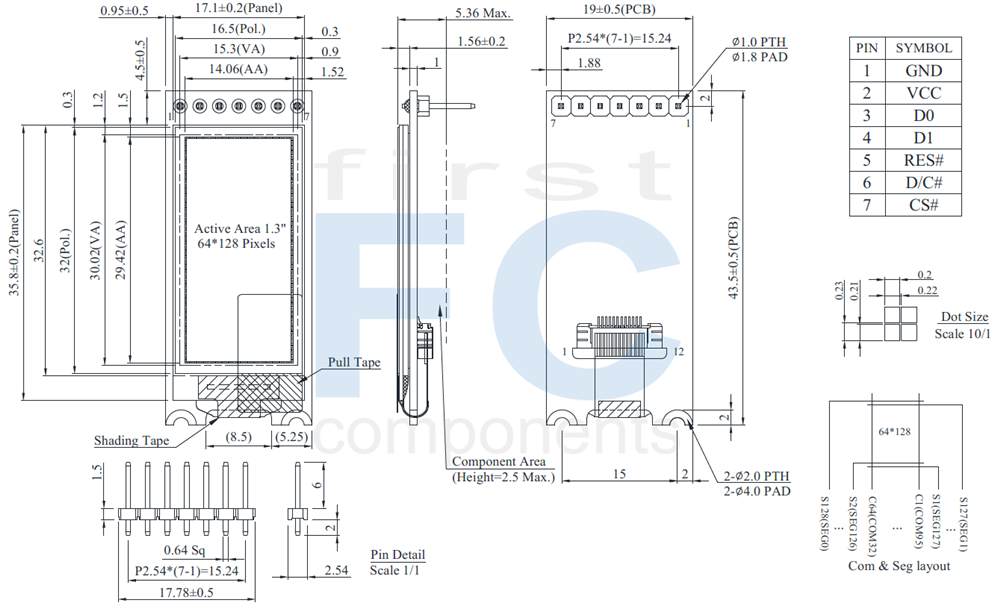

DRAWING

SPECIFICATIONS

Mechanical Data

Item	Dimension	Unit
Dot Matrix	64 x 128	Dots
Module dimension	17.1 × 35.80 ×5.36 Max.	mm
Active Area	14.06 × 29.42	mm
Pixel Size	0.20 × 0.21	mm
Pixel Pitch	0.22 × 0.23	mm
Display Mode	Passive Matrix
Display Color	Monochrome
Drive Duty	1/64 Duty
IC	SH1107
Interface	4-wire SPI
Size	1.3 inch

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage for Logic	VCC	-0.3	3.6	V
Operating Temperature	TOP	-40	+80	°C
Storage Temperature	TSTG	-40	+85	°C

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VCC	－	2.5	3.3	3.5	V
Input High Volt.	VIH	－	0.8×VCC	－	VCC	V
Input Low Volt.	VIL	－	VSS	－	0.2×VCC	V
Output High Volt.	VOH	－	0.8×VCC	－	VCC	V
Output Low Volt.	VOL	－	VSS	－	0.2×VCC	V
Display 50% Pixel on	ICC	VCC=3.3V	－	60	90	mA

Interface Pin Function

No.	Symbol	Function
1	GND	Ground
2	VCC	Power supply input
3	D0	The serial clock input
4	D1	The serial data input
5	RES#	This is a reset signal input pad. When RE#S is set to “L”, the settings are initialized. The reset operation is performed by the RES# signal level.
6	D/C#	This is the Data/Command control
7	CS#	This pad is the chip select input.

SKU: WEA64128W#BA3N00000-FC

Brand: Winstar

Available: Yes

Be the first to review this product

Price Breaks

Quantity

10+

25+

Price

€9.50

€7.00

€6.70

€6.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€9.50 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

Key Features

Sharp Display with Outstanding Contrast: 64x128 resolution and a 10,000:1 contrast ratio deliver clear, precise visuals.
Reliable in Extreme Environments: Operates seamlessly in temperatures from -40℃ to 80℃, ensuring stable performance even in demanding conditions.
Flexible Integration: Equipped with an SH1107 driver IC and 4-wire SPI interface, making integration with systems straightforward.
Low Power, High Efficiency: Designed for efficient power management, supporting a 3.3V logic supply, making it ideal for low-power applications.
Orientation Flexibility: Supports both portrait (vertical) and landscape (horizontal) display orientations, offering flexibility for diverse application designs.

Versatile Applications:

Gaming Peripherals: Ideal for keyboard displays and steering wheel panels, offering precise feedback and dynamic visuals.
Smart Home & Automation: Perfect for smart locks and home control panels, enhancing user experience.
Industrial Control & Testing: Reliable for industrial systems and precision instrument displays.
Wearable Devices: Suitable for smartwatches and health trackers, providing accurate and reliable data visualization.

DRAWING

SPECIFICATIONS

Mechanical Data

Item	Dimension	Unit
Dot Matrix	64 x 128	Dots
Module dimension	17.1 × 35.80 ×5.36 Max.	mm
Active Area	14.06 × 29.42	mm
Pixel Size	0.20 × 0.21	mm
Pixel Pitch	0.22 × 0.23	mm
Display Mode	Passive Matrix
Display Color	Monochrome
Drive Duty	1/64 Duty
IC	SH1107
Interface	4-wire SPI
Size	1.3 inch

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage for Logic	VCC	-0.3	3.6	V
Operating Temperature	TOP	-40	+80	°C
Storage Temperature	TSTG	-40	+85	°C

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VCC	－	2.5	3.3	3.5	V
Input High Volt.	VIH	－	0.8×VCC	－	VCC	V
Input Low Volt.	VIL	－	VSS	－	0.2×VCC	V
Output High Volt.	VOH	－	0.8×VCC	－	VCC	V
Output Low Volt.	VOL	－	VSS	－	0.2×VCC	V
Display 50% Pixel on	ICC	VCC=3.3V	－	60	90	mA

Interface Pin Function

No.	Symbol	Function
1	GND	Ground
2	VCC	Power supply input
3	D0	The serial clock input
4	D1	The serial data input
5	RES#	This is a reset signal input pad. When RE#S is set to “L”, the settings are initialized. The reset operation is performed by the RES# signal level.
6	D/C#	This is the Data/Command control
7	CS#	This pad is the chip select input.

Products specifications

Brand	Winstar
Size	1.3"
Resolution	64x128
Active Area (mm)	14.06x29.42
Dot Size	0.20x0.21
Polarizer	Anti-glare
Color	White
Power supply	3.3V
Display Interface	SPI
Display IC	SH1107
Constructive Structure	COG + PCB
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-40~80
Display Connection	Pin Strip
Pin Nr.	7
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
