WAA0154BA4#A2N1AA-FC

E-paper 1.54" 200x200, Color Black on White, Interface SPI with Front-Light 1.54"

DESCRIPTION

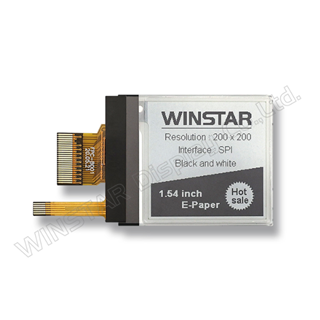

WAA0154BA4#A2N1AA-FC is an Electronic Paper Display (EPD) with a front light panel. The 1.54" active area contains 200 x 200 pixels and supports 1-bit black-and-white display with full display capabilities. The integrated circuit includes a gate buffer, source buffer, interface, timing controller logic, oscillator, DC-DC converter, SRAM, LUT, VCOM, and borders for each panel.

Features

High contrast
High reflectance
Ultra-wide viewing angle
Ultra-low power consumption
Pure reflective mode
Bi-stable
Commercial temperature range
Supports both landscape and portrait modes
Anti-glare hard-coated front surface
Low current sleep mode
On-chip display RAM
Serial Peripheral Interface (SPI) available
On-chip oscillator
On-chip booster and regulator control for generating VCOM, Gate, and Source driving voltages
I2C master interface for reading an external temperature sensor
Front light panel with 3 LEDs in series
Available in COG package with IC thickness of 300µm

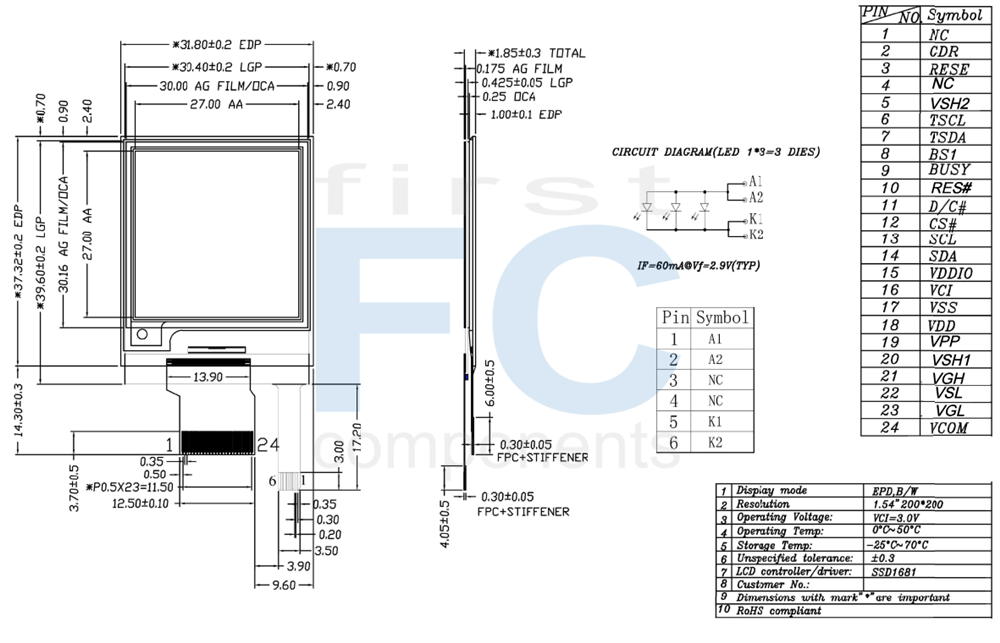

DRAWING

SPECIFICATIONS

General Specifications

Parameter	Specifications	Unit
Screen Size	1.54	Inch
Display Resolution	200(H)×200(V)	Pixel
Active Area	27.0(H)×27.0(V)	mm
Pixel Pitch	0.14×0.14	mm
Pixel Configuration	Square
Outline Dimension	31.80(H)×37.32 (V) ×1.85(D)	mm
Module Weight	3.15±0.5	g

Electrical Characteristics

Absolute Maximum Ratings

Parameter	Symbol	Rating	Unit
Logic supply voltage	VCI	-0.5 to +4.0	V
Logic Input voltage	VIN	-0.5 to VCI +0.5	V
Logic Output voltage	VOUT	-0.5 to VCI +0.5	V
Operating Temp range	TOPR	0 to +50	ºC
Storage Temp range	TSTG	-25 to+70	ºC
Optimal Storage Humidity	HSTGo	55±10	%RH

Interface

Input /Output Pin Assignment

No.	Name	I/O	Description
1	NC		Do not connect with other NC pins
2	GDR	O	N-Channel MOSFET Gate Drive Control
3	RESE	I	Current Sense Input for the Control Loop
4	NC	NC	Do not connect with other NC pins
5	VSH2	C	Positive Source driving voltage(Red)
6	TSCL	O	I2C Interface to digital temperature sensor Clock pin
7	TSDA	I/O	I2C Interface to digital temperature sensor Data pin
8	BS1	I	Bus Interface selection pin
9	BUSY	O	Busy state output pin
10	RES#	I	Reset signal input. Active Low.
11	D/C#	I	Data /Command control pin
12	CS#	I	Chip select input pin
13	SCL	I	Serial Clock pin (SPI)
14	SDA	I/O	Serial Data pin (SPI)
15	VDDIO	P	Power Supply for interface logic pins It should be connected with VCI
16	VCI	P	Power Supply for the chip
17	VSS	P	Ground
18	VDD	C	Core logic power pin VDD can be regulated internally from VCI. A capacitor should be connected between VDD and VSS
19	VPP	P	FOR TEST
20	VSH1	C	Positive Source driving voltage
21	VGH	C	Power Supply pin for Positive Gate driving voltage and VSH1
22	VSL	C	Negative Source driving voltage
23	VGL	C	Power Supply pin for Negative Gate driving voltage VCOM and VSL
24	VCOM	C	VCOM driving voltage

SKU: WAA0154BA4#A2N1AA-FC

Brand: Winstar

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

Price

€14.80

€10.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€14.80 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

Features

High contrast
High reflectance
Ultra-wide viewing angle
Ultra-low power consumption
Pure reflective mode
Bi-stable
Commercial temperature range
Supports both landscape and portrait modes
Anti-glare hard-coated front surface
Low current sleep mode
On-chip display RAM
Serial Peripheral Interface (SPI) available
On-chip oscillator
On-chip booster and regulator control for generating VCOM, Gate, and Source driving voltages
I2C master interface for reading an external temperature sensor
Front light panel with 3 LEDs in series
Available in COG package with IC thickness of 300µm

DRAWING

SPECIFICATIONS

General Specifications

Parameter	Specifications	Unit
Screen Size	1.54	Inch
Display Resolution	200(H)×200(V)	Pixel
Active Area	27.0(H)×27.0(V)	mm
Pixel Pitch	0.14×0.14	mm
Pixel Configuration	Square
Outline Dimension	31.80(H)×37.32 (V) ×1.85(D)	mm
Module Weight	3.15±0.5	g

Electrical Characteristics

Absolute Maximum Ratings

Parameter	Symbol	Rating	Unit
Logic supply voltage	VCI	-0.5 to +4.0	V
Logic Input voltage	VIN	-0.5 to VCI +0.5	V
Logic Output voltage	VOUT	-0.5 to VCI +0.5	V
Operating Temp range	TOPR	0 to +50	ºC
Storage Temp range	TSTG	-25 to+70	ºC
Optimal Storage Humidity	HSTGo	55±10	%RH

Interface

Input /Output Pin Assignment

No.	Name	I/O	Description
1	NC		Do not connect with other NC pins
2	GDR	O	N-Channel MOSFET Gate Drive Control
3	RESE	I	Current Sense Input for the Control Loop
4	NC	NC	Do not connect with other NC pins
5	VSH2	C	Positive Source driving voltage(Red)
6	TSCL	O	I2C Interface to digital temperature sensor Clock pin
7	TSDA	I/O	I2C Interface to digital temperature sensor Data pin
8	BS1	I	Bus Interface selection pin
9	BUSY	O	Busy state output pin
10	RES#	I	Reset signal input. Active Low.
11	D/C#	I	Data /Command control pin
12	CS#	I	Chip select input pin
13	SCL	I	Serial Clock pin (SPI)
14	SDA	I/O	Serial Data pin (SPI)
15	VDDIO	P	Power Supply for interface logic pins It should be connected with VCI
16	VCI	P	Power Supply for the chip
17	VSS	P	Ground
18	VDD	C	Core logic power pin VDD can be regulated internally from VCI. A capacitor should be connected between VDD and VSS
19	VPP	P	FOR TEST
20	VSH1	C	Positive Source driving voltage
21	VGH	C	Power Supply pin for Positive Gate driving voltage and VSH1
22	VSL	C	Negative Source driving voltage
23	VGL	C	Power Supply pin for Negative Gate driving voltage VCOM and VSL
24	VCOM	C	VCOM driving voltage

Products specifications

Brand	Winstar
Size	1.54"
Resolution	200x200
Active Area (mm)	27.00x27.00
Dot Size	0.14x0.14
Color	Black on White
Display Interface	SPI
Display IC	SSD1681
O. Temperature (°C)	0~50
Display Connection	FPC for ZIF Connector
Pin Nr.	24
Pin Pitch	0.5mm
Preferred - Not Preferred	Preferred
