TST0004R3C1241XXXX06

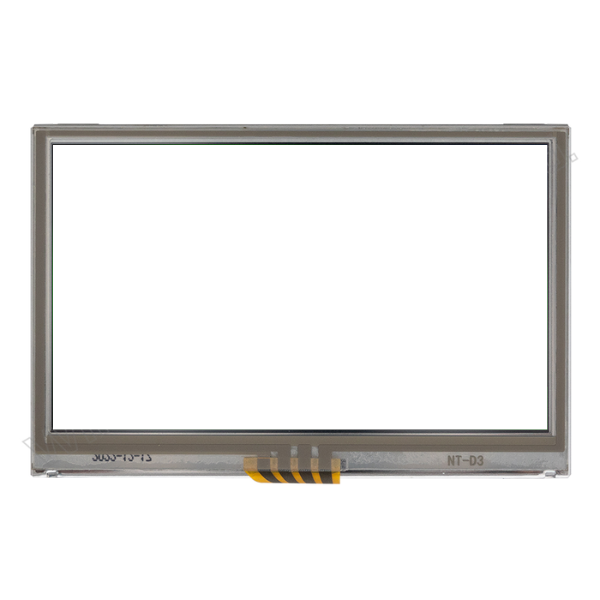

Resistive Touch panel 4.3", O.D. 105.50x67.20mm, 4w, Film-Glass structure, Soldering FPC, Wide Temp- -30/+80°C (suitable for WST WF43A3/W/X families)

General Specification

Item Description
Outline dimension 105.5x67.2mm
View area 98.7x57.5mm
Active area 96.7x55.5mm
Total thickness 1.1±0.15 (With Double side adhesive)mm
Length of FPC 19±0.5mm
Thickness of FPC terminal 0.10±0.05mm


DRAWING

SKU: TST0004R3C1241XXXX06
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€9.70
€7.10
€6.30
€6.10

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€9.70 excl tax

General Specification

Item Description
Outline dimension 105.5x67.2mm
View area 98.7x57.5mm
Active area 96.7x55.5mm
Total thickness 1.1±0.15 (With Double side adhesive)mm
Length of FPC 19±0.5mm
Thickness of FPC terminal 0.10±0.05mm


DRAWING

Products specifications
Brand Winstar
Size 4.3"
Active Area (mm) 96.70x55.50
Constructive Structure GF, 4W
Display Connection FPC for Soldering
Pin Nr. 4
Pin Pitch 1.25mm
Touch Panel IC Controller -
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 4.3"
Active Area (mm) 96.70x55.50
Constructive Structure GF, 4W
Display Connection FPC for Soldering
Pin Nr. 4
Pin Pitch 1.25mm
Touch Panel IC Controller -
Preferred - Not Preferred Preferred
