WF43-480272A3D#0PW1-FC
WF43-480272A3D#0PW1-FC

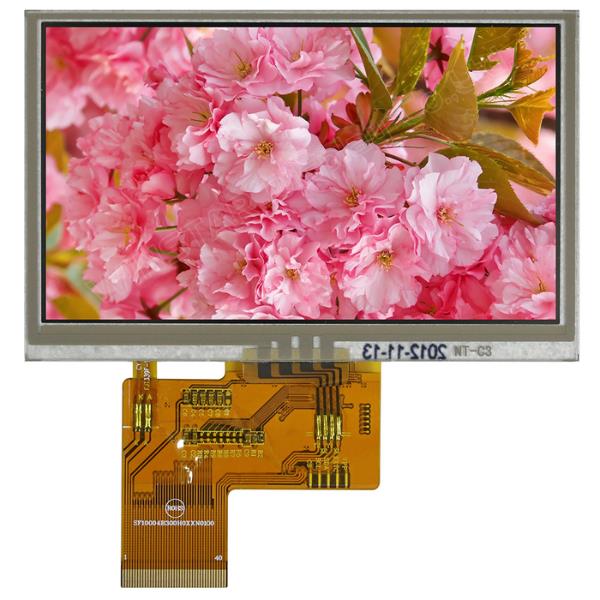

TFT 4.3" 480x272 LCD Panel, Interface RGB, 350cd/m², IPS, Super extended temperature, Resistive touch panel
DESCRIPTION
TFT 4.3" is a color active matrix a-Si LCD Q-Panel, using a-Si (amorphous silicon) TFTs (Thin Film Transistors) as an active switching devices. The module has a 4.28 inch diagonally measured active area with 480x272 resolutions (480 horizontal by 272 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors.

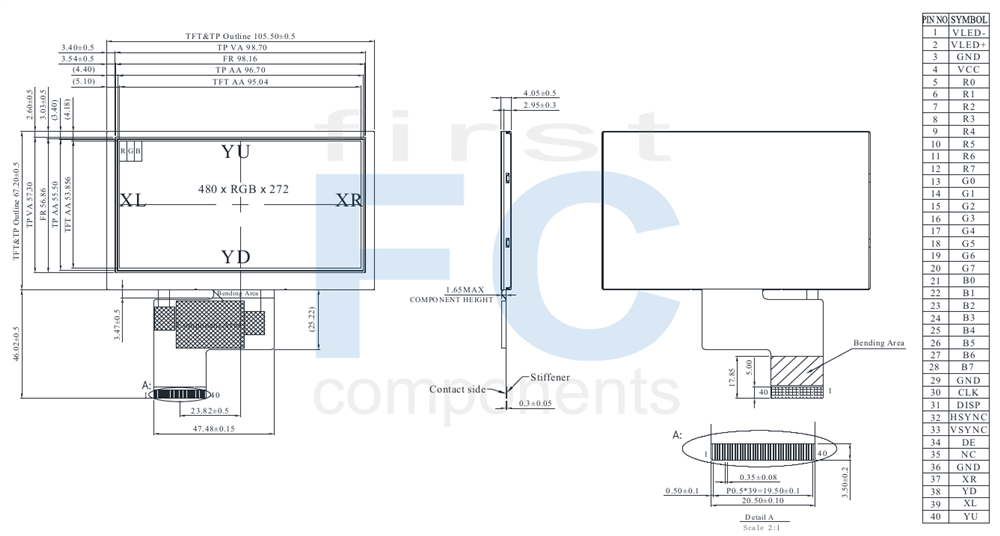

DRAWING
SPECIFICATIONS
Interface
Pin
Symbol
Function
1
VLED-
Power for LED backlight cathode
2
VLED+
Power for LED backlight anode
3
GND
Power ground
4
VCC
Power voltage
5
R0
Red data
6
R1
Red data
7
R2
Red data
8
R3
Red data
9
R4
Red data
10
R5
Red data
11
R6
Red data
12
R7
Red data
13
G0
Green data
14
G1
Green data
15
G2
Green data
16
G3
Green data
17
G4
Green data
18
G5
Green data
19
G6
Green data
20
G7
Green data
21
B0
Blue data
22
B1
Blue data
23
B2
Blue data
24
B3
Blue data
25
B4
Blue data
26
B5
Blue data
27
B6
Blue data
28
B7
Blue data
29
GND
Power ground
30
CLK
Pixel clock input pin (DCLK)
31
DISP
DISP sets the display mode.
DISP
Function Description
L
Standby mode
H
Normal display mode
32
HSYNC
Horizontal sync signal, default is negative polarity
33
VSYNC
Vertical sync signal, defualt is negative polarity
34
DE
Data input enable
35
NC
No connection
36
GND
Power ground
37
XR
Right electrode
38
YD
Down electrode
39
XL
Left electrode
40
YU
Top electrode
General Specifications
Item
Dimension
Unit
Size
4.3
inch
Dot Matrix
480 × RGB × 272 (TFT)
dots
Module dimension
105.5(W) × 67.2(H) × 4.05(D)
mm
Active area
95.04 × 53.856
mm
Pixel pitch
0.198 × 0.198
mm
LCD type
TFT, Normally Black, Transmissive
Viewing Angle
85/85/85/85
Aspect Ratio
16:9
TFT Driver IC
NV3047E or equivalent
TFT Interface
24-bit RGB
Backlight Type
LED, Normally White
With/Without TP
With RTP
Surface
Anti-Glare
Absolute Maximum Ratings
Item
Symbol
Min
Typ
Max
Unit
Operating Temperature
TOP
-30
-
+80
℃
Storage Temperature
TST
-30
-
+80
℃
Electrical Characteristics
Item
Symbol
Min
Typ
Max
Unit
Supply Voltage For LCM
VCC
3.0
3.3
3.6
V
Supply Current For LCM
ICC
-
25
40
mA
SKU:
WF43-480272A3D#0PW1-FC
Brand:
Winstar
Available:
No
Be the first to review this product
Accessory Kit
Display Connector
-- Details Below in 'Related Products' --
CNR5231XXXXXXXXXXX01 [+€2.80]
CNR6231XXXXXXXXXXX00 [+€2.80]
CNR6231XXXXXXXXXXX02 [+€2.80]
MOLEX_54104-4033 [+€3.00]
MOLEX_54132-4033 [+€2.80]
Price Breaks
Quantity
1+
5+
10+
Price
€22.40
€17.90
€14.40
For quantities above
25
pcs pls send your enquiry to
[email protected]
or call +39 0332 1888005
€22.40 excl tax
Overview
Specifications
Download
Contact Us
DESCRIPTION
TFT 4.3" is a color active matrix a-Si LCD Q-Panel, using a-Si (amorphous silicon) TFTs (Thin Film Transistors) as an active switching devices. The module has a 4.28 inch diagonally measured active area with 480x272 resolutions (480 horizontal by 272 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors.
DRAWING
SPECIFICATIONS
Interface
Pin
Symbol
Function
1
VLED-
Power for LED backlight cathode
2
VLED+
Power for LED backlight anode
3
GND
Power ground
4
VCC
Power voltage
5
R0
Red data
6
R1
Red data
7
R2
Red data
8
R3
Red data
9
R4
Red data
10
R5
Red data
11
R6
Red data
12
R7
Red data
13
G0
Green data
14
G1
Green data
15
G2
Green data
16
G3
Green data
17
G4
Green data
18
G5
Green data
19
G6
Green data
20
G7
Green data
21
B0
Blue data
22
B1
Blue data
23
B2
Blue data
24
B3
Blue data
25
B4
Blue data
26
B5
Blue data
27
B6
Blue data
28
B7
Blue data
29
GND
Power ground
30
CLK
Pixel clock input pin (DCLK)
31
DISP
DISP sets the display mode.
DISP
Function Description
L
Standby mode
H
Normal display mode
32
HSYNC
Horizontal sync signal, default is negative polarity
33
VSYNC
Vertical sync signal, defualt is negative polarity
34
DE
Data input enable
35
NC
No connection
36
GND
Power ground
37
XR
Right electrode
38
YD
Down electrode
39
XL
Left electrode
40
YU
Top electrode
General Specifications
Item
Dimension
Unit
Size
4.3
inch
Dot Matrix
480 × RGB × 272 (TFT)
dots
Module dimension
105.5(W) × 67.2(H) × 4.05(D)
mm
Active area
95.04 × 53.856
mm
Pixel pitch
0.198 × 0.198
mm
LCD type
TFT, Normally Black, Transmissive
Viewing Angle
85/85/85/85
Aspect Ratio
16:9
TFT Driver IC
NV3047E or equivalent
TFT Interface
24-bit RGB
Backlight Type
LED, Normally White
With/Without TP
With RTP
Surface
Anti-Glare
Absolute Maximum Ratings
Item
Symbol
Min
Typ
Max
Unit
Operating Temperature
TOP
-30
-
+80
℃
Storage Temperature
TST
-30
-
+80
℃
Electrical Characteristics
Item
Symbol
Min
Typ
Max
Unit
Supply Voltage For LCM
VCC
3.0
3.3
3.6
V
Supply Current For LCM
ICC
-
25
40
mA
Products specifications
Brand
Winstar
Size
4.3"
Resolution
480x272
Active Area (mm)
95.04x53.85
Color
Full Color
Display Interface
RGB
Display IC
No
View Angle
IPS
Frame
No
Touch Panel
Resistive
O. Temperature (°C)
-30~80
Display Connection
FPC for ZIF Connector
Pin Nr.
40
Pin Pitch
0.5mm
Preferred - Not Preferred
Preferred
Download
Log in
or
Register
to downloads PDF.
Your name
Your email
Enquiry
Products specifications
Brand
Winstar
Size
4.3"
Resolution
480x272
Active Area (mm)
95.04x53.85
Color
Full Color
Display Interface
RGB
Display IC
No
View Angle
IPS
Frame
No
Touch Panel
Resistive
O. Temperature (°C)
-30~80
Display Connection
FPC for ZIF Connector
Pin Nr.
40
Pin Pitch
0.5mm
Preferred - Not Preferred
Preferred
Related products
WF43-480272A3D#0PW0-FC
TFT 4.3" 480x272 LCD Panel, Interface RGB, 500cd/m², IPS, Super extended temperature, No touch
From €9.50 excl tax
WF43-480272A3D#0SPW1-FC
TFT 4.3" 480x272 LCD Panel, Interface RGB, High Brightness 700cd/m², IPS, Super extended temperature, Resistive touch panel
From €16.10 excl tax
TST0004R3C1241XXXX06
Resistive Touch panel 4.3", O.D. 105.50x67.20mm, 4w, Film-Glass structure, Soldering FPC, Wide Temp- -30/+80°C (suitable for WST WF43A3/W/X families)
From €6.10 excl tax
CNR5231XXXXXXXXXXX01
ZIF Connector 40 pins, 0.5mm pitch, Top contact
From €2.40 excl tax
CNR6231XXXXXXXXXXX00
ZIF Connector 40 pins, 0.5mm pitch, Bottom contact
From €2.40 excl tax
CNR6231XXXXXXXXXXX02
ZIF Connector 40 pins, 0.5mm pitch, Bottom contact
From €2.40 excl tax
MOLEX_54104-4033
ZIF Connector 40 pins, 0.5mm pitch, Top contact
From €2.00 excl tax
MOLEX_54132-4033
ZIF Connector 40 pins, 0.5mm pitch, Bottom contact
From €1.90 excl tax
Categories
Display Solutions
TFT LCD
TFT Panel
TFT Bar
TFT Round
TFT + Control Board
TFT SPI-Arduino
TFT HDMI
TFT Monochrome
Eval Board TFT
Industrial Monitor
Touch Panel
OLED
E-Paper & W-E
Graphic LCD
Character LCD
LCD Panel
LED Display
Accessories
Custom Display Solutions
Value Added Solutions
Intelligent Displays
Embedded Systems
Wireless & IOT
Recently viewed
WF57-320240A2P#004-FC
WEH001602AGPP3N00000
WG12864E1-TFH-V#N110
WH0802A-NGG-ET#
Cookies help us deliver our services. By using our services, you agree to our use of cookies.
OK
Learn more
Log in or Register to proceed
